6393 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

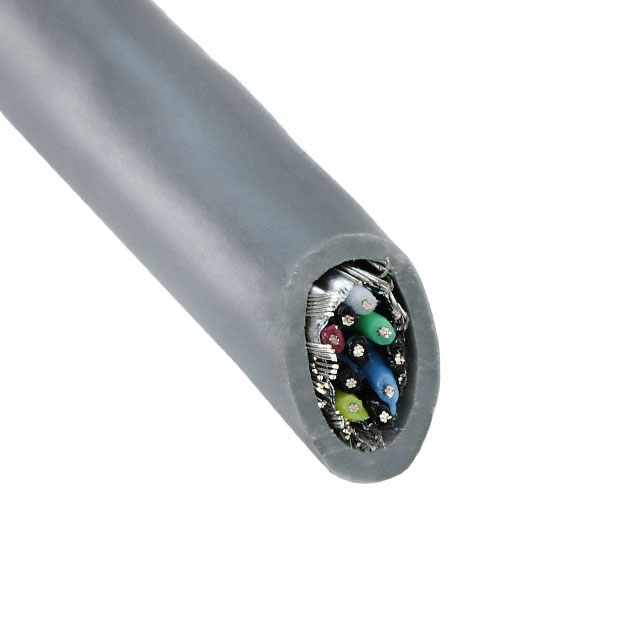

MULTI-PAIR 10COND 28AWG 1000'
| Part | Shield Coverage | Shield Material | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket Color | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Voltage | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Drain Wire | 0.035 in | 0.889 mm | 10 | Slate | Polyethylene (PE) | 0.252 in | 6.4 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | 304.8 m | 1000 ft | 28 AWG | 7 | 36 AWG | Braid Foil | UL Style 2960 | Multi-Pair |
ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Drain Wire | 0.035 in | 0.889 mm | 10 | Slate | Polyethylene (PE) | 0.252 in | 6.4 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft | 28 AWG | 7 | 36 AWG | Braid Foil | UL Style 2960 | Multi-Pair |
