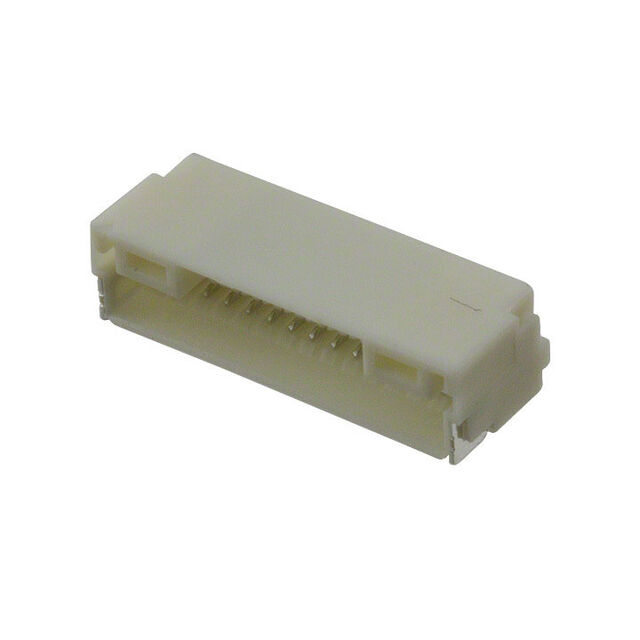

SM15B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 15POS 1MM
| Part | Voltage Rating | Insulation Color | Fastening Type | Mounting Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Insulation Material | Contact Material | Material Flammability Rating | Style | Connector Type | Features | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions | Shrouding | Number of Rows | Number of Positions Loaded | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | Natural | Latch Holder | Right Angle Surface Mount | Solder | 85 °C | -25 °C | Male Pin | Nylon Polyamide (PA) | Copper Alloy | UL94 V-0 | Board to Cable/Wire | Header | Solder Retention | 4.4 mm | 0.173 in | 1 mm | 0.039 in | 15 | Shrouded - 4 Wall | 1 | All | Tin |
