MAX77756 Series

Catalog

POWER MANAGEMENT IC DEVELOPMENT TOOLS EVALUATION KIT FOR MAX77756

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Current - Output	Voltage - Output	Main Purpose	Contents	Frequency - Switching	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Number of Outputs	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Output Configuration	Topology	Voltage - Input (Min) [Min]

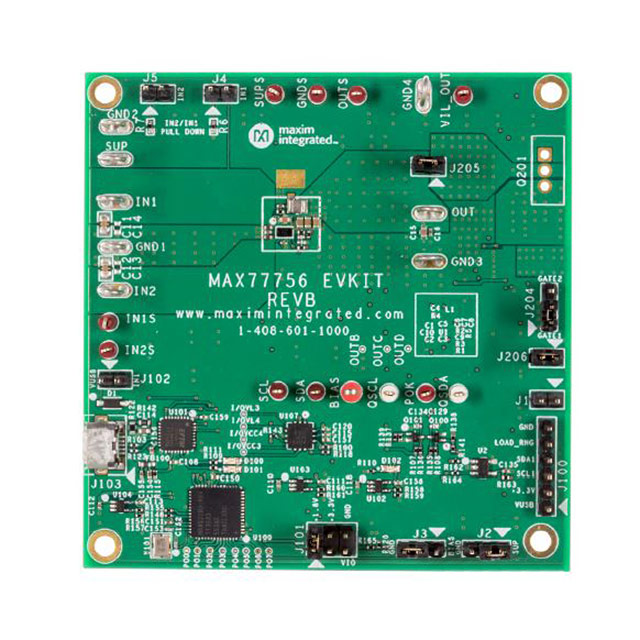

Analog Devices Inc./Maxim Integrated MAX77756EVKIT#	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	MAX77756	24 V	3 V	Buck	500 mA	3.3 V	DC/DC Step Down	Board(s)

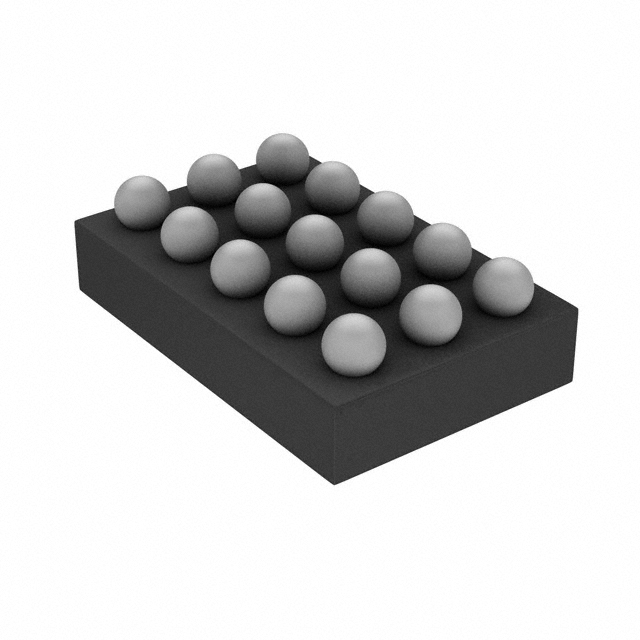

Analog Devices Inc./Maxim Integrated MAX77756BEWL+G7									500 mA				1 MHz	Surface Mount	24 V	15-WFBGA WLBGA	Step-Down	85 C	-40 ¯C	3.3 V	1	1.42	2.33	15-WLP	Positive	Buck	3 V
Analog Devices Inc./Maxim Integrated MAX77756AEWL+T
Analog Devices Inc./Maxim Integrated MAX77756BEWL+T									500 mA				1 MHz	Surface Mount	24 V	15-WFBGA WLBGA	Step-Down	85 C	-40 ¯C	3.3 V	1	1.42	2.33	15-WLP	Positive	Buck	3 V
Analog Devices Inc./Maxim Integrated MAX77756DEWL+T
Analog Devices Inc./Maxim Integrated MAX77756CEWL+T
Analog Devices Inc./Maxim Integrated MAX77756BEWL+TG7									500 mA				1 MHz	Surface Mount	24 V	15-WFBGA WLBGA	Step-Down	85 C	-40 ¯C	3.3 V	1	1.42	2.33	15-WLP	Positive	Buck	3 V
Analog Devices Inc./Maxim Integrated MAX77756BEWL+									500 mA				1 MHz	Surface Mount	24 V	15-WFBGA WLBGA	Step-Down	85 C	-40 ¯C	3.3 V	1	1.42	2.33	15-WLP	Positive	Buck	3 V
