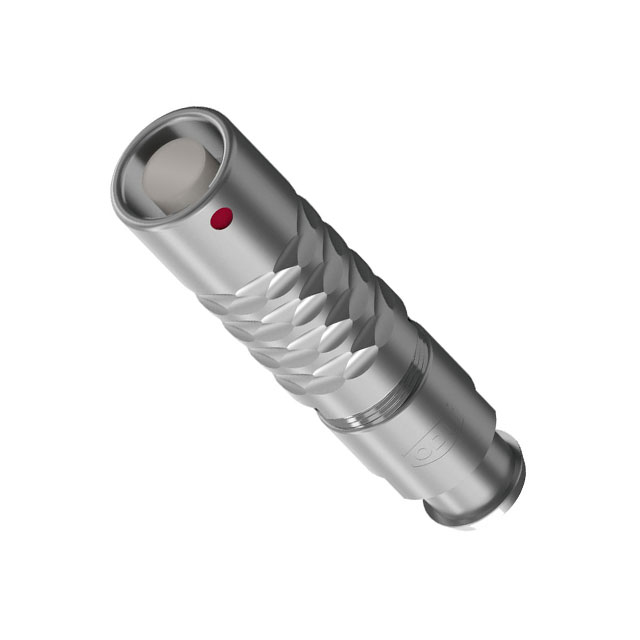

K21L0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Mounting Type | Shell Material | Color | Number of Positions | Fastening Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Insert Material | Applications | Primary Material | Orientation | Ingress Protection | Features | Shell Size - Insert | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Contact Finish - Mating | Current Rating (Amps) | Contact Material | Connector Type | Backshell Material, Plating | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Brass | Silver | 8 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 7 mm 7.7 mm | 0.303 in | 0.276 " | Gold | 7.5 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | ||||
Free Hanging (In-Line) | Brass | Silver | 14 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 0.126 in 3.2 mm | 0.079 in 2 mm | Gold | 4 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | |||||
Free Hanging (In-Line) | Brass | Silver | 10 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 0.244 " | 0.197 in | Gold | 4 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | 5 mm | 6.2 mm | |||
Free Hanging (In-Line) | Brass | Silver | 5 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 0.087 " 2.2 mm | 0.059 " 1.5 mm | Gold | 7.5 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | |||||
Free Hanging (In-Line) | Brass | Silver | Push-Pull | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 0.244 " | 0.197 in | Gold | 12 Amps | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | 5 mm | 6.2 mm | |||||
Free Hanging (In-Line) | Brass | Silver | 4 | Push-Pull | Unshielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | Gold | 7.5 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | 500 V | ||||||
Free Hanging (In-Line) | Brass | Silver | 2 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 4 mm 5.2 mm | 0.205 in | 0.157 in | Gold | 12 Amps | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | ||||
Free Hanging (In-Line) | Brass | Silver | 5 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 7 mm 7.7 mm | 0.303 in | 0.276 " | Gold | 7.5 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | ||||
Free Hanging (In-Line) | Brass | Silver | 6 | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | Gold | 7.5 A | Brass | Receptacle Female Sockets | Brass Chrome over Nickel | |||||||
Free Hanging (In-Line) | Brass | Silver | Push-Pull | Shielded | 120 °C | -40 C | Chrome over Nickel | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | IP50 - Dust Protected | Backshell Strain Relief | 1 | 0.126 in 3.2 mm | 0.079 in 2 mm | Gold | 12 Amps | Brass | Receptacle Female Sockets | Brass Chrome over Nickel |
