9540 Series

Catalog

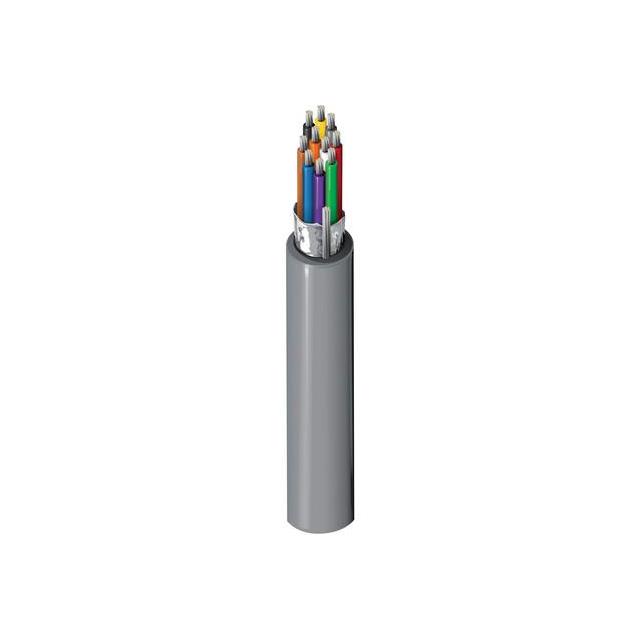

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 10 CONDUCTOR, 24 AWG, 100 FT, 30.48 M

Part	Shield Material	Shield Coverage	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Material	Conductor Insulation	Shield Type	Features	Jacket Color	Length	Length	Voltage	Ratings
Belden Inc. 9540 060100	Aluminum	100 %	Multi-Conductor	80 °C	-30 ░C	24 AWG	Copper Tinned	0.244 in	6.2 mm	10	0.813 mm	0.032 in	100 ft	30.5 m	7	32 AWG	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	Chrome
Belden Inc. 9540 0601000	Aluminum	100 %	Multi-Conductor	80 °C	-30 ░C	24 AWG	Copper Tinned	0.244 in	6.2 mm	10	0.813 mm	0.032 in			7	32 AWG	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	Chrome	304.8 m	1000 ft
Belden Inc. 9540 060U500	Aluminum	100 %	Multi-Conductor	80 °C	-30 ░C	24 AWG	Copper Tinned	0.244 in	6.2 mm	10	0.813 mm	0.032 in			7	32 AWG	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	Chrome	152.4 m	500 ft	300 VDC	UL Style 2464
Belden Inc. 9540 060U1000	Aluminum	100 %	Multi-Conductor	80 °C	-30 ░C	24 AWG	Copper Tinned	0.244 in	6.2 mm	10	0.813 mm	0.032 in			7	32 AWG	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	Chrome	304.8 m	1000 ft	300 VDC	UL Style 2464
Belden Inc. 9540 060500	Aluminum	100 %	Multi-Conductor	80 °C	-30 ░C	24 AWG	Copper Tinned	0.244 in	6.2 mm	10	0.813 mm	0.032 in			7	32 AWG	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	Chrome	152.4 m	500 ft
