MFS201N Series

Catalog

SLIDE SWITCH, DPDT, 0.3A, 10VDC, TH ROHS COMPLIANT: YES

Part	Switch Travel	Operating Force	Electrical Life	Termination Style	Voltage Rating - DC	Actuator Type	Switch Function	Circuit	Contact Timing	Actuator Length [x]	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force [Min]	Operating Force [Max]	Voltage Rating - AC

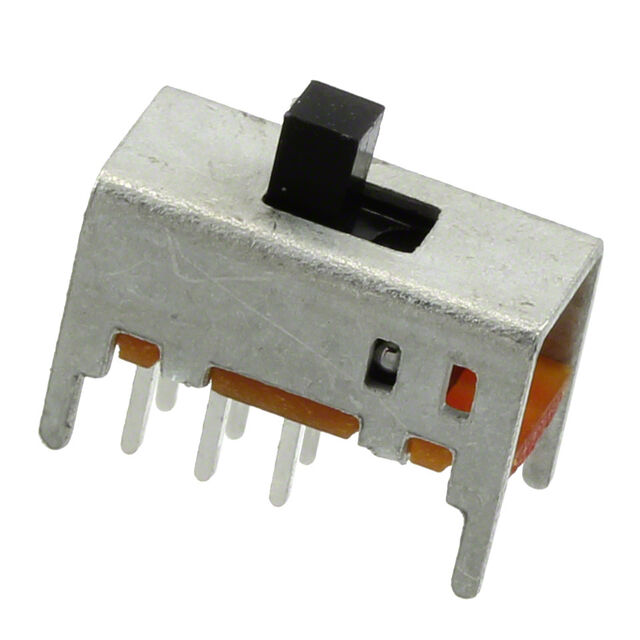

Nidec Components Corporation MFS201N-19-Z	2 mm	0.25 kgf	5000 Steps	PC Pin	30 V	Standard	On-On	DPDT	Shorting (MBB)	2.5 mm	Through Hole	300 mA	70 °C	-10 °C

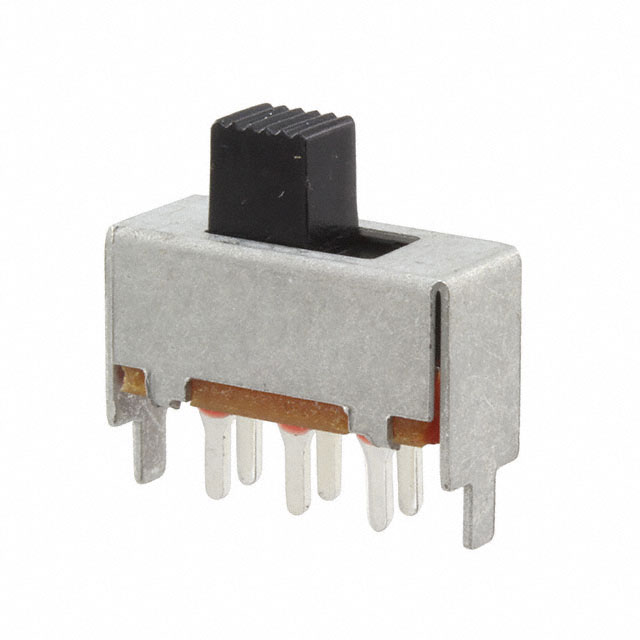

Nidec Components Corporation MFS201N-9-Z	3 mm		5000 Steps	PC Pin	30 V	Standard	On-On	DPDT	Non-Shorting (BBM)	5 mm	Through Hole	1 A	70 °C	-10 °C	150 gf	450 gf	125 V
Nidec Components Corporation MFS201N-16-Z	3 mm	300 gf	5000 Steps	PC Pin	30 V	Standard	On-On	DPDT	Non-Shorting (BBM)	7.1 mm	Right Angle Through Hole	1 A	70 °C	-10 °C			125 V

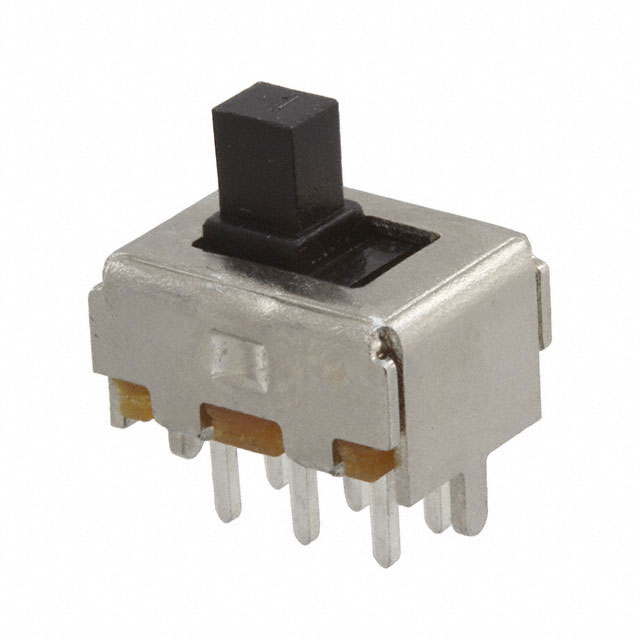

Nidec Components Corporation MFS201N-21-Z	2 mm	0.25 kgf	5000 Steps	PC Pin	30 V	Standard	On-On	DPDT	Non-Shorting (BBM)	3.4 mm	Through Hole	300 mA	70 °C	-10 °C
