22_BNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

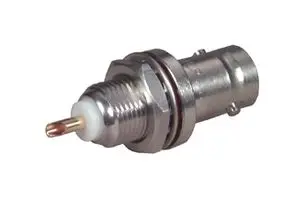

RF COAX CONN, BNC, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Voltage Rating | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Center Contact Plating | Impedance | Contact Termination | Connector Style | Shield Termination | Mounting Type | Connector Type | Frequency - Max [Max] | Number of Ports | Fastening Type | Center Contact Material | Housing Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 V | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | White Bronze | Gold | 50 Ohms | Solder Cup | BNC | Solder | Panel Mount | Female Socket Jack | 4 GHz | 1 | Bayonet Lock | Beryllium Copper | Silver | Bulkhead - Rear Side Nut |
 Huber+Suhner, Inc. | 500 V | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | White Bronze | Gold | 50 Ohms | Solder Cup | BNC | Solder | Panel Mount | Female Socket Jack | 4 GHz | 1 | Bayonet Lock | Beryllium Copper | Silver | Bulkhead - Rear Side Nut |
