R463F Series

Manufacturer: KEMET

Catalog

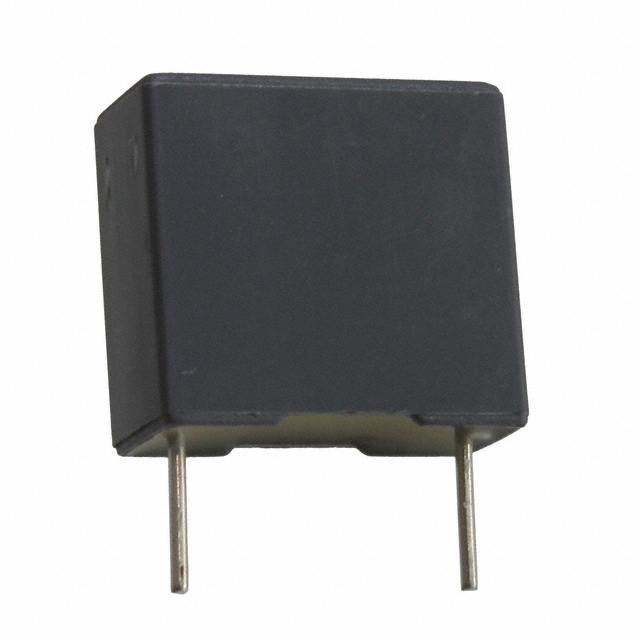

CAP FILM 0.015UF 20% 630VDC RAD

Part	Termination	Voltage Rating - AC	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Applications	Package / Case	Ratings	Dielectric Material	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R463F215040N0M	PC Pins	310 V	15000 pF	20 %	-40 C	110 °C	13 mm	4 mm	0.512 "	0.157 "	0.358 in	9.1 mm	EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm
KEMET R463F2470JBH1K	PC Pins	310 V		10 %	-40 C	125 °C						12.1 mm	EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.476 "
KEMET R463F247040N0M	PC Pins	310 V		20 %	-40 C	110 °C	13 mm	5 mm	0.512 "	0.197 "			EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.437 in	11.1 mm
KEMET R463F310050M1M	PC Pins	310 V	100000 pF	20 %	-40 C	110 °C						12.1 mm	EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.476 "
KEMET R463F2330DQH1K	PC Pins	310 V	0.033 çF	10 %	-40 C	125 °C	13 mm	5 mm	0.512 "	0.197 "			EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.437 in	11.1 mm
KEMET R463F2220DQH1K	PC Pins	310 V	0.022 µF	10 %	-40 C	110 °C							EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm
KEMET R463F2100DQN0M	PC Pins	310 V	10000 pF	20 %	-40 C	110 °C	13 mm	4 mm	0.512 "	0.157 "	0.358 in	9.1 mm	EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm
KEMET R463F222000N0K	PC Pins	310 V	0.022 µF	10 %	-40 C	110 °C	13 mm	4 mm	0.512 "	0.157 "	0.358 in	9.1 mm	EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm
KEMET R463F210000H1K	PC Pins	310 V	10000 pF	10 %	-40 C	125 °C	13 mm	5 mm	0.512 "	0.197 "			EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.437 in	11.1 mm
KEMET R463F233040M1M	PC Pins	310 V	0.033 çF	20 %	-40 C	110 °C	13 mm	5 mm	0.512 "	0.197 "			EMI RFI Suppression	Radial	X2	Polypropylene (PP) Metallized	Through Hole	0.394 in	10 mm	0.437 in	11.1 mm
