280 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Part	Stripping Length [Min]	Stripping Length [Max]	Material - Insulation	Number of Levels	Terminal - Width [y]	Current - IEC	Color	Type	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	For Use With/Related Products	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

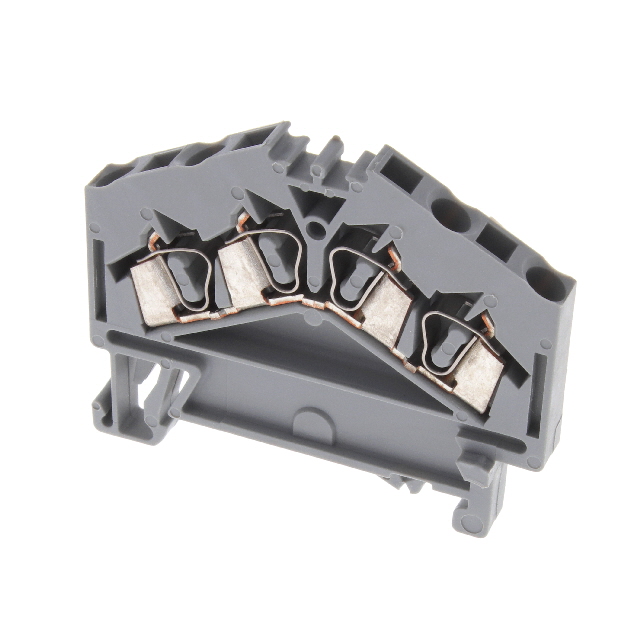

WAGO Corporation 280-646	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Gray	Feed Through	Push In Spring	4	2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG

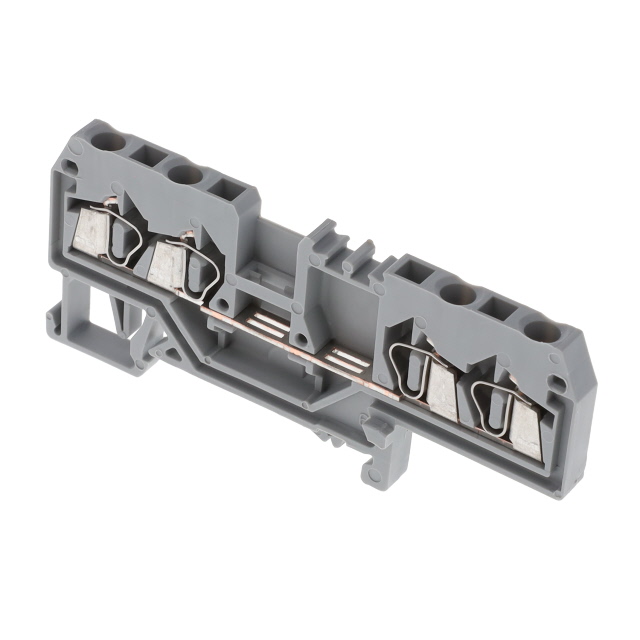

WAGO Corporation 280-633	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	20 A	Gray	Feed Through	Push In Spring	4	2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG

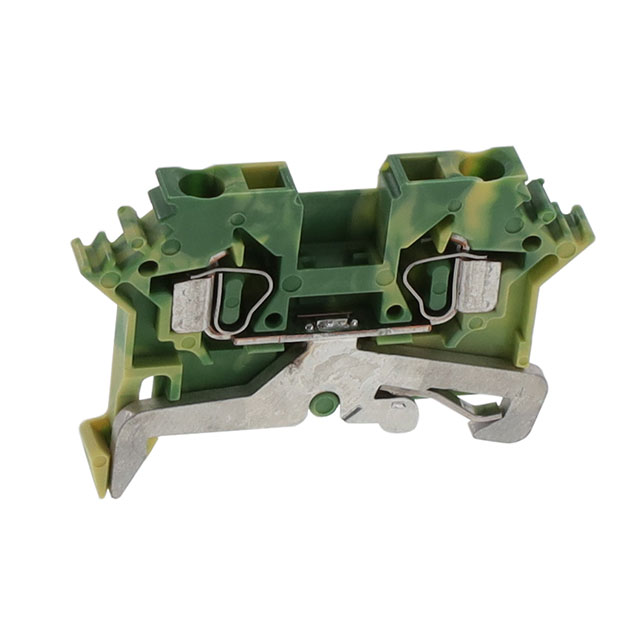

WAGO Corporation 280-607	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm		Green Yellow	Ground Earth	Push In Spring	2	2.5 mm²	0.08 mm²		28 AWG	12 AWG

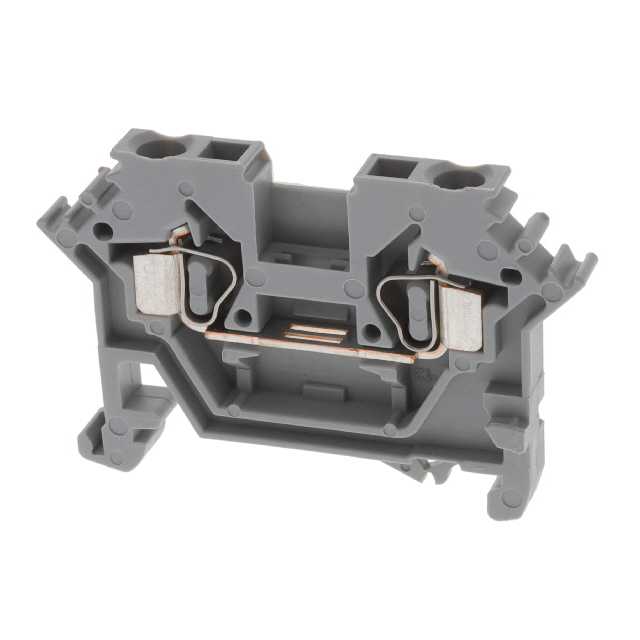

WAGO Corporation 280-601	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Gray	Feed Through	Push In Spring	2	2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG

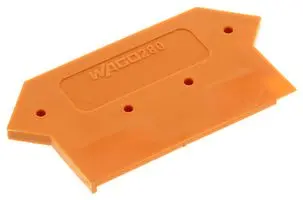

WAGO Corporation 280-331								End Plate								Terminal Blocks

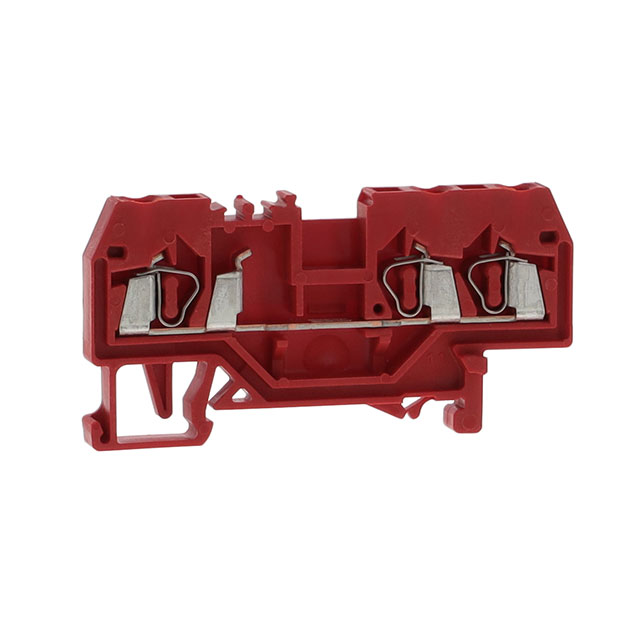

WAGO Corporation 280-653	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Red	Feed Through	Push In Spring		2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG

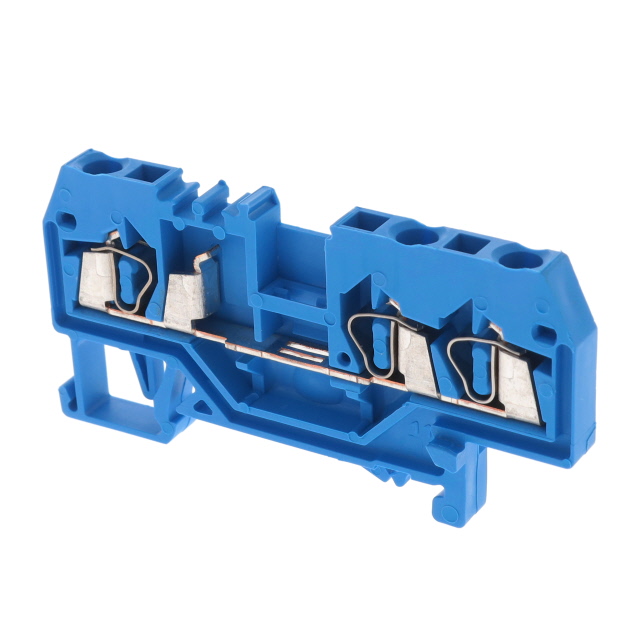

WAGO Corporation 280-684	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Blue	Feed Through	Push In Spring		2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG		2.5 mm˛	0.08 mm˛

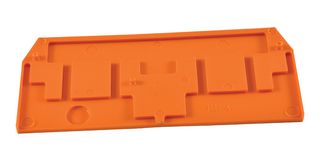

WAGO Corporation 280-326								End Plate								Terminal Blocks
WAGO Corporation 280-651	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Blue	Feed Through	Push In Spring		2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG		2.5 mm˛	0.08 mm˛

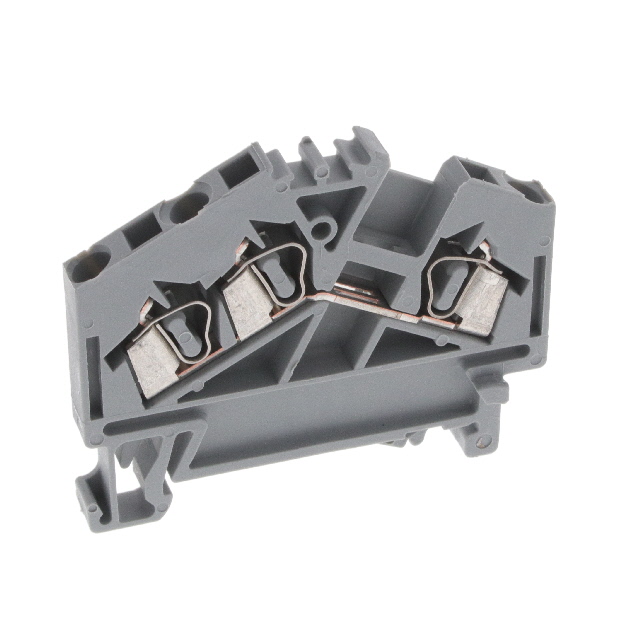

WAGO Corporation 280-641	8 mm	9 mm	Nylon 6/6 Polyamide (PA66)	1	5 mm	24 A	Gray	Feed Through	Push In Spring		2.5 mm²	0.08 mm²	800 V	28 AWG	12 AWG		2.5 mm˛	0.08 mm˛
