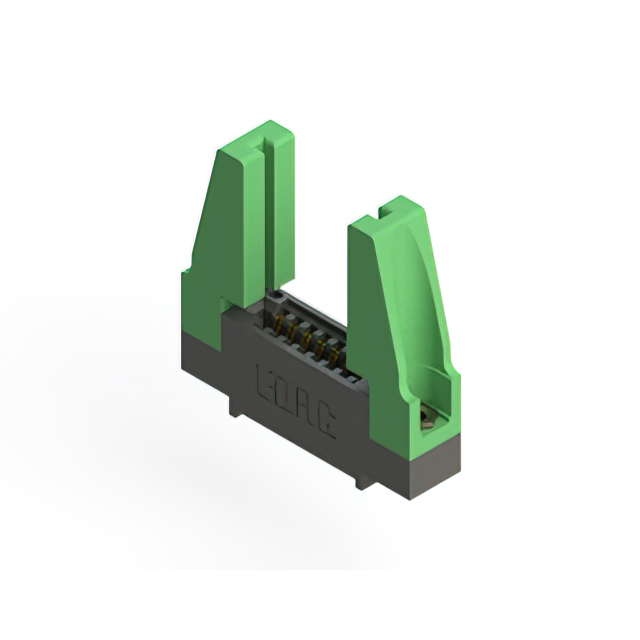

395-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Card Type | Contact Material | Read Out | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Threaded Insert Top Mount Opening | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Solder | Cantilever | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 0.128 " | 3.25 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Solder | Cantilever | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Threaded Insert Top Mount Opening | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Solder | Cantilever | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 0.128 " | 3.25 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Threaded Insert Top Mount Opening | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 8 | -40 C | 105 ░C | Solder | Cantilever | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.1 " | 2.54 mm | Non Specified - Single Edge | Copper Alloy | Single | 1 | 0.25 Ám | 10 Áin | Black | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Female | 8 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 8 | -40 C | 105 ░C | Wire Wrap | Cantilever |
