RIA15 Series
Manufacturer: Endress+Hauser
Beta
⌘K
DISPLAY PANEL 4-20MA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Measuring Type | Mounting Type | Measuring Range [Min] | Measuring Range [Max] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Display Type | Voltage - Supply | Termination Style | Number of Characters Per Row | Ingress Protection | Display Characters - Height [z] | Display Characters - Height [z] | Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

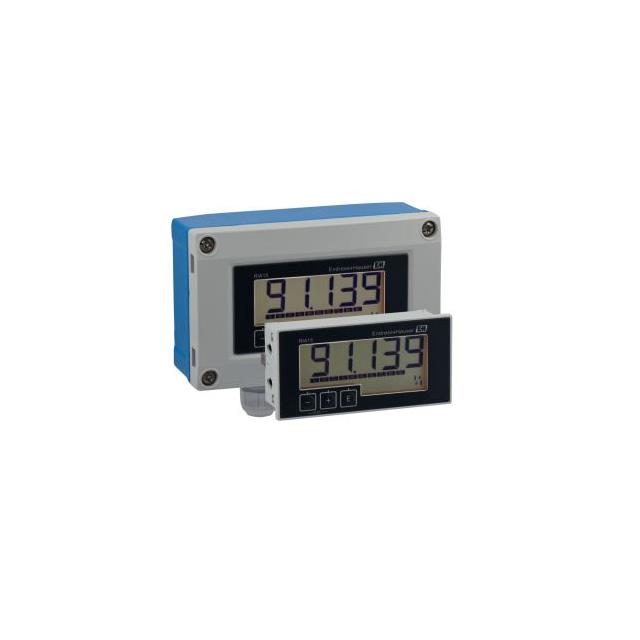

 Endress+Hauser | 60 °C | -40 C | Current | DIN Rail | 4 mA | 20 mA | 91.95 mm | 44.96 mm | Backlight LCD - Black Characters | Loop Power | Connector | 5 | IP65 - Dust Tight Water Resistant | 0.669 " | 17 mm | Ammeter | ||

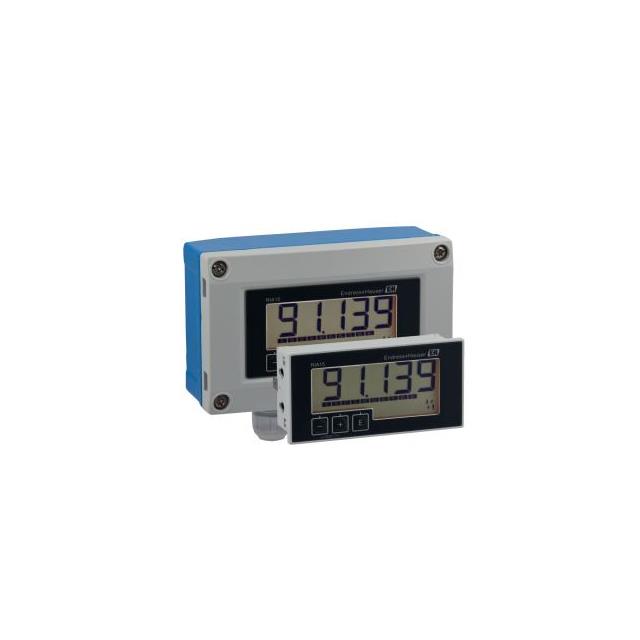

 Endress+Hauser | 60 °C | -40 C | Current | DIN Rail | 4 mA | 20 mA | 91.95 mm | 44.96 mm | Backlight LCD - Black Characters | Loop Power | Connector | 5 | IP65 - Dust Tight Water Resistant | 0.669 " | 17 mm | Ammeter | 1.9 VDC | 2.9 VDC |

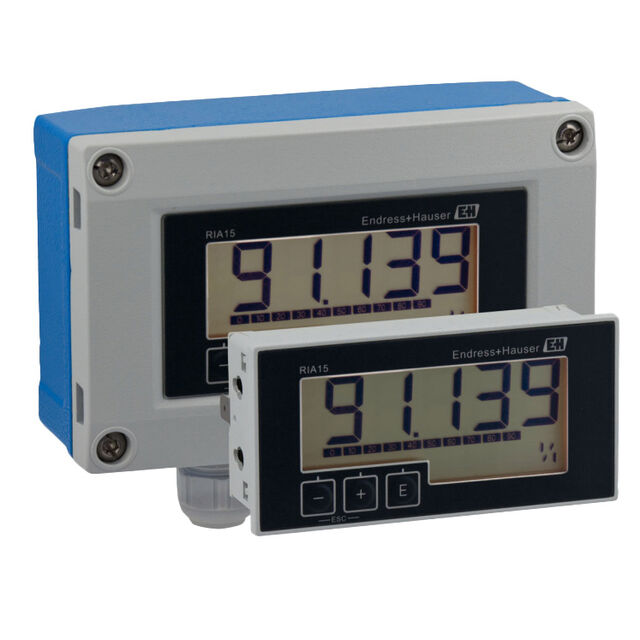

 Endress+Hauser | 60 °C | -40 C | Current | Panel Mount | 4 mA | 20 mA | 91.95 mm | 44.96 mm | Backlight LCD - Black Characters | Loop Power | Connector | 5 | IP65 - Dust Tight Water Resistant | 0.669 " | 17 mm | Ammeter | ||

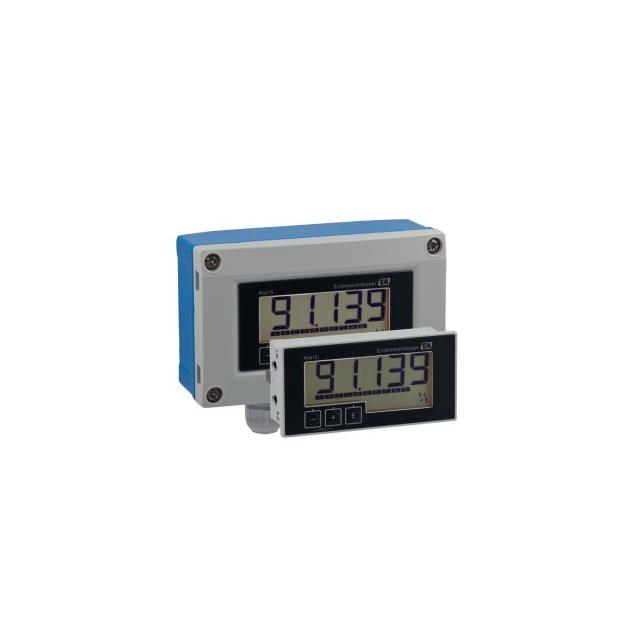

 Endress+Hauser | 60 °C | -40 C | Current | DIN Rail | 4 mA | 20 mA | 91.95 mm | 44.96 mm | Backlight LCD - Black Characters | Loop Power | Connector | 5 | IP65 - Dust Tight Water Resistant | 0.669 " | 17 mm | Ammeter |
