2374787 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

EP3.96 POTTED HEADER,GWT,7P

Part	Termination	Mounting Type	Contact Shape	Current Rating (Amps)	Connector Type	Number of Rows	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Material	Pitch - Mating	Pitch - Mating	Voltage Rating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Insulation Material	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions
TE Connectivity Raychem Cable Protection 2374787-7	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall	7
TE Connectivity Raychem Cable Protection 2374787-5	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 2374787-8	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall	8

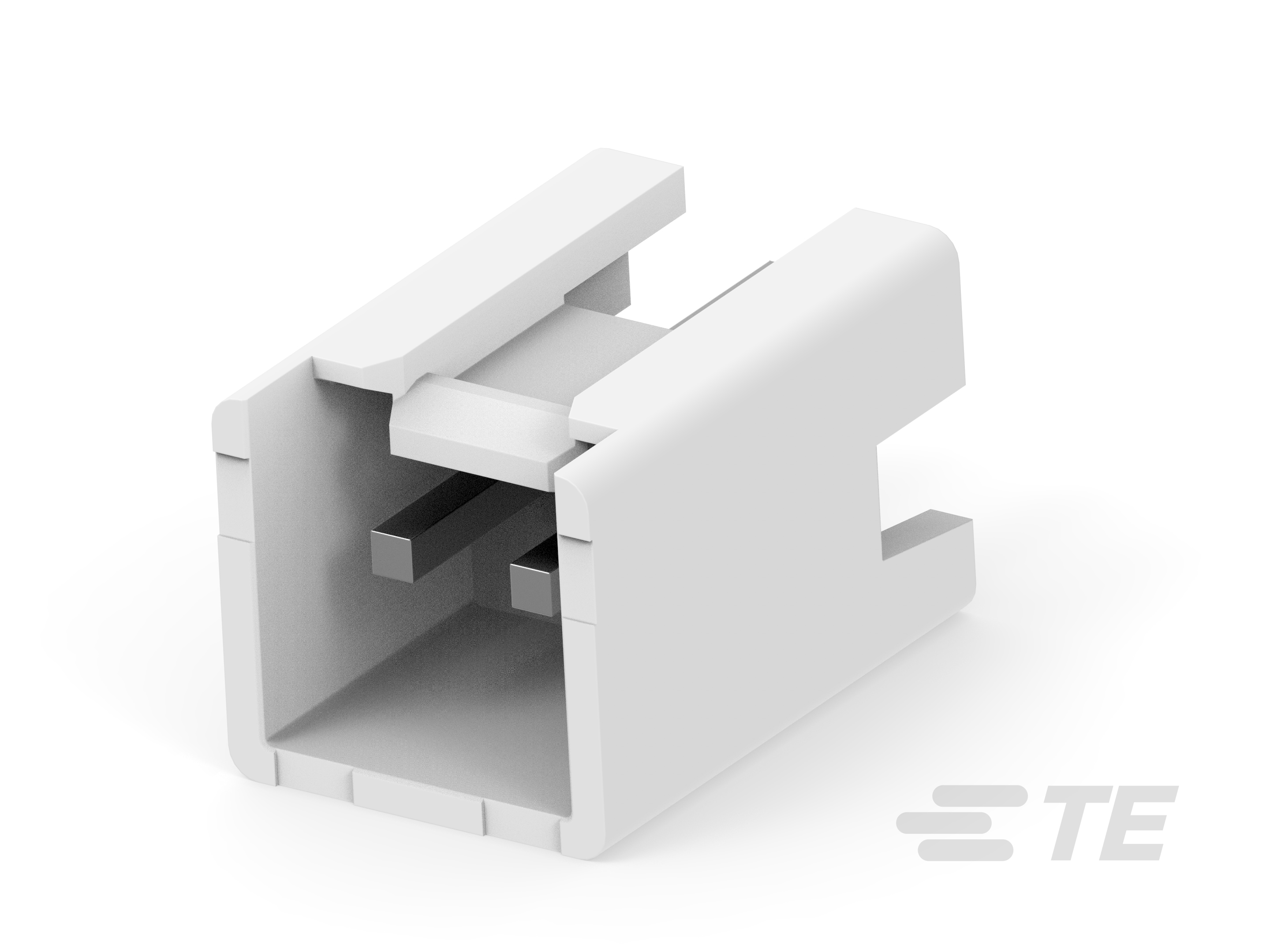

TE Connectivity Raychem Cable Protection 2374787-2	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall	2
TE Connectivity Raychem Cable Protection 2374787-3	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 2374787-4	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall	4
TE Connectivity Raychem Cable Protection 2374787-6	Solder	Through Hole	Square	12.3 A	Header	1	All	Male Pin	78.7 µin	2 µm	Board to Cable/Wire	Copper Alloy	0.156 in	3.96 mm	600 VAC	Locking Ramp	2 çm	78.7 çin	105 ░C	-55 °C	UL94 V-0	Resin	Natural	0.622 in	15.8 mm	Tin	6.7 mm	0.264 in	3.5 mm	0.138 in	Shrouded - 4 Wall	6
