A18KB Series

Catalog

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Actuator Material	Electrical Life	Switch Function	Termination Style	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Mounting Type	Bushing Thread	Features	Illumination	Actuator Type	Voltage Rating - DC	Voltage Rating - AC
NKK Switches A18KB-AH	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C	9.4 mm	Through Hole	Unthreaded Square	Gray Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
NKK Switches A18KB-BH	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C		Through Hole	Unthreaded Square	Gray Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V

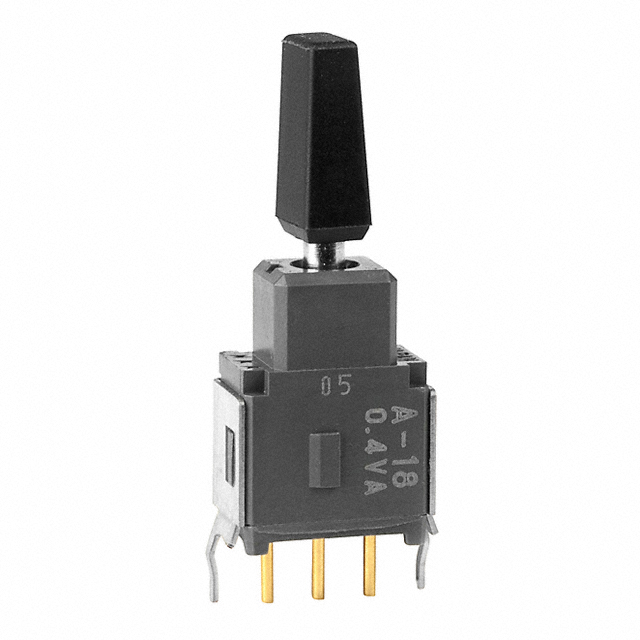

NKK Switches A18KB1-AA	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C	9.4 mm	Through Hole	Unthreaded Square	Black Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
NKK Switches A18KB1-BH	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C		Through Hole	Unthreaded Square	Gray Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
NKK Switches A18KB1-AB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C	9.4 mm	Through Hole	Unthreaded Square	White Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
NKK Switches A18KB1-BB	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C		Through Hole	Unthreaded Square	White Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
NKK Switches A18KB1-BA	Glass Filled Nylon Polyamide (PA)	50000 Cycles	Mom-Off-Mom	PC Pin	SPDT	0.4 VA	85 °C	-30 ░C		Through Hole	Unthreaded Square	Black Actuator	Non-Illuminated	Snap On Paddle	28 V	28 V
