MC25MOR Series

Catalog

SW CAPACITIVE SPST-NO 10MA 12V

Part	Electrical Life	Mechanical Life	Ingress Protection	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Color - Actuator/Cap	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Type	Actuator Type	Switch Function	Termination Style	Illumination Voltage (Nominal)
BULGIN LIMITED MC25MORGR	50 000 000	50000000 Cycles	IP68 IP69K	Panel Mount Front	SPST-NO	55 °C	-25 °C	25.2 mm	Green/Red LED	Red	12 V	500 mA	No Marking	Capacitive Illuminated	Button Flush Round	Off-Mom	Wire Leads

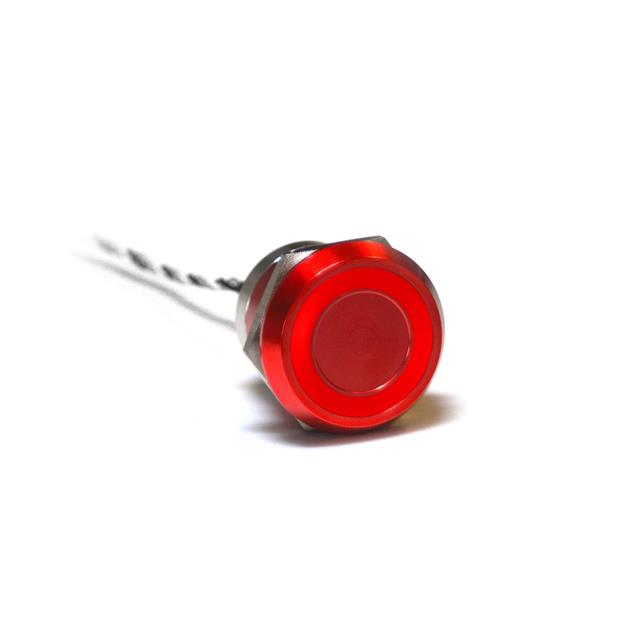

BULGIN LIMITED MC25MORRD	50 000 000	50000000 Cycles	IP68 IP69K	Panel Mount Front	SPST-NO	55 °C	-25 °C	25.2 mm	LED Red	Red	24 V	500 mA		Capacitive Illuminated	Button Flush Round	Off-Mom	Wire Leads	12 VDC
BULGIN LIMITED MC25MORRG	50 000 000	50000000 Cycles	IP68 IP69K	Panel Mount Front	SPST-NO	55 °C	-25 °C	25.2 mm	Green/Red LED	Red	12 V	500 mA	No Marking	Capacitive Illuminated	Button Flush Round	Off-Mom	Wire Leads
