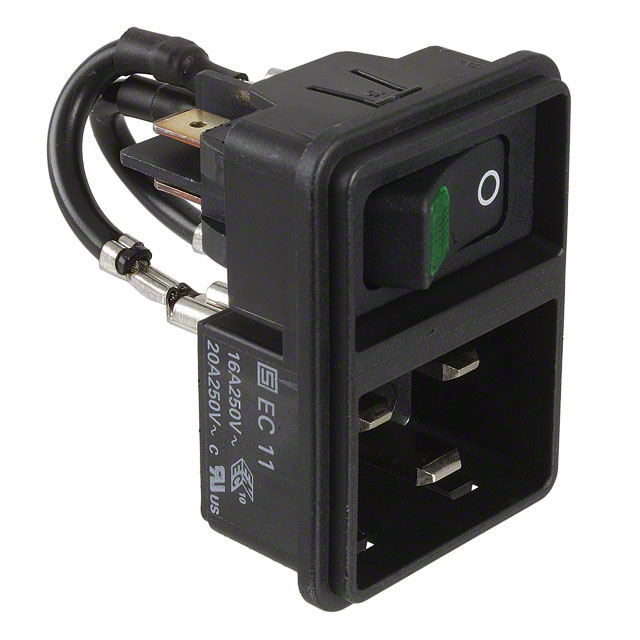

EC11.0031 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 20A SWITCH ST 1 PORT
| Part | Current Rating - Appliance Inlet | Connector Style | Material Flammability Rating | Mounting Type | Accomodates a Fuse | Termination | Termination | Termination | Ingress Protection | Voltage Rating - Appliance Inlet | Filter Type | Connector Type | Approval Agency | Switch Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 10 A 16 A | IEC 320-C20 | UL94 V-0 | Flange Panel Mount | 6.3 mm | Quick Connect | 0.25 " | IP40 | 250 VAC | Unfiltered - Commercial | Receptacle Male Blades - Module | cULus ENEC | Switch On-Off | 32.5 mm | 46.5 mm | |||
 SCHURTER Inc. | 10 A 16 A | IEC 320-C20 | UL94 V-0 | Panel Mount Snap-In | 6.3 mm | Quick Connect | 0.25 " | IP40 | 250 VAC | Unfiltered - Commercial | Receptacle Male Blades - Module | cULus ENEC | Switch On-Off | 32.5 mm | 46.5 mm | 0.098 in | 2.5 mm | |
 SCHURTER Inc. | 10 A 16 A | IEC 320-C20 | UL94 V-0 | Panel Mount Snap-In | 6.3 mm | Quick Connect | 0.25 " | IP40 | 250 VAC | Unfiltered - Commercial | Receptacle Male Blades - Module | cULus ENEC | Switch On-Off | 32.5 mm | 46.5 mm | 0.059 in | 1.5 mm |
