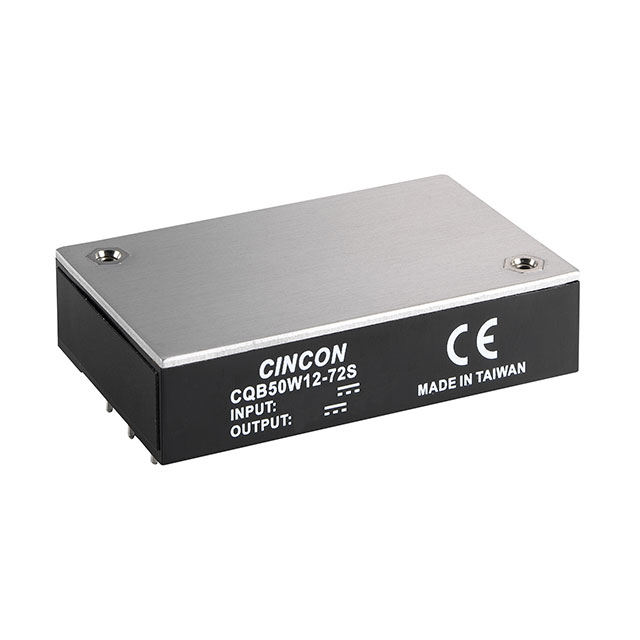

CQB50W12 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE

Part	Type	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Package / Case	Supplier Device Package	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Input (Min) [Min]	Mounting Type	Control Features	Standard Number	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [y]

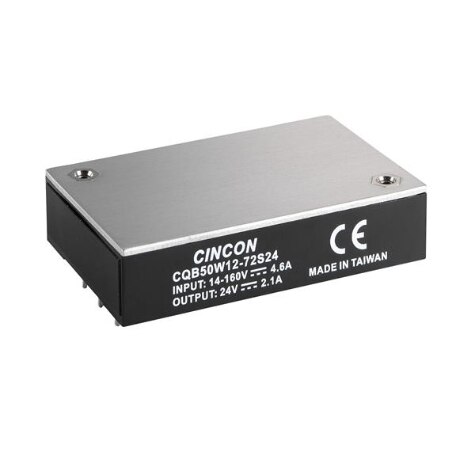

Cincon Electronics Co. LTD CQB50W12-72S05N	Isolated Module	5 V	3000 V	160 V	1	83 %	6 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active Low Enable	50155 60950-1	30 Watts	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S48	Isolated Module	48 V	3000 V	160 V	1	88 %	1.05 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active High Enable	50155 60950-1	50 W	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S24N	Isolated Module	24 V	3000 V	160 V	1	89 %	2.1 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active Low Enable	50155 60950-1	50 W	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S48-CMFC	Open Frame	48 V	3000 V	160 V	1	88 %	1.05 A			CE UKCA	-40 °C	100 °C	116.8 mm	2.4 in	1.26 "	4.6 "				14 V	Chassis Mount		60950-1	50 W	ITE (Commercial)	32 mm	61 mm
Cincon Electronics Co. LTD CQB50W12-72S48N	Isolated Module	48 V	3000 V	160 V	1	88 %	1.05 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active Low Enable	50155 60950-1	50 W	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S12	Isolated Module	12 V	3000 V	160 V	1	87 %	4.2 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active High Enable	50155 60950-1	50 W	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S12N	Isolated Module	12 V	3000 V	160 V	1	87 %	4.2 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active Low Enable	50155 60950-1	50 W	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S05N-CMFC	Open Frame	5 V	3000 V	160 V	1	83 %	6 A			CE UKCA	-40 °C	100 °C	116.8 mm	2.4 in	1.26 "	4.6 "				14 V	Chassis Mount		60950-1	30 Watts	ITE (Commercial)	32 mm	61 mm
Cincon Electronics Co. LTD CQB50W12-72S05	Isolated Module	5 V	3000 V	160 V	1	83 %	6 A	Module	Module	CB CE cURus	-40 °C	100 °C	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	14 V	Through Hole	Active High Enable	50155 60950-1	30 Watts	ITE (Commercial) Railway
Cincon Electronics Co. LTD CQB50W12-72S24-CMFC	Open Frame	24 V	3000 V	160 V	1	89 %	2.1 A			CE UKCA	-40 °C	100 °C	116.8 mm	2.4 in	1.26 "	4.6 "				14 V	Chassis Mount		60950-1	50 W	ITE (Commercial)	32 mm	61 mm
