FDMT80060 Series
Manufacturer: ON Semiconductor
Beta
⌘K
MOSFET, N-CHANNEL, 60V, 292A, PQFN ROHS COMPLIANT: YES
| Part | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs(th) (Max) @ Id | Technology | Power Dissipation (Max) | FET Type | Operating Temperature [Min] | Operating Temperature [Max] | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Package / Case | Mounting Type | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

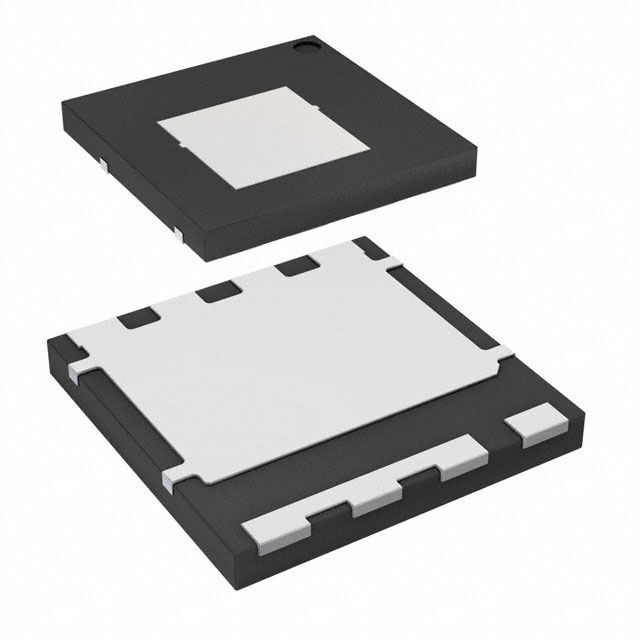

 ON Semiconductor | 43 A 292 A | 238 nC | 4.5 V | MOSFET (Metal Oxide) | 3.2 W 156 W | N-Channel | -55 °C | 150 °C | 8 V 10 V | 1.1 mOhm | 20 V | 20170 pF | 8-Dual Cool™88 | 8-PowerVDFN | Surface Mount | 60 V |
