HEEE-064 Series

Catalog

INSRT 64P+1GND HEEE-064-F 65-128

Part	Housing Material	Material Flammability Rating	Voltage Rating	Gender	Size	Number of Positions	Current Rating (Amps)	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination Style

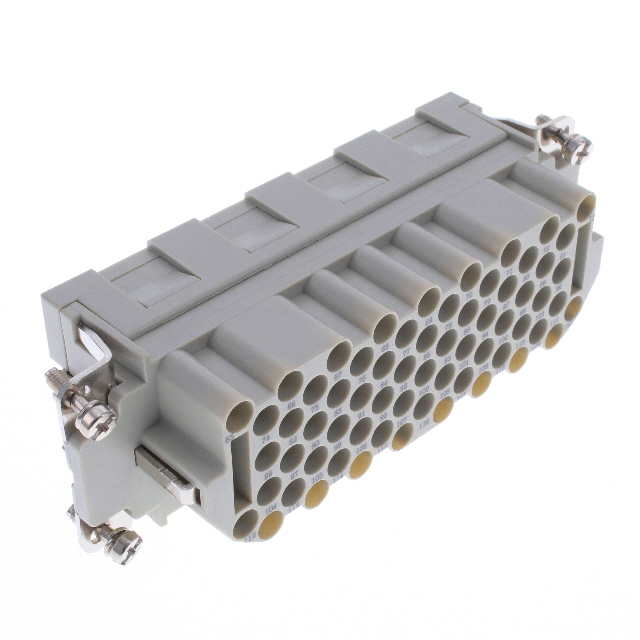

TE Connectivity AMP Connectors HEEE-064-F 65-128	Polycarbonate (PC)	EN45545	500 V	Female	H24B	64+Ground	16 A	CEF DEF	125 °C	-40 C	Insert without Contacts	Crimp

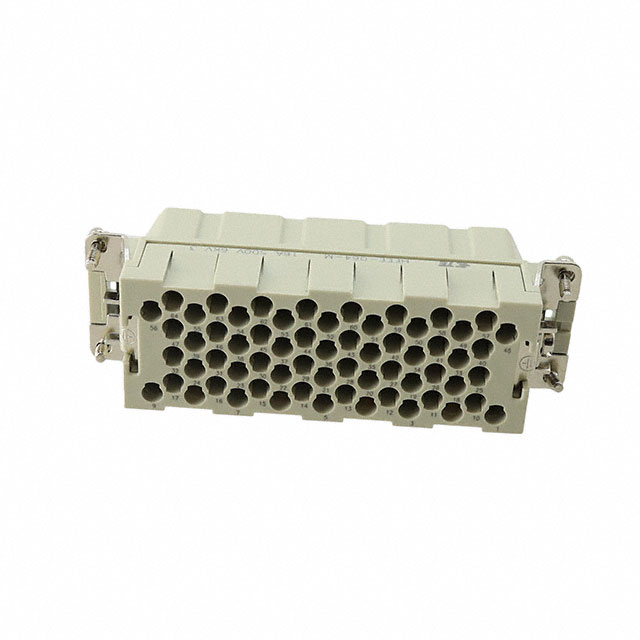

TE Connectivity AMP Connectors HEEE-064-M	Polycarbonate (PC)	EN45545	500 V	Male	H24B	64+Ground	16 A	CEM DEM	125 °C	-40 C	Insert without Contacts	Crimp

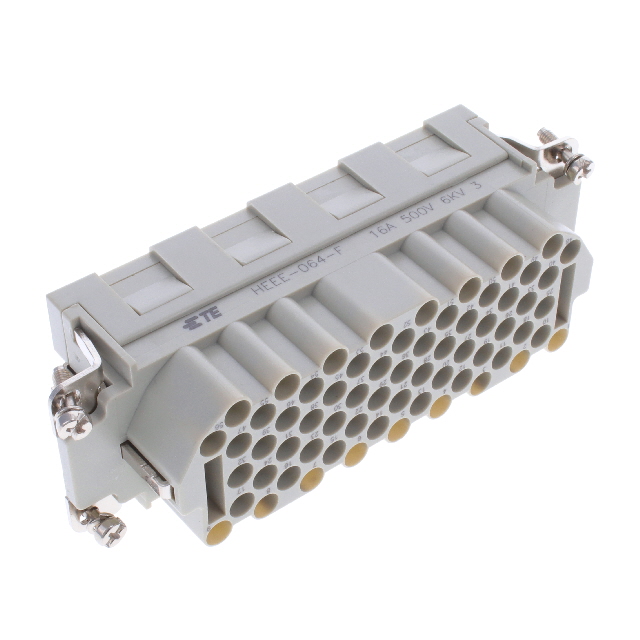

TE Connectivity AMP Connectors HEEE-064-F	Polycarbonate (PC)	EN45545	500 V	Female	H24B	64+Ground	16 A	CEF DEF	125 °C	-40 C	Insert without Contacts	Crimp

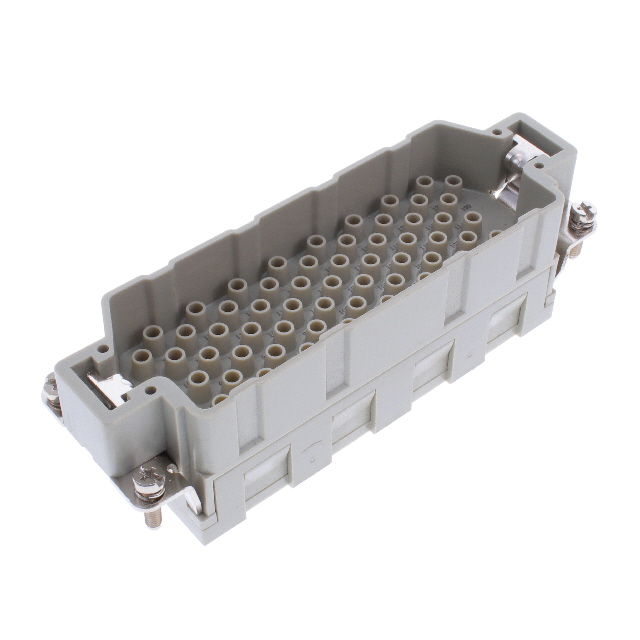

TE Connectivity AMP Connectors HEEE-064-M 65-128	Polycarbonate (PC)	EN45545	500 V	Male	H24B	64+Ground	16 A	CEM DEM	125 °C	-40 C	Insert without Contacts	Crimp
