SRCN1A21 Series

Catalog

CONN RCPT MALE 16P SOLDER CUP

Part	Shell Finish	Cable Opening	Cable Opening	Primary Material	Backshell Material, Plating	Connector Type	Mounting Type	Fastening Type	Number of Positions	Current Rating (Amps)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Orientation	Shell Size - Insert	Contact Finish - Mating	Voltage Rating	Insert Material	Color	Contact Material	Material Flammability Rating	Shell Material

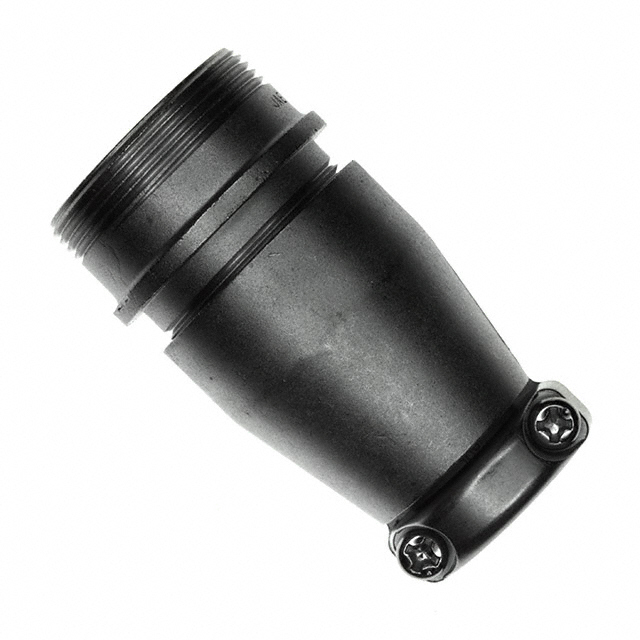

JAE Electronics SRCN1A21-16P	Nickel	0.551 "	14 mm	Metal	Aluminum Alloy Nickel	Receptacle Male Pins	Free Hanging (In-Line)	Threaded	16	5 A	Communication Systems Measurement Telecommunications Test Equipment	85 °C	-25 °C	Backshell Cable Clamp	N (Normal)	21-16	Silver	250 VAC 350 VDC	Plastic	Silver	Copper Alloy	UL94 V-0	Aluminum Alloy

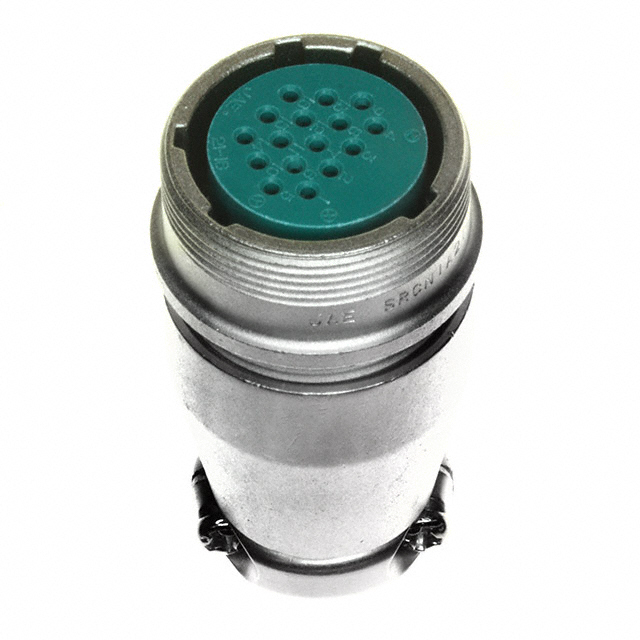

JAE Electronics SRCN1A21-16S	Nickel	0.551 "	14 mm	Metal	Aluminum Alloy Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Threaded	16	5 A	Communication Systems Measurement Telecommunications Test Equipment	85 °C	-25 °C	Backshell Cable Clamp	N (Normal)	21-16	Silver	250 VAC 350 VDC	Plastic	Silver	Copper Alloy	UL94 V-0	Aluminum Alloy

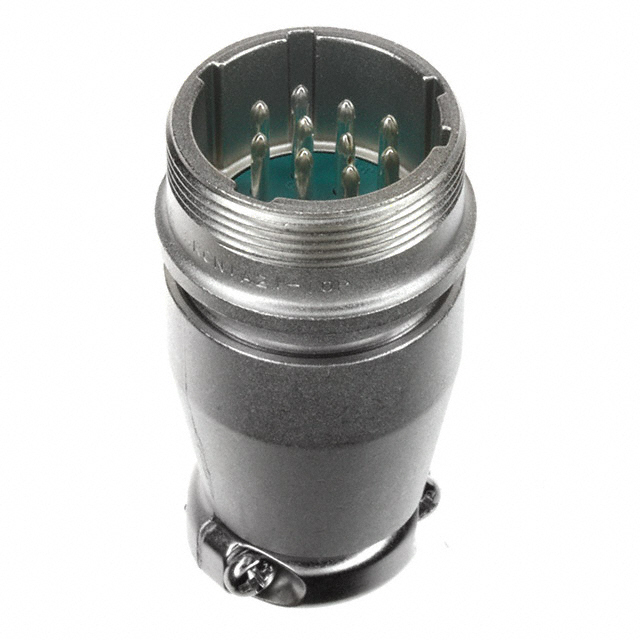

JAE Electronics SRCN1A21-10P	Nickel	0.551 "	14 mm	Metal	Aluminum Alloy Nickel	Receptacle Male Pins	Free Hanging (In-Line)	Threaded	10	10 A	Communication Systems Measurement Telecommunications Test Equipment	85 °C	-25 °C	Backshell Cable Clamp	N (Normal)	21-10	Silver	250 VAC 350 VDC	Plastic	Silver	Copper Alloy	UL94 V-0	Aluminum Alloy

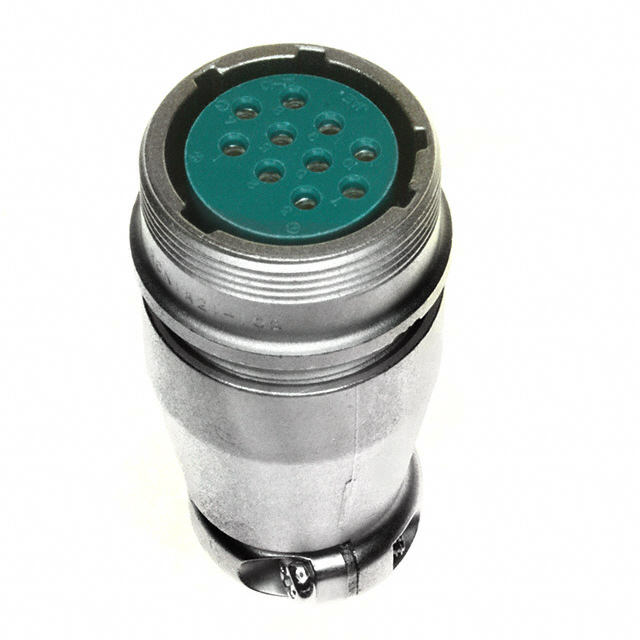

JAE Electronics SRCN1A21-10S	Nickel	0.551 "	14 mm	Metal	Aluminum Alloy Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Threaded	10	10 A	Communication Systems Measurement Telecommunications Test Equipment	85 °C	-25 °C	Backshell Cable Clamp	N (Normal)	21-10	Silver	250 VAC 350 VDC	Plastic	Silver	Copper Alloy	UL94 V-0	Aluminum Alloy
