M13519 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

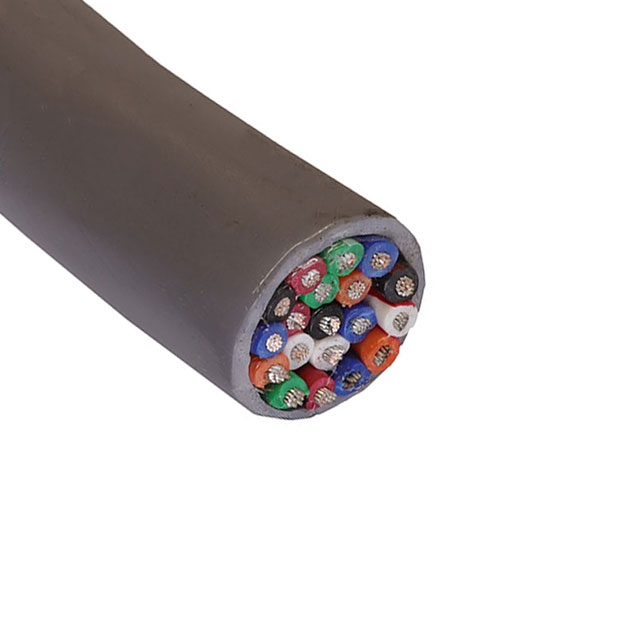

CABLE 19COND 18AWG SLATE 3000'
| Part | Jacket Color | Ratings | Cable Type | Conductor Insulation | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | UL Style 2598 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 18 AWG | Copper Tinned | 1.143 mm | 0.045 in | 19 | 80 °C | -20 ░C | 13.21 mm | 0.52 in | 914.4 m | 3000 ' | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 300 VDC |
