YB15RK Series

Catalog

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), RECTANGULAR, RED

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Termination Style	Switch Function	Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Features	Circuit	Actuator Type	Actuator Marking	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)

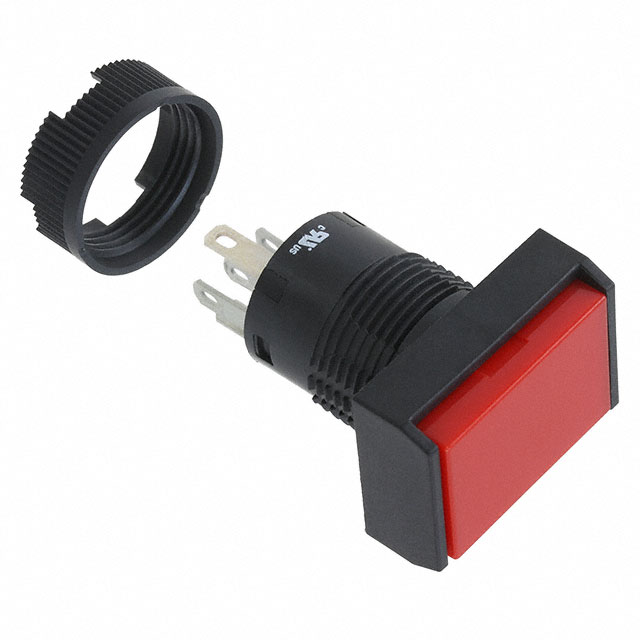

NKK Switches YB15RKW01-CB	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Standard	125 V	16 mm	30 V	-25 °C	70 °C	Red	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front

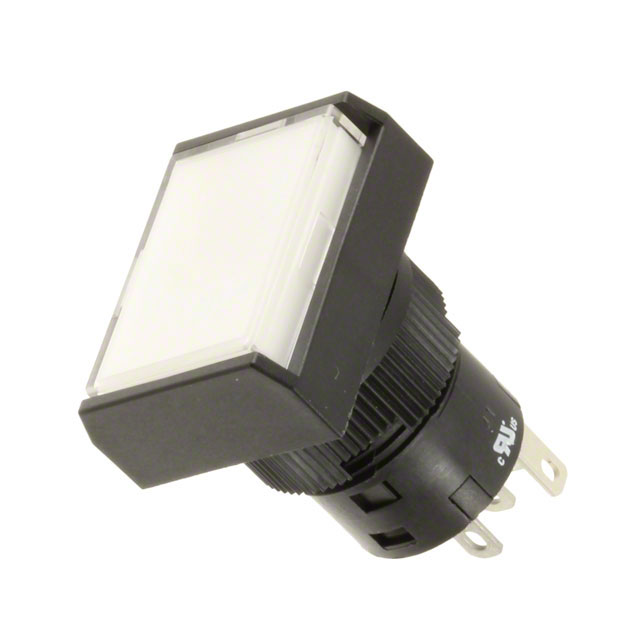

NKK Switches YB15RKW01-6B-JB	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	125 V	16 mm	30 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	LED White	3.3 VDC
NKK Switches YB15RKW01-2CF02-JC	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	125 V	16 mm	30 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	Green/Red LED	2 VDC
NKK Switches YB15RKG01-5C-JC	100000 Cycles	1000000 Cycles	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	28 V	16 mm	28 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	LED Red	1.9 VDC
NKK Switches YB15RKW01-5C-JC	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	125 V	16 mm	30 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	LED Red	1.9 VDC
NKK Switches YB15RKW01-5C12-JB	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	125 V	16 mm	30 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	LED Red	12 VDC
NKK Switches YB15RKW01-5C-JB	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	125 V	16 mm	30 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	LED Red	1.9 VDC

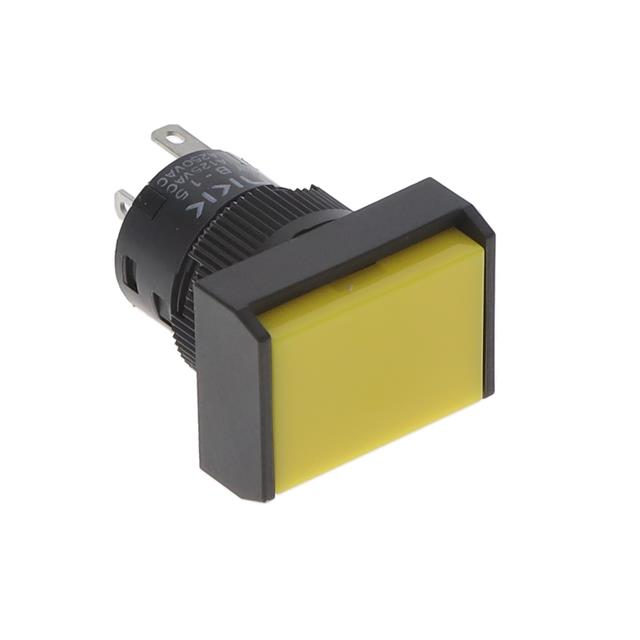

NKK Switches YB15RKW01-EB	100000 Cycles	1000000 Cycles	3 A	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Standard	125 V	16 mm	30 V	-25 °C	70 °C	Yellow	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front
NKK Switches YB15RKG01-2CF05-JB	100000 Cycles	1000000 Cycles	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	28 V	16 mm	28 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	Green/Red LED	5 VDC
NKK Switches YB15RKG01-5D05-JD	100000 Cycles	1000000 Cycles	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)	On-Mom	Illuminated Standard	28 V	16 mm	28 V	-25 °C	50 °C	Clear	Tactile Feedback	SPDT	Button Rectangular	No Marking	Panel Mount Front	Amber LED	5 VDC
