2530-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

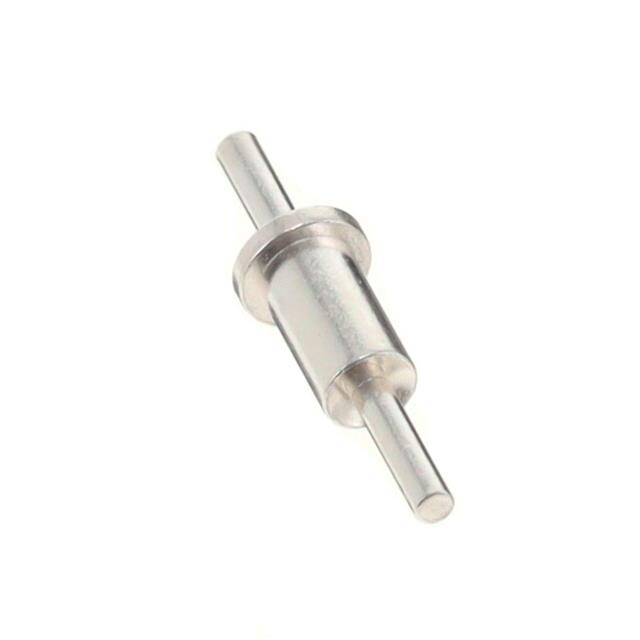

CONN PC PIN CIRC 0.040DIA SILVER
| Part | Length - Above Flange | Length - Above Flange | Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Contact Finish | Flange Diameter | Flange Diameter [diameter] | Terminal Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.151 " | 3.84 mm | Non-Insulated | 0.484 in | 12.29 mm | Swage | 1.02 mm | 0.04 in | 0.312 in | 7.92 mm | 3.18 mm | 0.125 in | Silver | 3.18 mm | 0.125 in | PC Pin | Brass Alloy | 300 µin | 7.62 µm | Double End | Through Hole | 2.39 mm | 0.094 " |
Mill-Max Manufacturing Corp. | |||||||||||||||||||||||
Mill-Max Manufacturing Corp. | 0.151 " | 3.84 mm | Non-Insulated | 0.484 in | 12.29 mm | Swage | 1.02 mm | 0.04 in | 0.312 in | 7.92 mm | 3.18 mm | 0.125 in | Tin-Lead | 3.18 mm | 0.125 in | PC Pin | Brass Alloy | 300 µin | 7.62 µm | Double End | Through Hole | 2.39 mm | 0.094 " |
