NCV8163 Series

LDO Regulator, 250 mA, Ultra-Low Dropout, Ultra-Low Iq, Ultra-High PSRR, Ultra-Low Noise

Catalog

LDO Regulator, 250 mA, Ultra-Low Dropout, Ultra-Low Iq, Ultra-High PSRR, Ultra-Low Noise

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Number of Regulators	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)	Grade	Qualification	Supplier Device Package	Protection Features	Current - Output	Current - Quiescent (Iq)	Package / Case	Mounting Type	Control Features	PSRR [Min]	PSRR [Max]
ON Semiconductor NCV8163AMX180TBG	-40 °C	125 ¯C	Positive	1	0.25 V	5.5 V	1.81 mOhm	1.8 V	Automotive	AEC-Q100	4-XDFN (1x1)	Over Current Over Temperature	250 mA	20 çA	4-XDFN Exposed Pad	Surface Mount	Enable	60 dB	92 dB

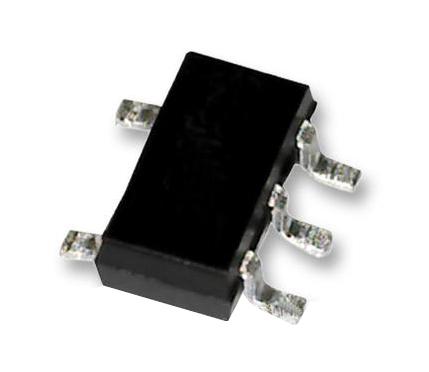

ON Semiconductor NCV8163ASN180T1G	-40 °C	125 ¯C	Positive	1	0.28 V	5.5 V	1.81 mOhm	1.8 V	Automotive	AEC-Q100	5-TSOP	Over Current Over Temperature	250 mA	20 çA	SOT-23-5 Thin TSOT-23-5	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163ASN270T1G	-40 °C	125 ¯C	Positive	1		5.5 V	1.81 mOhm	2.7 V	Automotive	AEC-Q100	5-TSOP	Over Current Over Temperature	250 mA	20 çA	SOT-23-5 Thin TSOT-23-5	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163AMX250TBG	-40 °C	125 ¯C	Positive	1	0.175 V	5.5 V	1.81 mOhm	2.5 V	Automotive	AEC-Q100	4-XDFN (1x1)	Over Current Over Temperature	250 mA	20 çA	4-XDFN Exposed Pad	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163ASN120T1G	-40 °C	125 ¯C	Positive	1		5.5 V	1.81 mOhm	1.2 V	Automotive	AEC-Q100	5-TSOP	Over Current Over Temperature	250 mA	20 çA	SOT-23-5 Thin TSOT-23-5	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163ASN300T1G	-40 °C	125 ¯C	Positive	1	0.185 V	5.5 V	1.81 mOhm		Automotive	AEC-Q100	5-TSOP	Over Current Over Temperature	250 mA	20 çA	SOT-23-5 Thin TSOT-23-5	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163AMX280TBG	-40 °C	125 ¯C	Positive	1	0.16 V	5.5 V	1.81 mOhm	2.8 V	Automotive	AEC-Q100	4-XDFN (1x1)	Over Current Over Temperature	250 mA	20 çA	4-XDFN Exposed Pad	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163AMX150TBG	-40 °C	125 ¯C	Positive	1		5.5 V	1.81 mOhm	1.5 V	Automotive	AEC-Q100	4-XDFN (1x1)	Over Current Over Temperature	250 mA	20 çA	4-XDFN Exposed Pad	Surface Mount	Enable	60 dB	92 dB
ON Semiconductor NCV8163ASN330T1G	-40 °C	125 ¯C	Positive	1	0.175 V	5.5 V	1.81 mOhm	3.3 V	Automotive	AEC-Q100	5-TSOP	Over Current Over Temperature	250 mA	20 çA	SOT-23-5 Thin TSOT-23-5	Surface Mount	Enable	60 dB	92 dB

Catalog

LDO Regulator, 250 mA, Ultra-Low Dropout, Ultra-Low Iq, Ultra-High PSRR, Ultra-Low Noise

Key Features

• Ultra Low Quiescent Current 12 uA

• Very Low Dropout 80mV@250mA

• Ultra High PSRR 92dB at 1 kHz

• Ultra High PSRR 60dB at 100 kHz

Description

The NCV8163 is an LDO (Low Dropout Regulator) capable of supplying 250 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8163 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 uF input and a 1 uF output ceramic capacitor.
