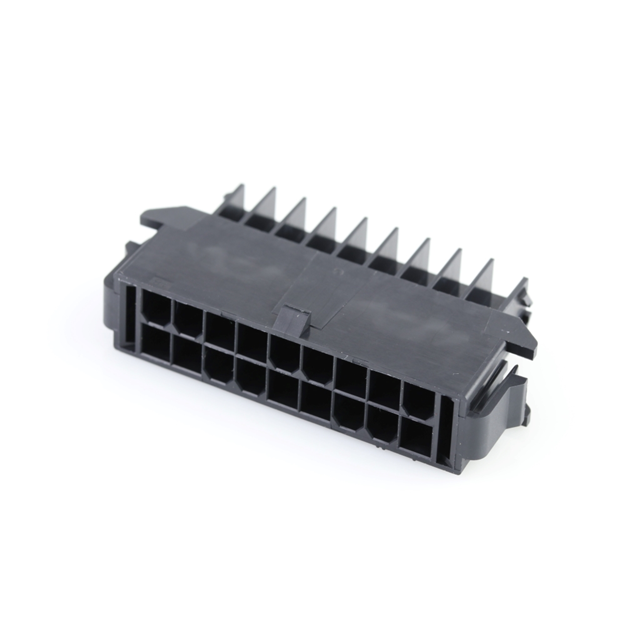

172767 Series

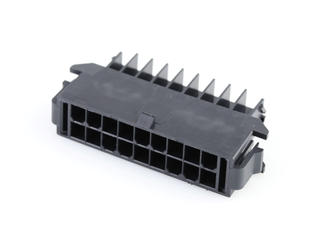

Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 18 Circuits, Panel Mount
Manufacturer: Molex
Catalog
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 18 Circuits, Panel Mount
Beta
⌘K
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 18 Circuits, Panel Mount
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 18 Circuits, Panel Mount
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 18 Circuits, Panel Mount
| Part | Number of Positions | Contact Termination | Pitch [x] | Pitch [x] | Connector Type | Mounting Type | Note | Number of Rows | Features | Fastening Type | Insulation Material | Contact Type | Row Spacing | Row Spacing | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 4 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Glow Wire Compliant | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.185 in | 4.7 mm | Black | -40 °C | 105 ░C | |

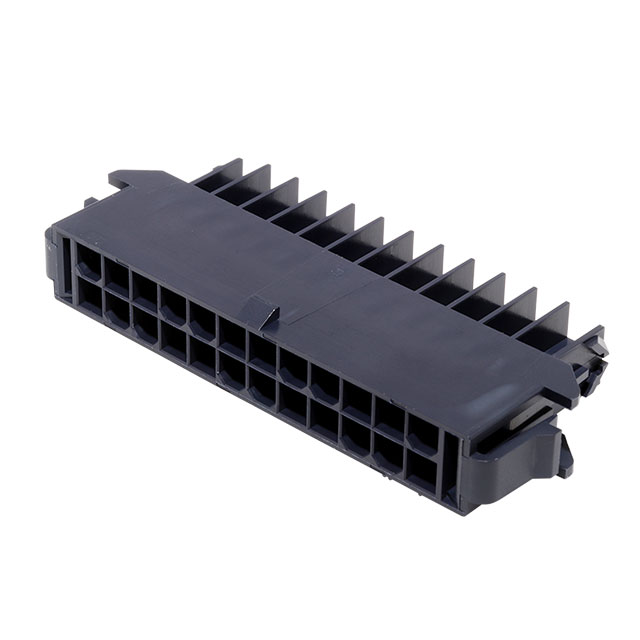

 Molex | 24 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Glow Wire Compliant | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C | |
 Molex | 18 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C | ||

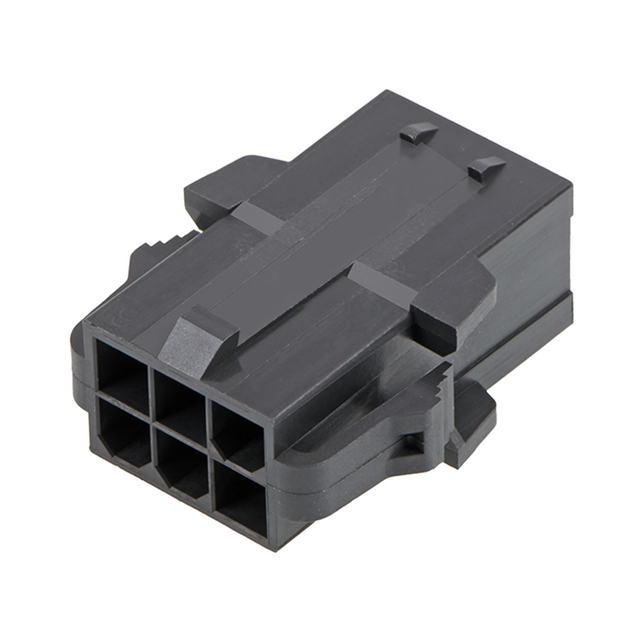

Molex | 6 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Glow Wire Compliant | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.185 in | 4.7 mm | Black | -40 °C | 105 ░C | |

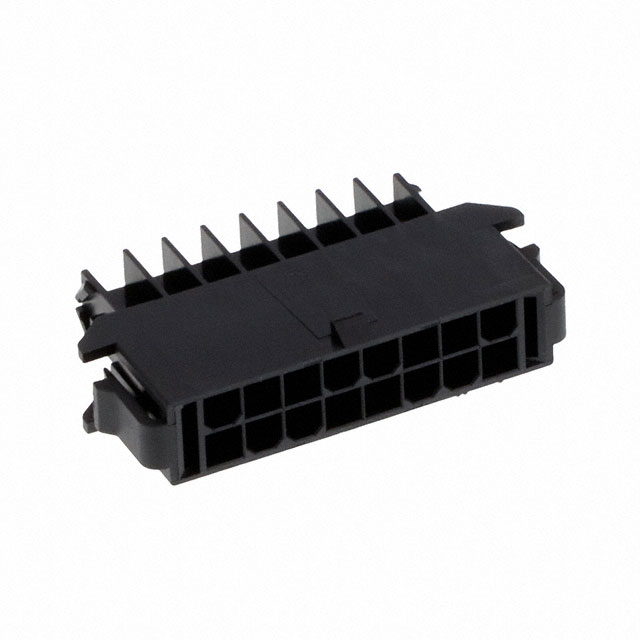

 Molex | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C | 16 | ||

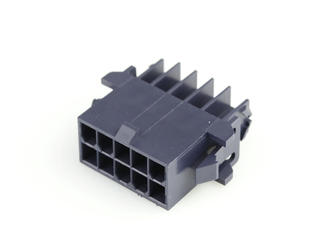

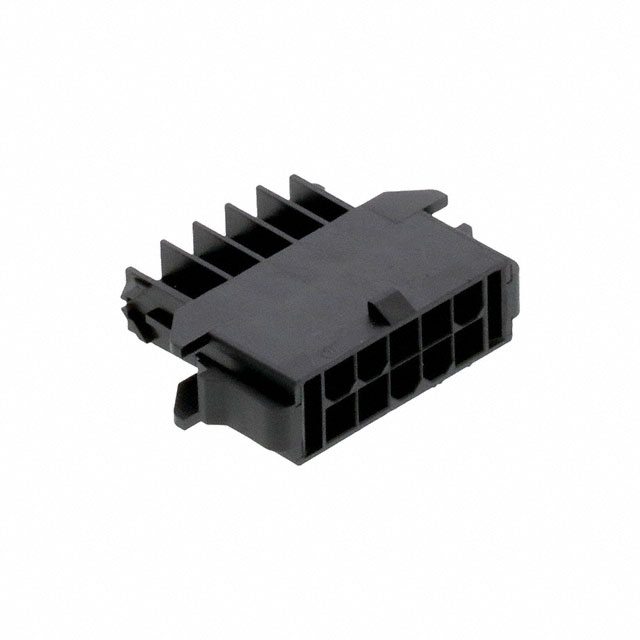

 Molex | 10 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C | ||

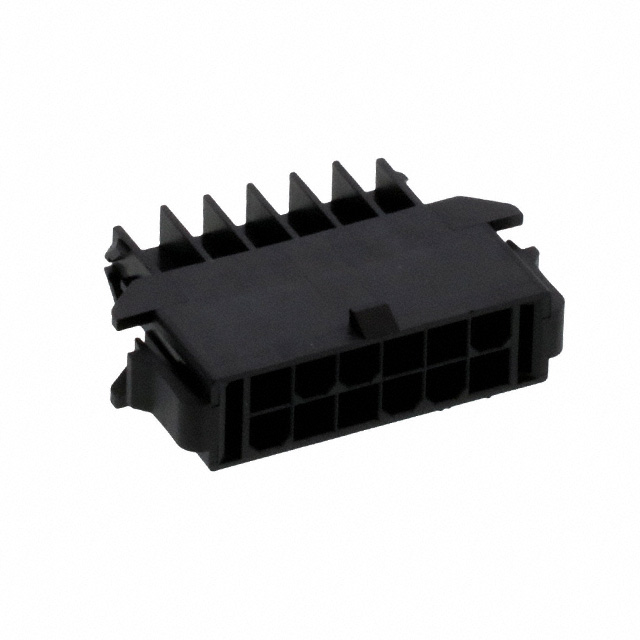

 Molex | 12 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C | ||

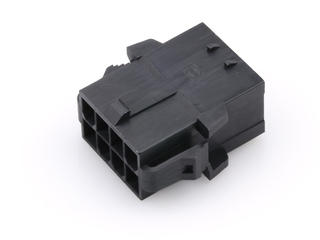

 Molex | 8 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Glow Wire Compliant | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.185 in | 4.7 mm | Black | -40 °C | 105 ░C | |
Molex | ||||||||||||||||||
 Molex | 18 | Crimp | 4.2 mm | 0.165 in | Plug | Panel Mount Snap-In | Contacts Not Included | 2 | Glow Wire Compliant | Locking Ramp | Nylon Polyamide (PA) | Male Pin | 0.165 in | 4.2 mm | Black | -40 °C | 105 ░C |
