073100 Series
RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
Manufacturer: Molex
Catalog
RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
Beta
⌘K
RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
| Part | Body Finish | Center Contact Material | Fastening Type | Connector Type | Features | Housing Color | Center Contact Plating | Mounting Feature | Includes | Impedance | Contact Termination | Connector Style | Mating Cycles | Number of Ports | Shield Termination | Dielectric Material | Body Material | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Mounting Type | Voltage Rating | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

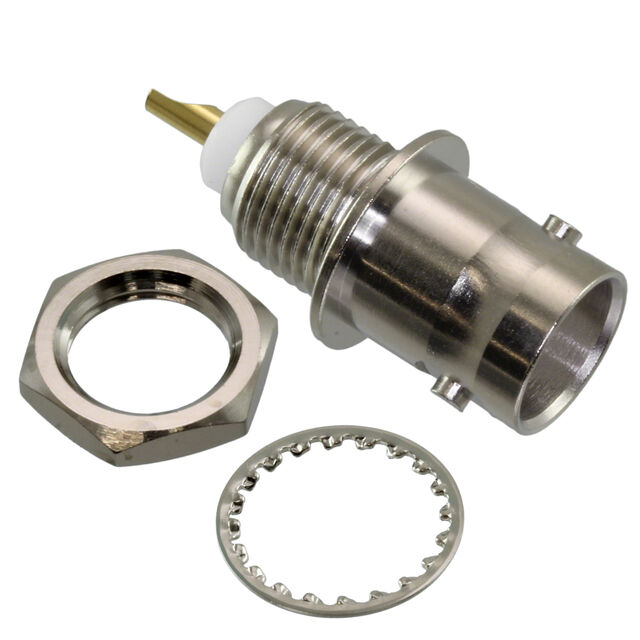

 Molex | Nickel | Phosphor Bronze | Bayonet Lock | Female Socket Jack | Extended Insulation | Silver | Gold | Bulkhead - Rear Side Nut | 1 Connector 1 Lockwasher 1 Nut | 50 Ohms | Solder Cup | BNC | 500 | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | |||||||

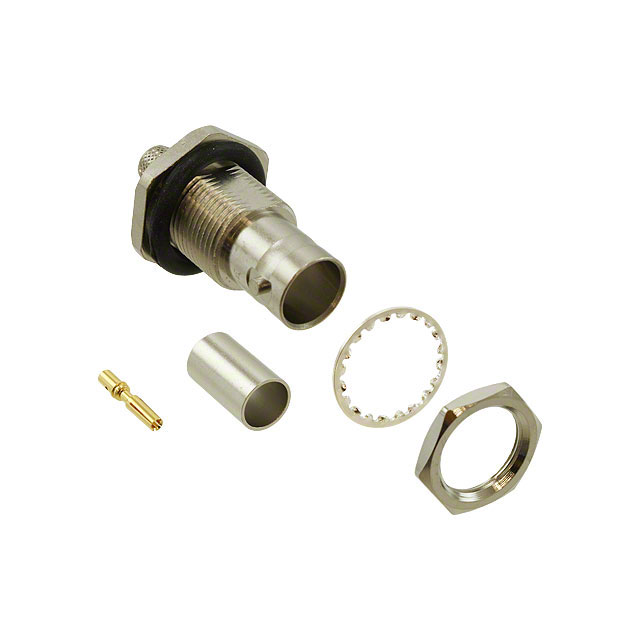

 Molex | Nickel | Phosphor Bronze | Bayonet Lock | Female Socket Jack | Silver | Gold | Bulkhead - Front Side Nut | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 75 Ohms | Crimp Solder | BNC | 500 | 1 | Crimp | Polytetrafluoroethylene (PTFE) | Brass | 62A RG-59B | |||||||
 Molex | Gold | Beryllium Copper | Female Socket Receptacle | Gold | Gold | 50 Ohms | Solder | SMA | 500 | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 18 GHz | Through Hole Right Angle | 500 V | ||||||
 Molex | Nickel | Phosphor Bronze | Bayonet Lock | Female Socket Jack | Board Guide Isolated | Black Silver | Gold | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | 75 Ohms | Solder | BNC | 500 | 1 | Solder | Polypropylene (PP) | Zinc Alloy | Panel Mount Right Angle Through Hole | ||||||
 Molex | Nickel | Phosphor Bronze | Bayonet Lock | Female Socket Jack | Board Lock Filter Isolated | Black Silver | Gold | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | 50 Ohms | Solder | BNC | 500 | 1 | Solder | Polypropylene (PP) | Zinc Alloy | Panel Mount Right Angle Through Hole | ||||||
Molex | Nickel | Brass | Bayonet Lock | Male Pin Plug | Silver | Gold | 75 Ohms | Solder | BNC | 1 | Crimp | Polytetrafluoroethylene (PTFE) | Brass | RG-59 | 4 GHz | Free Hanging (In-Line) Right Angle | 500 V | |||||||
 Molex | Gold | Beryllium Copper | Snap-On | Female Socket Plug | Gold | Gold | Connector End Cap Ferrule Insulator | 50 Ohms | Solder | SMB | 500 | 1 | Crimp | Polytetrafluoroethylene (PTFE) | Brass | 188 316 RG-174 | -55 °C | 155 °C | 4 GHz | Free Hanging (In-Line) Right Angle | 335 V | 0.2 dB | ||

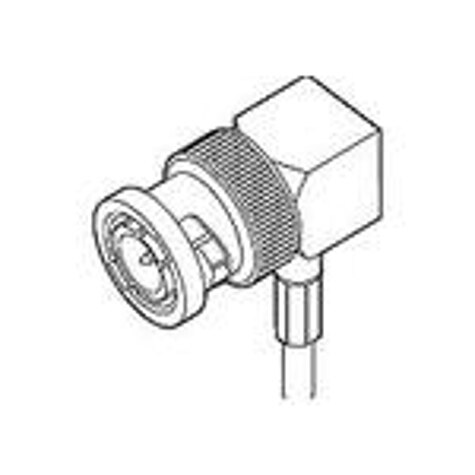

 Molex | Nickel | Brass | Bayonet Lock | Male Pin Plug | Silver | Gold | 1 Connector 1 End Cap 1 Ferrule | 50 Ohms | Solder | BNC | 500 | 1 | Crimp | Polytetrafluoroethylene (PTFE) | Brass | 141A 303 RG-58C | Free Hanging (In-Line) Right Angle | |||||||
Molex | Nickel | Phosphor Bronze | Female Socket Jack | Silver | Gold | 50 Ohms | Solder | TNC | 500 | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 11 GHz | Through Hole | 500 V | ||||||

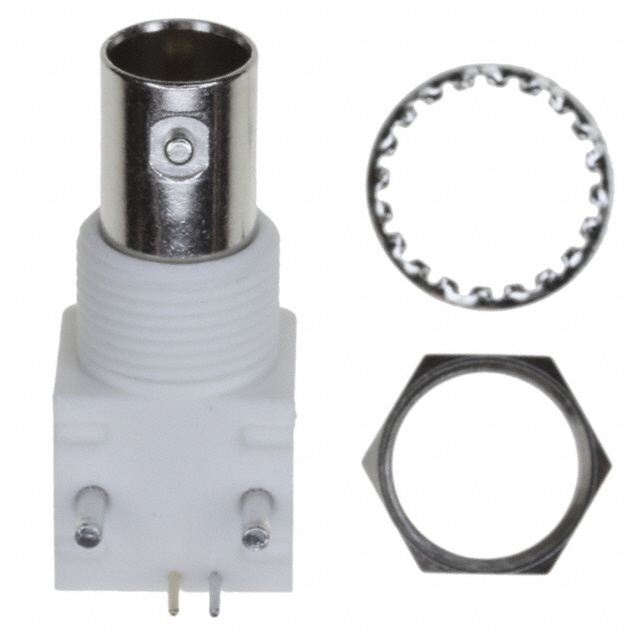

 Molex | Nickel | Phosphor Bronze | Bayonet Lock | Female Socket Jack | Board Guide Isolated | Silver White | Gold | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | 75 Ohms | Solder | BNC | 500 | 1 | Solder | Polypropylene (PP) | Zinc Alloy | Panel Mount Right Angle Through Hole |
