796748 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

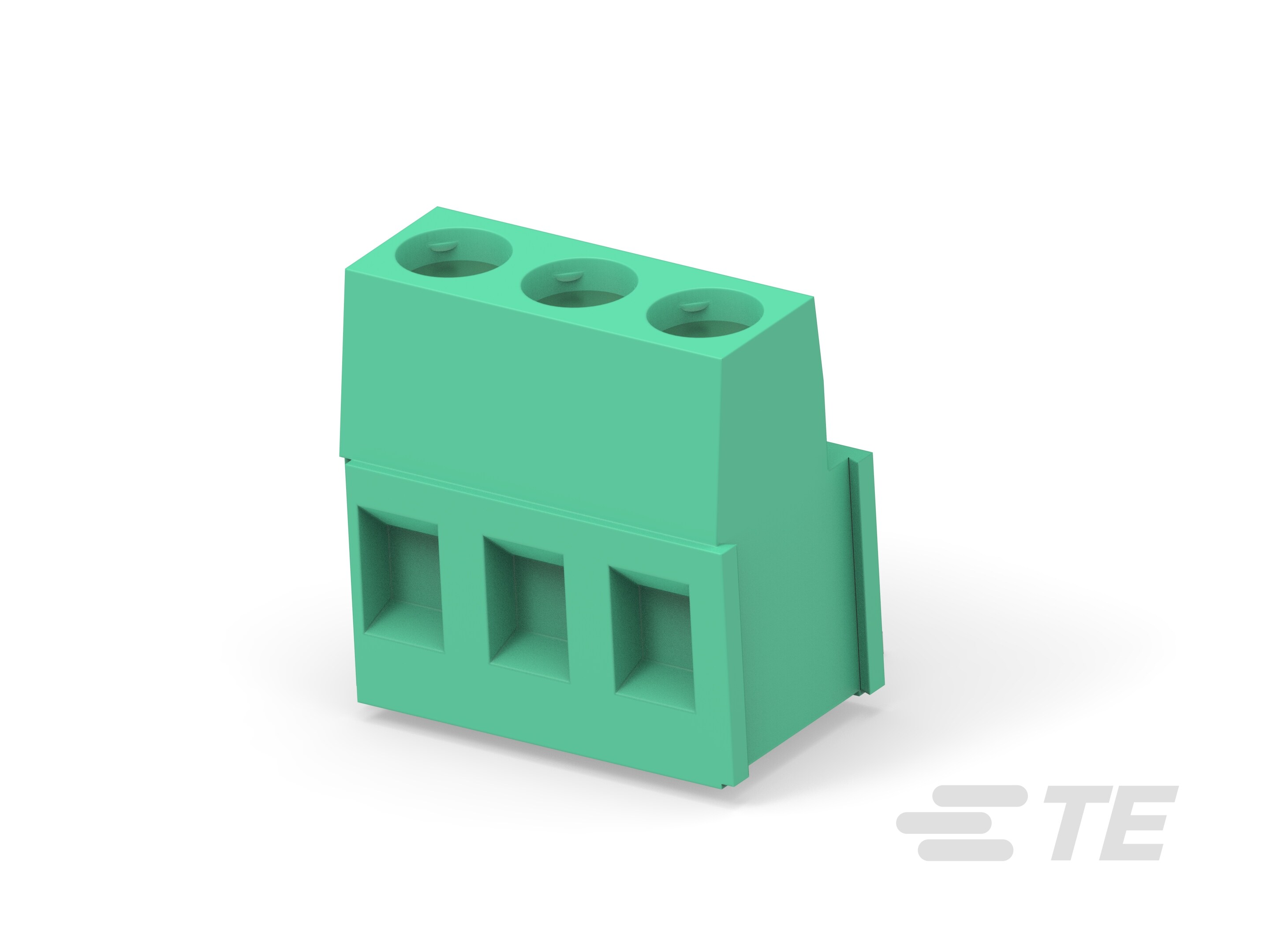

TERM BLK 3POS TOP ENTRY 5MM PCB
| Part | Screw Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating | Contact Material - Plating | Screw Thread | Mating Orientation | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Current | Voltage | Features | Wire Termination | Color | Mounting Type | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass - Nickel Plated | 7 Lb-In | 0.79 Nm | Brass - Nickel Plated | Brass - Tin Plated | M3 | Vertical with Board | 3 | 30 AWG | 12 AWG | 0.197 in | 5 mm | 17.5 A | 300 VDC | Interlocking (Side) | Screw - Rising Cage Clamp | Green | Through Hole | 1 |
 TE Connectivity AMP Connectors | Brass - Nickel Plated | 7 Lb-In | 0.79 Nm | Brass - Nickel Plated | Brass - Tin Plated | M3 | Vertical with Board | 2 | 30 AWG | 12 AWG | 0.197 in | 5 mm | 17.5 A | 300 VDC | Interlocking (Side) | Screw - Rising Cage Clamp | Green | Through Hole | 1 |
