MCVR Series

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK

Catalog

Pluggable Terminal Blocks MCVR1.5/ 8-ST-3 81BK

Part	Type	Number of Positions	Voltage - UL	Contact Mating Finish	Positions Per Level	Color	Number of Levels	Pitch	Pitch	Voltage - IEC	Plug Wire Entry	Current - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Features	Screw Size	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Wire Strip Length	Housing Material	Material Flammability Rating	Insulation Height	Insulation Height	Positions Per Level [custom]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1827237	Plug Female Sockets	13	300 V	Tin	13	Green	1	3.81 mm	0.15 in	320 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A
Phoenix Contact 1863398	Plug Female Sockets	11	300 V	Tin	11	Green	1	3.5 mm	0.138 "	320 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A	Mating Flange

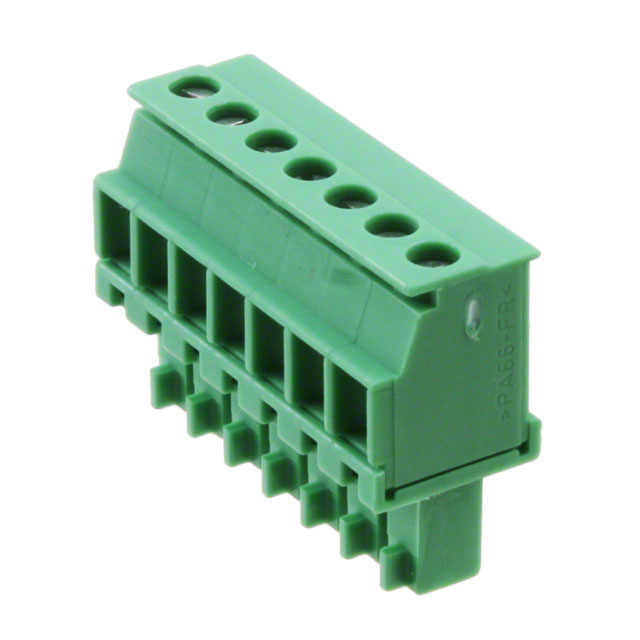

Phoenix Contact 1827172	Plug Female Sockets	7	300 V	Tin		Green	1	3.81 mm	0.15 in	320 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A		M2	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	UL94 V-0	0.752 in	19.1 mm	7
Phoenix Contact 1859713	Plug Female Sockets	12	300 V	Tin	12	Black	1	3.81 mm	0.15 in	160 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A		M2	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm			0.752 in	19.1 mm
Phoenix Contact 1863385	Plug Female Sockets	10	300 V	Tin	10	Green	1	3.5 mm	0.138 "	320 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A	Mating Flange	M2	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm	Polyamide (PA) Nylon	UL94 V-0	0.752 in	19.1 mm
Phoenix Contact 1863152	Plug Female Sockets	2	300 V	Tin	2	Green	1	3.5 mm	0.138 "	320 V	90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A
Phoenix Contact 1800222	Plug Female Sockets	8	300 V	Tin	8	Black	1	3.81 mm	0.15 in		90 °	8 A	14 AWG	30 AWG	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1.5 mm²	0.14 mm²	8 A		M2	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	7 mm			0.752 in	19.1 mm		0.14 mm˛	1.5 mm˛
