R14375 Series

Catalog

TNC / FEMALE-FEMALE HERMETIC ADA

Part	Insertion Loss	Body Finish	Center Contact Material	Dielectric Material	Body Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Center Gender	Impedance	Mounting Type	Center Contact Plating	Style	Mounting Feature	Conversion Type	Convert From (Adapter End)	Adapter Series	Convert To (Adapter End)	Frequency - Max [Max]
Radiall USA, Inc. R143753000W	0.18 dB	Nickel	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	500	-65 ░C	100 °C	Jack to Jack	Female to Female	50 Ohms	Panel Mount	Gold	Straight	Bulkhead	Same Series	Female Socket TNC Jack	TNC to TNC	Female Socket TNC Jack	11 GHz
Radiall USA, Inc. R143753120W	0.18 dB	Nickel	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	500	-65 ░C	165 °C	Jack to Jack	Female to Female	50 Ohms	Panel Mount	Gold	Straight	Bulkhead	Same Series	Female Socket TNC Jack	TNC to TNC	Female Socket TNC Jack	11 GHz

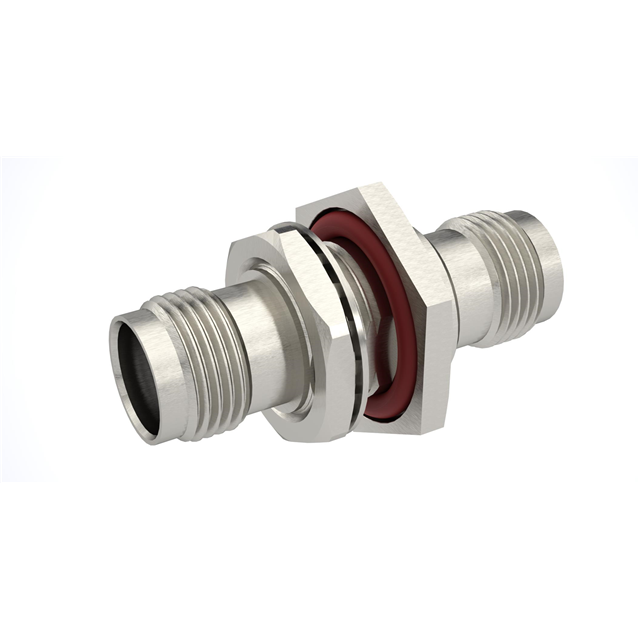

Radiall USA, Inc. R143753000	0.18 dB	Nickel	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	500	-65 ░C	100 °C	Jack to Jack	Female to Female	50 Ohms	Panel Mount	Gold	Straight	Bulkhead	Same Series	Female Socket TNC Jack	TNC to TNC	Female Socket TNC Jack	11 GHz

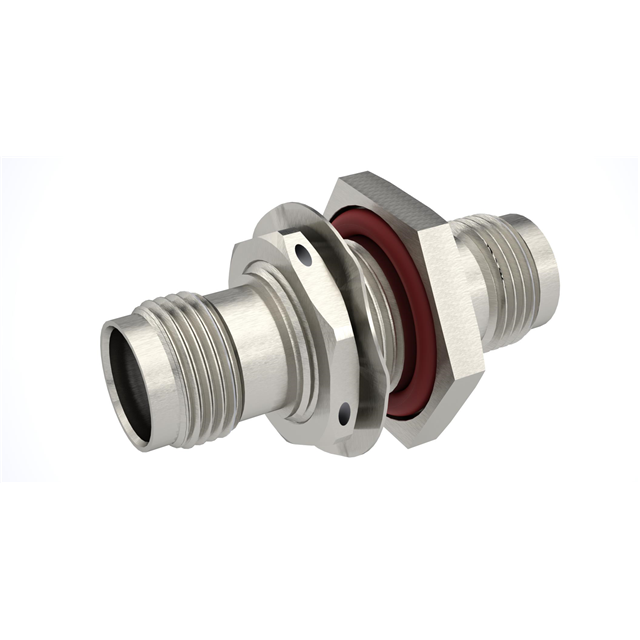

Radiall USA, Inc. R143753120	0.18 dB	Nickel	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	500	-65 ░C	165 °C	Jack to Jack	Female to Female	50 Ohms	Panel Mount	Gold	Straight	Bulkhead	Same Series	Female Socket TNC Jack	TNC to TNC	Female Socket TNC Jack	11 GHz
