PRPC017 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 17POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Shrouding	Material Flammability Rating	Mounting Type	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Number of Rows	Contact Material	Style	Termination	Insulation Material	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Connector Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions [custom]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

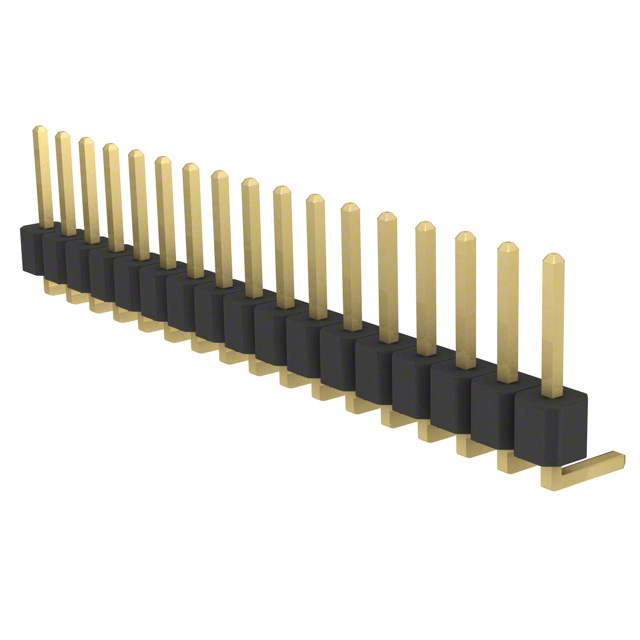

Sullins Connector Solutions PRPC017SBAN-M71RC	3.05 mm	0.12 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Right Angle Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway
Sullins Connector Solutions PRPC017DAAN-RC	3.05 mm	0.12 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A		Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway	2	0.1 in	2.54 mm	34	0.448 in	11.39 mm
Sullins Connector Solutions PRPC017DABN-RC	5.84 mm	0.23 "	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A		Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway	2	0.1 in	2.54 mm	34	0.558 in	14.18 mm

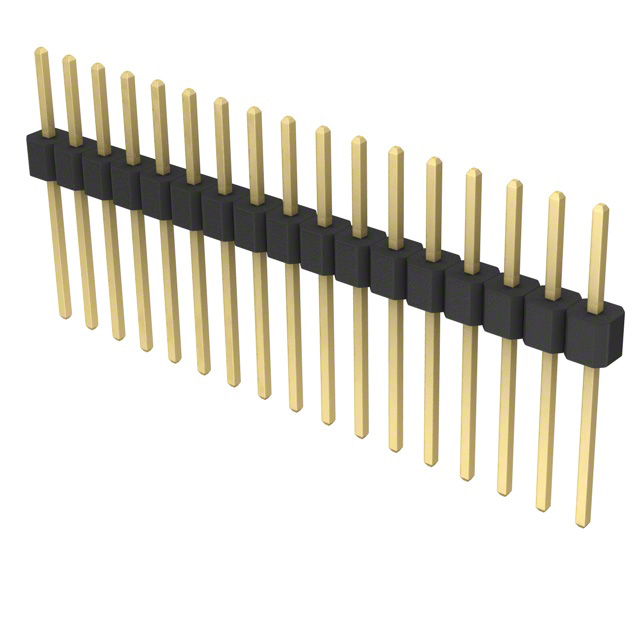

Sullins Connector Solutions PRPC017SADN-RC	10.67 mm	0.42 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway					0.748 in	19.01 mm

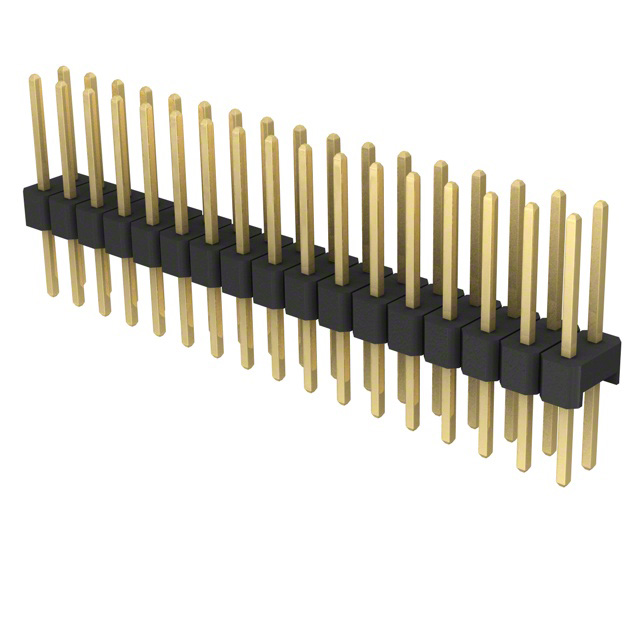

Sullins Connector Solutions PRPC017DFBN-RC	5.58 mm	0.22 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A		Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.318 in	8.08 mm	Gold	Flash	Black	All	Header Breakaway	2	0.1 in	2.54 mm	34		0.637 in	16.17 mm
Sullins Connector Solutions PRPC017SFAN-RC	3.05 mm	0.12 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.318 in	8.08 mm	Gold	Flash	Black	All	Header Breakaway								13.63 mm	0.537 in

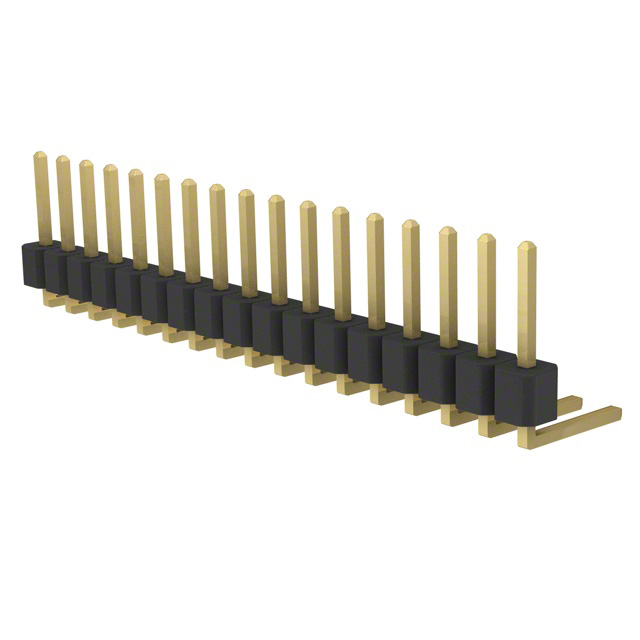

Sullins Connector Solutions PRPC017SBBN-M71RC	5.58 mm	0.22 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Right Angle Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway

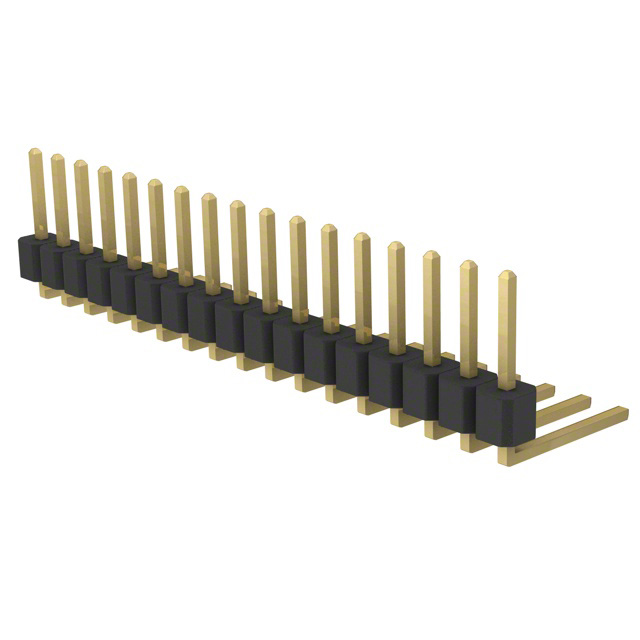

Sullins Connector Solutions PRPC017SBCN-M71RC	8.13 mm	0.32 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Right Angle Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.23 in	5.84 mm	Gold	Flash	Black	All	Header Breakaway

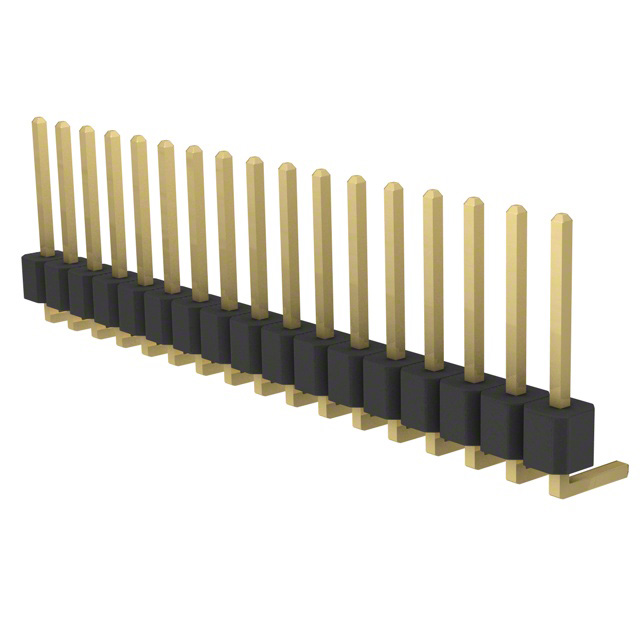

Sullins Connector Solutions PRPC017SGAN-M71RC	3.05 mm	0.12 in	Male Pin	0.098 "	2.5 mm	0.1 "	2.54 mm	Unshrouded	UL94 V-0	Right Angle Through Hole	Square	Gold	-40 C	105 ░C	Push-Pull	3 A	1	Brass	Board to Board Cable	Solder	Polybutylene Terephthalate (PBT)	Flash	0.318 in	8.08 mm	Gold	Flash	Black	All	Header Breakaway
