890-70 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER R/A 7POS 2.54MM

...

Part	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Number of Positions Loaded	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating [x]	Insulation Color	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Contact Type	Contact Material	Termination	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Connector Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]
Preci-Dip 890-70-007-20-002101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	7	Header	0.118 in	3 mm
Preci-Dip 890-70-029-10-002101	Flash	-55 C	125 °C	Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	29	Header	0.118 in	3 mm	0.494 in	12.54 mm
Preci-Dip 890-70-023-10-004101	Flash	-55 C	125 °C	Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	14.91 mm		Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	23	Header	0.118 in	3 mm	20.44 mm		0.805 in	0.587 in
Preci-Dip 890-70-020-20-002101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	20	Header	0.118 in	3 mm
Preci-Dip 890-70-035-10-001101	Flash	-55 C	125 °C	Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	6 mm		Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	35	Header			11.64 mm		0.458 "	0.236 in	0.122 in	3.1 mm

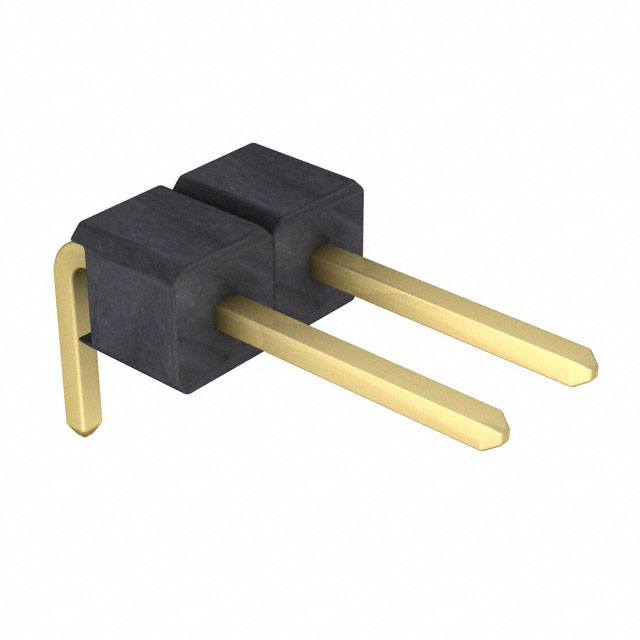

Preci-Dip 890-70-002-20-002101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	2	Header	0.118 in	3 mm
Preci-Dip 890-70-038-20-002101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	38	Header	0.118 in	3 mm
Preci-Dip 890-70-036-10-001101	Flash	-55 C	125 °C	Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	6 mm		Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	36	Header			11.64 mm		0.458 "	0.236 in	0.122 in	3.1 mm
Preci-Dip 890-70-021-20-002101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	7 mm	0.276 in	Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm	21	Header	0.118 in	3 mm
Preci-Dip 890-70-031-20-001101	Flash	-55 C	125 °C	Right Angle Through Hole	Gold	Push-Pull	Gold	Flash	Glass Filled Nylon Polyamide (PA)	Unshrouded	All	150 VDC	0.1 "	2.54 mm	6 mm		Black	3 A	Square	UL94 V-0	Male Pin	Brass	Solder	1	0.1 in	2.54 mm		Header	0.118 in	3 mm				0.236 in			31
