CMLS104T Series

Catalog

FIXED IND 220NH 40A 0.95MOHM SMD

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Current Rating (Amps)	Package / Case	DC Resistance (DCR) [Max]	Mounting Type	Inductance Frequency - Test	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Material - Core	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR)
Delta Electronics/Cyntec CMLS104T-R22MS	20 %	-55 C	125 °C	220 nH	40 A	Nonstandard	0.95 mOhm	Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	75 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-R15MS	20 %	-55 C	125 °C	150 nH	52 A	Nonstandard	0.65 mOhm	Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	90 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-4R7MS	20 %	-55 C	125 °C	4.7 ÁH	9.6 A	Nonstandard	16.5 mOhm	Surface Mount	100 kHz	Shielded	0.427 in	10 mm	10.85 mm	0.394 in	17 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-1R5MS	20 %	-55 C	125 °C	1.5 µH	16 A	Nonstandard		Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	33 A	Metal	4 mm	0.157 in	4.2 mOhm
Delta Electronics/Cyntec CMLS104T-R36MS	20 %	-55 C	125 °C	360 nH	30 A	Nonstandard	1.25 mOhm	Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	60 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-R56MS	20 %	-55 C	125 °C	560 nH	25 A	Nonstandard	1.8 mOhm	Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	40 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-1R0MS	20 %	-55 C	125 °C	1 µH	20 A	Nonstandard	3.2 mOhm	Surface Mount	100 kHz	Shielded	0.439 in	10 mm	11.15 mm	0.394 in	36 A	Metal	4 mm	0.157 in

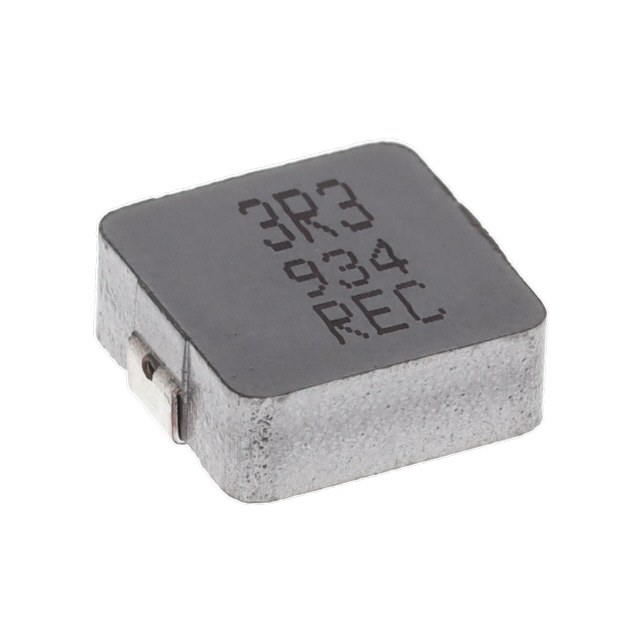

Delta Electronics/Cyntec CMLS104T-3R3MS	20 %	-55 C	125 °C	3.3 µH	10.7 Amps	Nonstandard	11.8 mOhm	Surface Mount	100 kHz	Shielded	0.427 in	10 mm	10.85 mm	0.394 in	21 A	Metal	4 mm	0.157 in
Delta Electronics/Cyntec CMLS104T-2R2MS	20 %	-55 C	125 °C	2.2 µH	12.5 Amps	Nonstandard	7 mOhm	Surface Mount	100 kHz	Shielded	0.427 in	10 mm	10.85 mm	0.394 in	23 A	Metal	4 mm	0.157 in
