852-40 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 26POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 852-40-026-10-001000	200 µin	5.08 µm	Brass Alloy	Male Pin	0.118 in	3 mm	Header	Unshrouded	8.1 mm	0.319 in	2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	26
Mill-Max Manufacturing Corp. 852-40-068-10-001000	200 µin	5.08 µm	Brass Alloy	Male Pin	0.118 in	3 mm	Header	Unshrouded	8.1 mm	0.319 in	2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	68 positions
Mill-Max Manufacturing Corp. 852-40-094-20-001000	200 µin	5.08 µm	Brass Alloy	Male Pin			Header	Unshrouded			2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Right Angle Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	94	0.126 "	3.2 mm	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-40-042-20-001000	200 µin	5.08 µm	Brass Alloy	Male Pin			Header	Unshrouded			2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Right Angle Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	42	0.126 "	3.2 mm	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-40-090-30-001000	200 µin	5.08 µm	Brass Alloy	Male Pin			Header	Unshrouded			2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	90
Mill-Max Manufacturing Corp. 852-40-094-10-001000	200 µin	5.08 µm	Brass Alloy	Male Pin	0.118 in	3 mm	Header	Unshrouded	8.1 mm	0.319 in	2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	94
Mill-Max Manufacturing Corp. 852-40-074-10-001000	200 µin	5.08 µm	Brass Alloy	Male Pin	0.118 in	3 mm	Header	Unshrouded	8.1 mm	0.319 in	2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	74

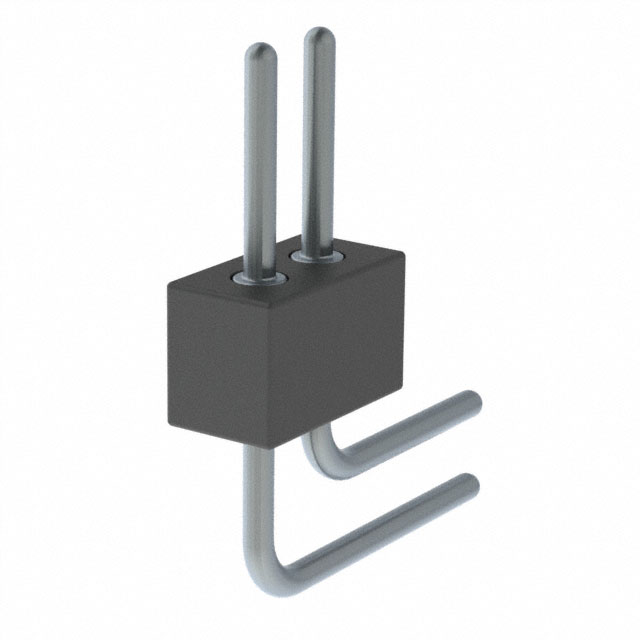

Mill-Max Manufacturing Corp. 852-40-002-20-001000	200 µin	5.08 µm	Brass Alloy	Male Pin			Header	Unshrouded			2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Right Angle Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular			Black	3 mm	0.118 in	2	0.126 "	3.2 mm	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-40-096-10-001000	200 µin	5.08 µm	Brass Alloy	Male Pin	0.118 in	3 mm	Header	Unshrouded	8.1 mm	0.319 in	2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	96
Mill-Max Manufacturing Corp. 852-40-090-20-001000	200 µin	5.08 µm	Brass Alloy	Male Pin			Header	Unshrouded			2	Solder	5.08 µm	200 µin	Nylon 4/6 Polyamide (PA46)	Right Angle Through Hole	Push-Pull	0.05 in	1.27 mm	All	Tin	Circular	1.27 mm	0.05 in	Black	3 mm	0.118 in	90	0.126 "	3.2 mm	3.05 mm	0.12 in
