SH10 Series

Catalog

PCBPLUG 10P 381MM HORIZONTAL 11A

Part	Number of Positions	Termination Style	Current - UL	Plug Wire Entry Angle	Number of Levels	Color	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Voltage - UL	Type	Mounting Type	Wire Gauge or Range - mm²	Current - IEC	Positions Per Level	Voltage - IEC	Contact Mating Finish	Pitch	Operating Temperature	Features	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Housing Material	Insulation Height	Contact Material	Wire Strip Length	Torque - Screw	Screw Size	Material Flammability Rating
Altech Corporation SH10-3,81	10	Screw - Rising Cage Clamp	8 A	180 °	1	Green	16 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)	1.5 mm²	8 A	10	130 V	Tin	0.15 in	105 °C
Altech Corporation SH10-10,16	10	Screw - Rising Cage Clamp	12 A	180 °	1	Green	14 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)	4 mm²	16 A	10	750 V	Nickel	0.4 in	105 °C	Retention Latches (Non-Wire Side)
Altech Corporation SH10-3,50	10	Screw - Rising Cage Clamp	11 A	180 °	1	Green	14 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)		8 A	10	160 V	Nickel	0.138 in			-30 °C	105 °C	1.5 mm²	0.25 mm²
Altech Corporation SH10-5,08-K	10	Screw - Rising Cage Clamp	12 A	180 °	1	Green	14 AWG	30 AWG	300 V	Male Pins Plug	Free Hanging (In-Line)	2.5 mm²	16 A	10	450 V	Nickel	5.08 mm	105 °C

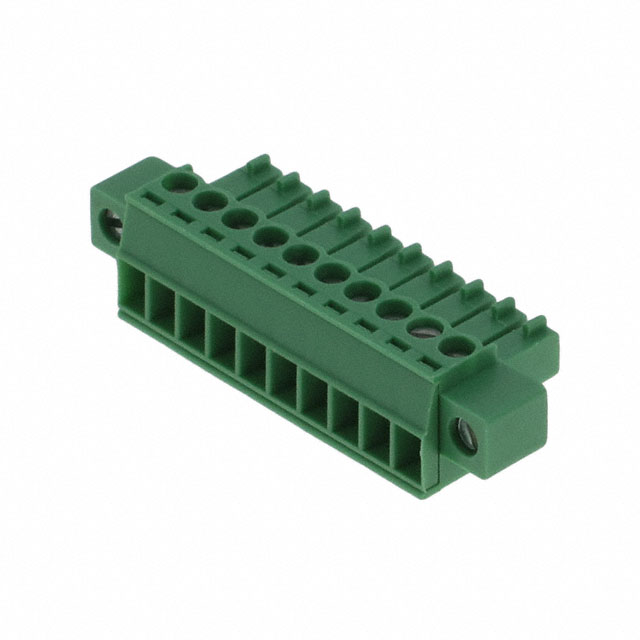

Altech Corporation SH10-3,50-K	10	Screw - Rising Cage Clamp	8 A	180 °	1	Green	14 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)		8 A	10	160 V	Nickel	0.138 in		Mating Flange	-30 °C	105 °C	1.5 mm²	0.25 mm²	Nylon PA Polyamide	0.437 in	Copper Alloy	8 mm	0.25 Nm	M2	UL94 V-0
Altech Corporation SH10-10,00	10	Screw - Rising Cage Clamp	12 A	180 °	1	Green	14 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)		16 A	10	750 V	Nickel	0.394 in	105 °C	Retention Latches (Non-Wire Side)			2.5 mm²	0.05 mm²

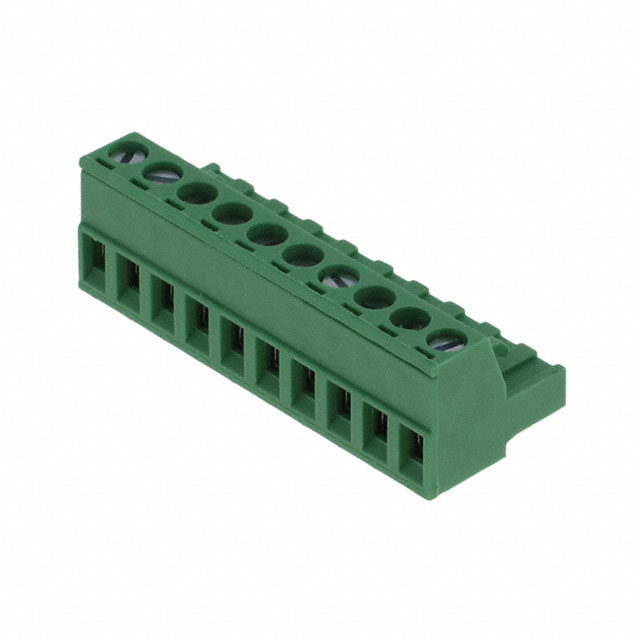

Altech Corporation SH10-5,08	10	Screw - Rising Cage Clamp	12 A	180 °	1	Green	14 AWG	30 AWG	300 V	Female Sockets Plug	Free Hanging (In-Line)	2.5 mm²	16 A	10	450 V	Nickel	5.08 mm		Retention Latches (Non-Wire Side)					Nylon PA Polyamide	0.61 in	Brass	7.5 mm	0.5 Nm	M3	UL94 V-0
Altech Corporation SH10-10,16-K	10	Screw - Rising Cage Clamp	12 A	180 °	1	Green	14 AWG	30 AWG	600 V	Female Sockets Plug	Free Hanging (In-Line)		16 A	10	750 V	Nickel	0.4 in	105 °C	Mating Flange			2.5 mm²	0.05 mm²
