171576 Series

Impact 100 Ohm 6-Pair Right-Angle Orthogonal Direct Header, Bottom Guided, with Outrigger, 12 Column, 72 Differential Pair, 270˚Mate Position, Pin Length 5.50mm, Plated Through-Hole Dimension 0.39mm, Lead Free

Manufacturer: Molex

Catalog

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Columns	Connector Style	Termination	Contact Layout, Typical	Contact Finish	Number of Positions	Connector Type

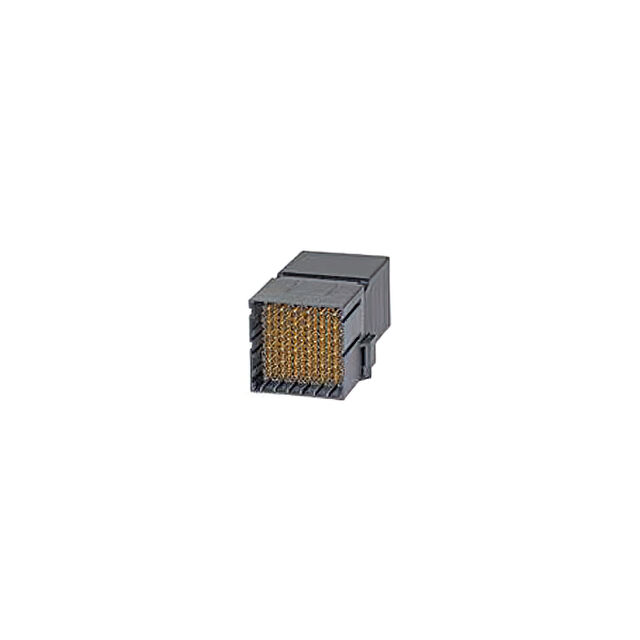

Molex 1715761215	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715769205	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact Guide Bottom	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715761214	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins

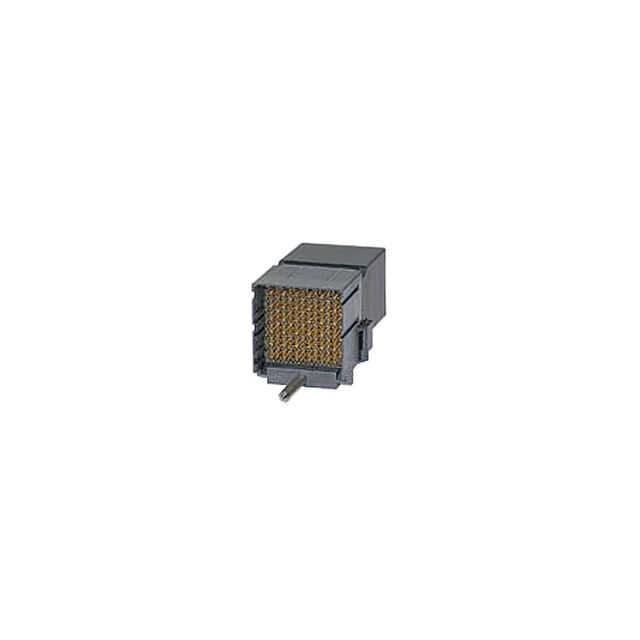

Molex 1715769208	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact Guide Bottom	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins

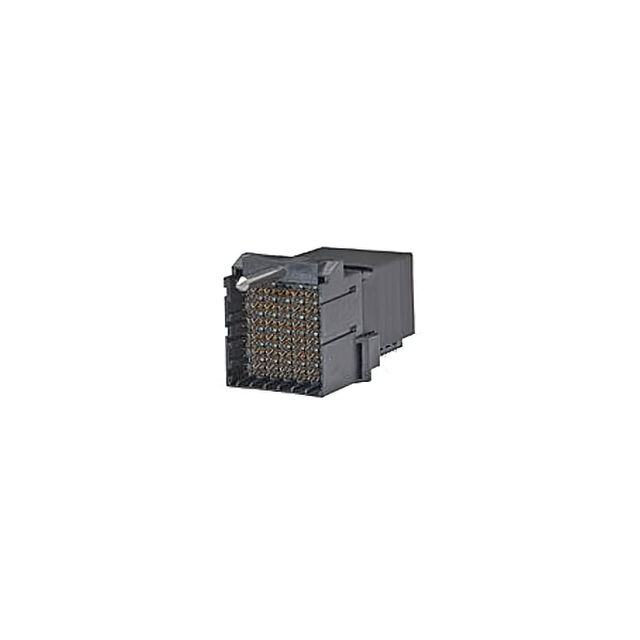

Molex 1715767204	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Guide Top Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715761217	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715769238	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact Guide Bottom	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715767208	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Guide Top Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715761218	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
Molex 1715769207	-55 C	85 °C	30 VDC	UL94 V-0	All	Board Edge Right Angle Through Hole	Black	30 Áin	0.76 Ám	18	12	Impact Guide Bottom	Press-Fit	72 Differential Pairs	Gold	216	Header Male Pins
