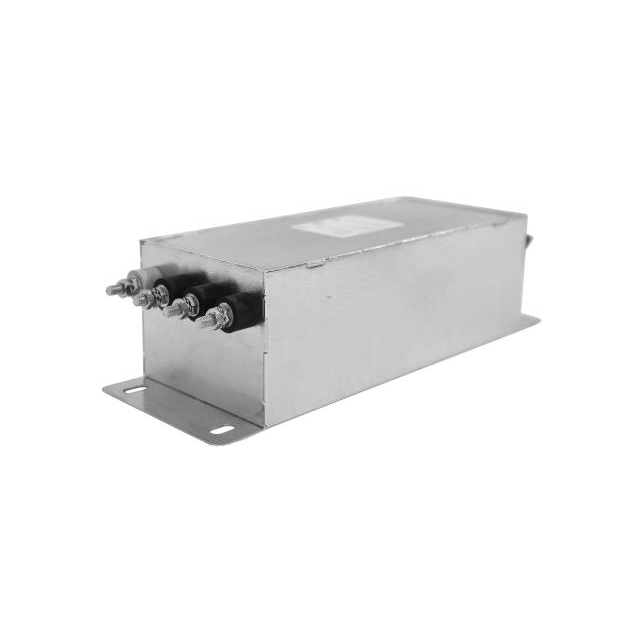

RP425 Series

Catalog

LINE FILTER 480VAC 300A CHASSIS

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current	Configuration	Mounting Type	Approval Agency	Voltage - Rated AC	Filter Type	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Applications
Astrodyne TDI RP425-300-0-S	100 °C	-25 °C	300 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Threaded Post (M12)	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-80-1000-S	100 °C	-25 °C	80 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Threaded Post (M6)	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-50-1000-C	100 °C	-25 °C	50 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Terminal Block	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-50-2000-S	100 °C	-25 °C	50 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-30-1000-W	100 °C	-25 °C	30 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Wire Leads	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-200-2000-S	100 °C	-25 °C	200 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Threaded Post	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-15-0-W	100 °C	-25 °C	15 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Wire Leads	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-200-10-C	100 °C	-25 °C	200 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Terminal Block	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-200-100-W	100 °C	-25 °C	200 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Wire Leads	60 Hz	50 Hz	3.5 kV	General Purpose
Astrodyne TDI RP425-15-1000-W	100 °C	-25 °C	15 A	Two Stage	Chassis Mount	CE CSA cURus ENEC SEMKO	480 V	Three Phase (Wye)	Wire Leads	60 Hz	50 Hz	3.5 kV	General Purpose
