PRMAC Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

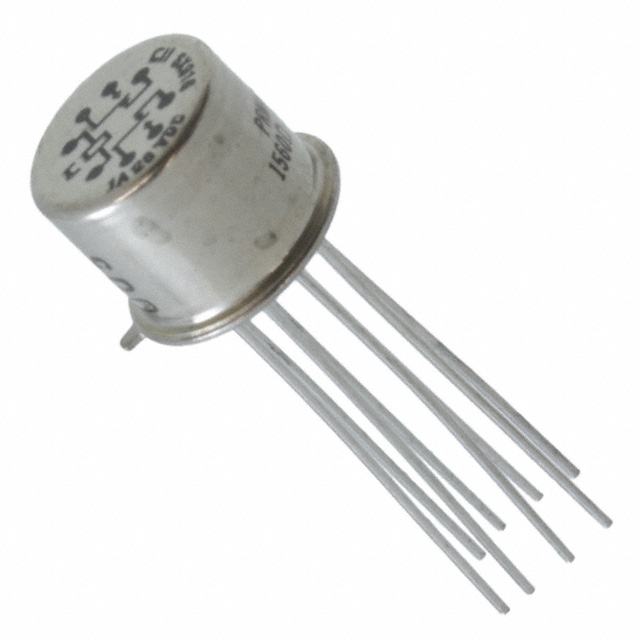

RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Current | Contact Rating (Current) | Release Time | Termination Style | Features | Coil Resistance | Contact Form | Load - Max Switching | Coil Type | Coil Voltage | Contact Material | Must Release Voltage | Must Operate Voltage | Relay Type | Mounting Type | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 100 mA | 1 A | 4 ms | PC Pin | Diode | 50 Ohms | DPDT (2 Form C) | 28 W 115 VA | Non Latching | 5 VDC | Gold (Au) Silver Palladium (AgPd) | 0.22 VDC | 2.7 VDC | General Purpose | Through Hole | 2 ms | 125 °C | -65 ░C | 28 VDC 115 VAC | Sealed - Hermetically |
TE Connectivity Aerospace, Defense and Marine | 17 mA | 1 A | 1.5 ms | PC Pin | 1560 Ohms | DPDT (2 Form C) | 28 W 115 VA | Non Latching | 26.5 VDC | Gold (Au) Silver Palladium (AgPd) | 14.2 VDC | General Purpose | Through Hole | 2 ms | 125 °C | -65 ░C | 28 VDC 115 VAC | Sealed - Hermetically | ||
 TE Connectivity Aerospace, Defense and Marine | 17 mA | 1 A | 1.5 ms | PC Pin | 1560 Ohms | DPDT (2 Form C) | Non Latching | 26.5 VDC | 14.2 VDC | General Purpose | Through Hole | 2 ms | 125 °C | -65 ░C | 28 VDC | Sealed - Hermetically | ||||
TE Connectivity Aerospace, Defense and Marine | 20.5 mA | 1 A | 1.5 ms | PC Pin | 880 Ohms | DPDT (2 Form C) | 28 W 115 VA | Non Latching | 18 VDC | Gold (Au) Silver Palladium (AgPd) | 0.93 VDC | 10.5 VDC | General Purpose | Through Hole | 2 ms | 125 °C | -65 ░C | 28 VDC 115 VAC | Sealed - Hermetically |
