PRPC037 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 74POS 2.54MM
| Part | Contact Finish Thickness - Post | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Number of Rows [custom] | Insulation Height | Insulation Height | Insulation Material | Connector Type | Termination | Material Flammability Rating | Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Contact Material | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Shape | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Contact Type | Overall Contact Length | Overall Contact Length | Mounting Type | Fastening Type | Number of Rows | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | 0.1 in | 2.54 mm | Gold | 2 | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.23 in | 5.84 mm | 3 A | Brass | 5.84 mm | 0.23 " | Flash | Square | All | Gold | 74 | Male Pin | 0.558 in | 14.18 mm | Through Hole | Push-Pull | |||

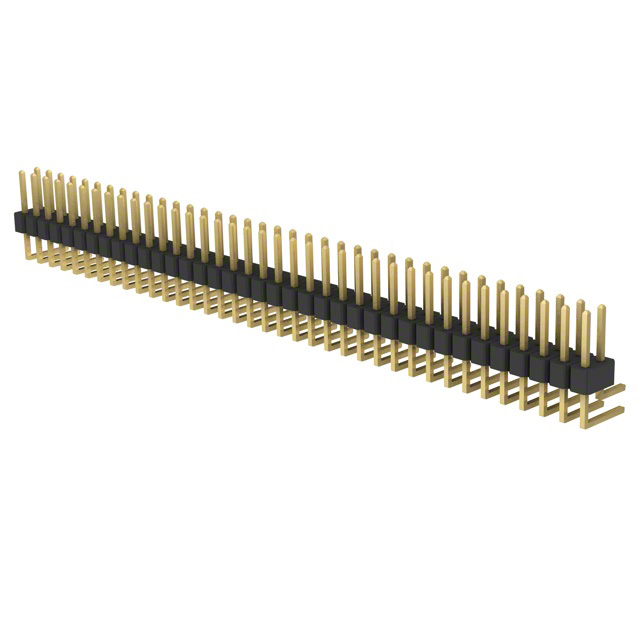

 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | 0.1 in | 2.54 mm | Gold | 2 | 0.197 " | 5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.23 in | 5.84 mm | 3 A | Brass | 3.05 mm | 0.12 in | Flash | Square | All | Gold | 74 | Male Pin | Right Angle Through Hole | Push-Pull | |||||

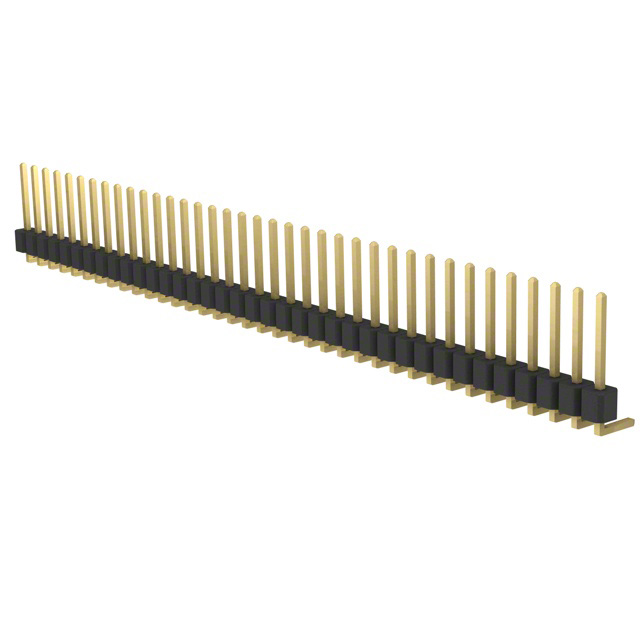

 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | Gold | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.318 in | 8.08 mm | 3 A | Brass | 3.05 mm | 0.12 in | Flash | Square | All | Gold | 37 | Male Pin | Right Angle Through Hole | Push-Pull | 1 | |||||||

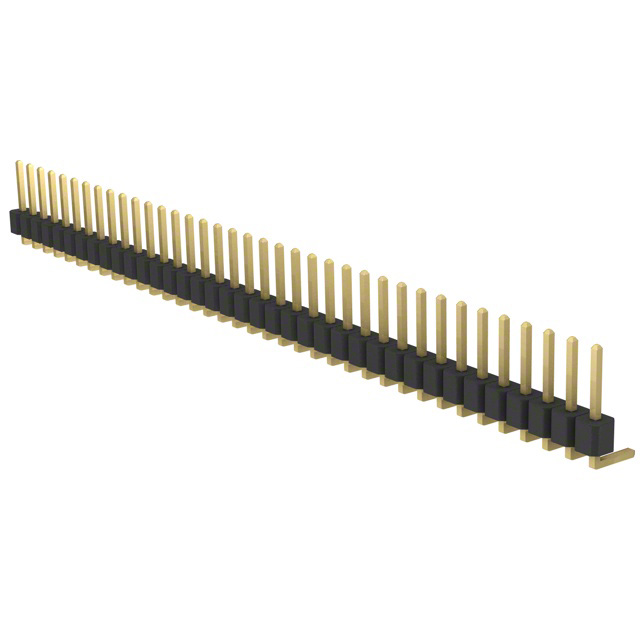

 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | Gold | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.23 in | 5.84 mm | 3 A | Brass | 3.05 mm | 0.12 in | Flash | Square | All | Gold | 37 | Male Pin | Right Angle Through Hole | Push-Pull | 1 | |||||||
 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | Gold | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.23 in | 5.84 mm | 3 A | Brass | 3.05 mm | 0.12 in | Flash | Square | All | Gold | 37 | Male Pin | 0.448 in | 11.39 mm | Through Hole | Push-Pull | 1 | |||||
 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | Gold | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.318 in | 8.08 mm | 3 A | Brass | 3.05 mm | 0.12 in | Flash | Square | All | Gold | 37 | Male Pin | Through Hole | Push-Pull | 1 | 13.63 mm | 0.537 in | |||||
 Sullins Connector Solutions | Flash | Unshrouded | 0.1 " | 2.54 mm | Black | Gold | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | Header Breakaway | Solder | UL94 V-0 | Board to Board Cable | -40 C | 105 ░C | 0.23 in | 5.84 mm | 3 A | Brass | 8.13 mm | 0.32 in | Flash | Square | All | Gold | 37 | Male Pin | Through Hole | Push-Pull | 1 | 16.47 mm | 0.648 in |
