284511 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8 POS TERMI-BLOK PLUG C. VITI

Part	Material Flammability Rating	Number of Positions	Contact Mating Finish	Mounting Type	Termination Style	Positions Per Level	Features	Screw Size	Wire Strip Length [Min]	Wire Strip Length [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Torque - Screw	Torque - Screw	Current - UL	Pitch [x]	Pitch [x]	Type	Contact Material	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Color	Voltage - UL	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 284511-8	UL94 V-0	8	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	8	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V
TE Connectivity Raychem Cable Protection 1-284511-6	UL94 V-0		Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	16	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V	16

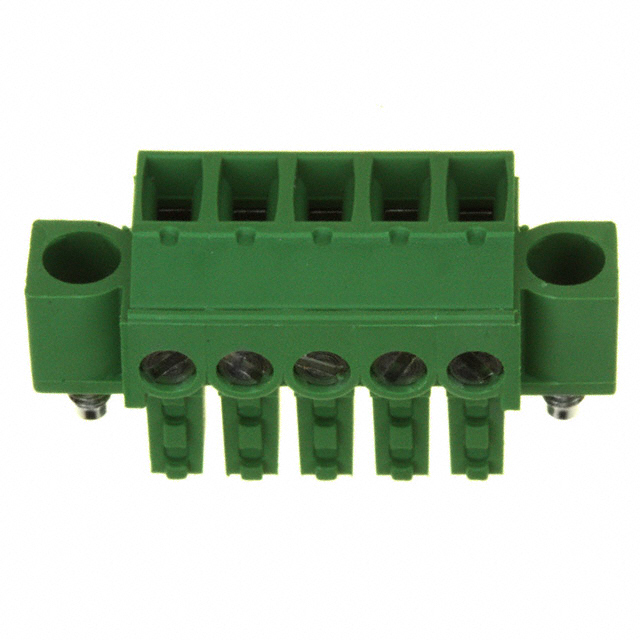

TE Connectivity Raychem Cable Protection 284511-5	UL94 V-0		Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V
TE Connectivity Raychem Cable Protection 1-284511-5	UL94 V-0	15	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	15	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V
TE Connectivity Raychem Cable Protection 1-284511-4	UL94 V-0	14	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	14	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V

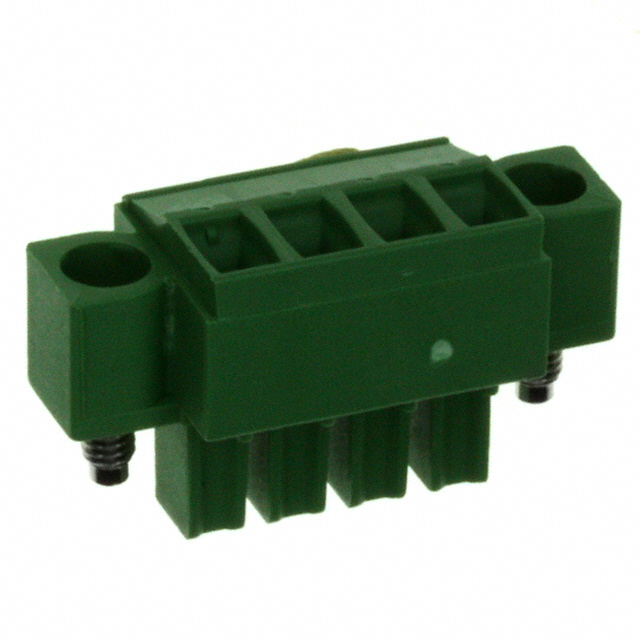

TE Connectivity Raychem Cable Protection 284511-4	UL94 V-0	4	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	4	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm	0.05 mm²	2 mm²	14 AWG	30 AWG	Green	300 V
TE Connectivity Raychem Cable Protection 1-284511-1	UL94 V-0	11	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	11	Mating Flange	M2	5 mm	6 mm	-40 °C	110 °C	1	2.7 Lb-In	0.31 Nm	11 A	0.15 in	3.81 mm	Plug Female Sockets	Phosphor Bronze	0.437 in	11.1 mm			14 AWG	30 AWG	Green	300 V		2 mm˛	0.05 mm˛
