PBC28 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 28POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Shape	Contact Finish - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Material	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Fastening Type	Shrouding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Number of Positions Loaded	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PBC28SFCN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	8.13 mm	0.32 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	1	3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	18.75 mm	0.738 in	Through Hole	8.08 mm	0.318 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	28	All
Sullins Connector Solutions PBC28SAGN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	18.29 mm	0.72 "	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	1	3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	26.67 mm		Through Hole	5.84 mm	0.23 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	28	All	1.05 in

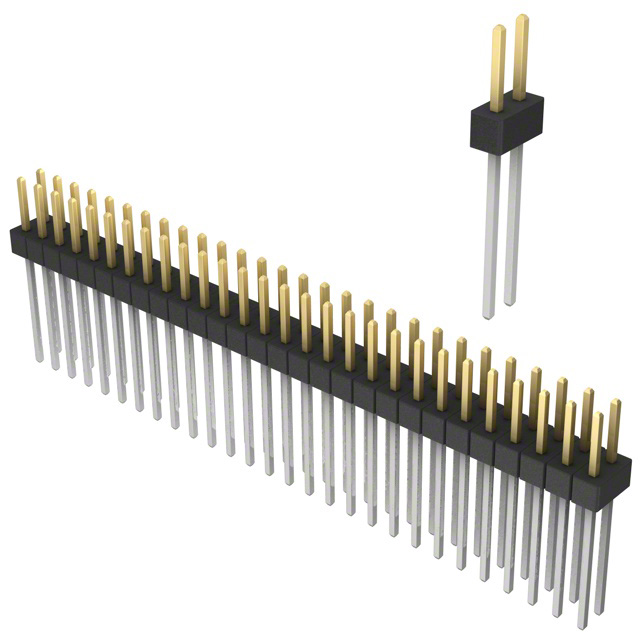

Sullins Connector Solutions PBC28DAEN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	13.21 mm	0.52 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	21.59 mm		Through Hole	5.84 mm	0.23 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All	0.85 in	0.1 in	2.54 mm	2

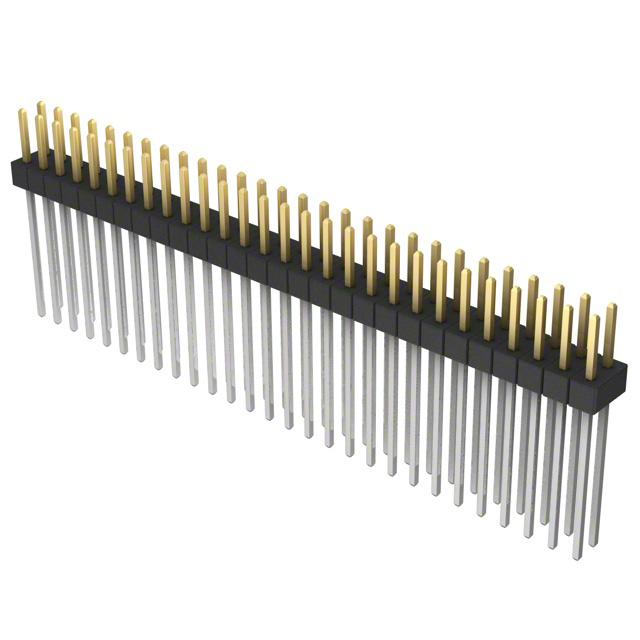

Sullins Connector Solutions PBC28DAFN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black			-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	24.13 mm		Through Hole	5.84 mm	0.23 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All	0.95 in	0.1 in	2.54 mm	2	15.75 mm	0.62 "
Sullins Connector Solutions PBC28DBAN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	2.54 mm	0.1 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A			Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin			Right Angle Through Hole	5.84 mm	0.23 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All		0.1 in	2.54 mm	2			6.1 mm	0.24 in
Sullins Connector Solutions PBC28DFDN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	10.67 mm	0.42 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	21.29 mm		Through Hole	8.08 mm	0.318 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All	0.838 in	0.1 in	2.54 mm	2

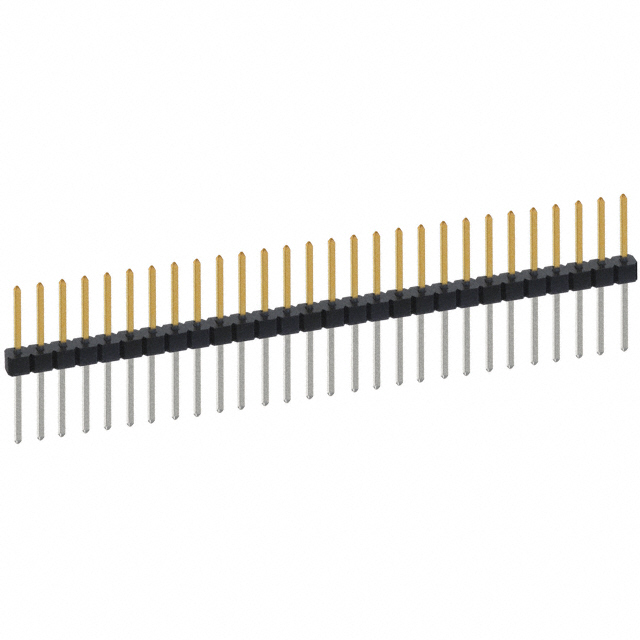

Sullins Connector Solutions PBC28SFBN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	5.58 mm	0.22 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	1	3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	16.21 mm		Through Hole	8.08 mm	0.318 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	28	All	0.638 in

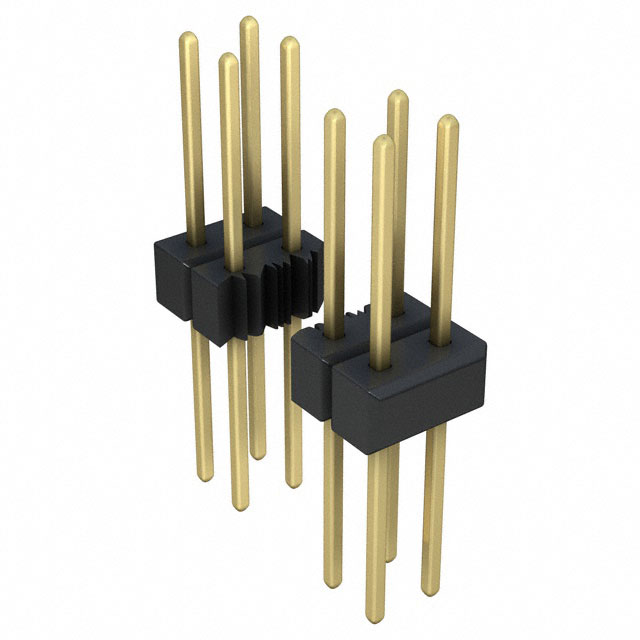

Sullins Connector Solutions PBC28DFCN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	8.13 mm	0.32 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	18.75 mm	0.738 in	Through Hole	8.08 mm	0.318 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All		0.1 in	2.54 mm	2
Sullins Connector Solutions PBC28DFEN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	13.21 mm	0.52 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)		3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	23.83 mm		Through Hole	8.08 mm	0.318 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	56	All	0.938 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PBC28SAEN	2.54 µm	100 µin	Board to Board Cable	Square	Gold	Black	13.21 mm	0.52 in	-65 ░C	125 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	1	3 A	0.1 in	2.54 mm	Push-Pull	Unshrouded	Header Breakaway	0.25 µm	10 µin	21.59 mm		Through Hole	5.84 mm	0.23 in	Male Pin	Tin	Solder	0.1 "	2.54 mm	Phosphor Bronze	28	All	0.85 in
