6432.0153 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

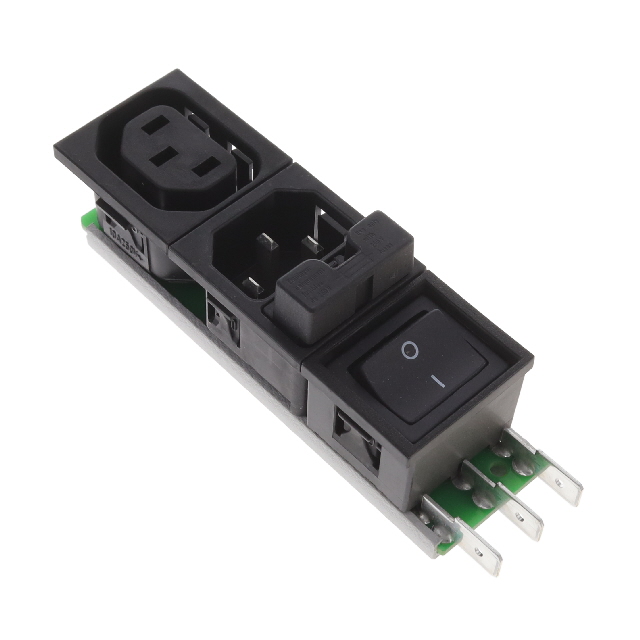

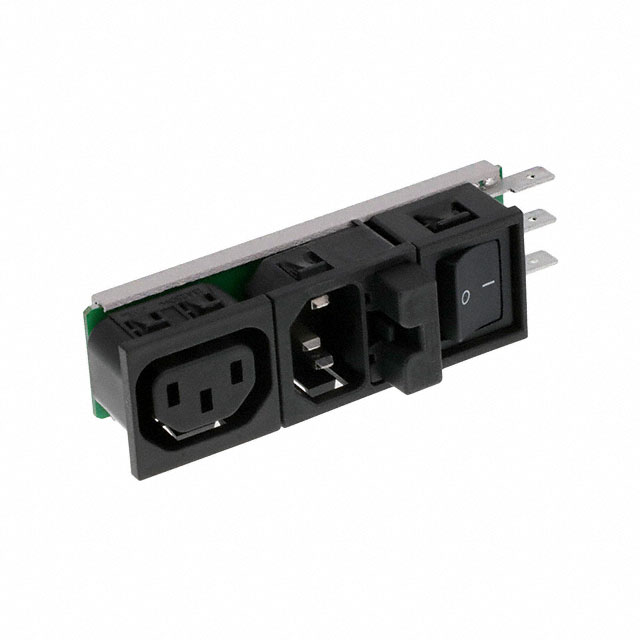

PWR ENT IN/OUT IEC320-2-2F PNL
| Part | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Mounting Type | Number of Positions | Panel Thickness | Panel Thickness | Accomodates a Fuse | Approval Agency | Connector Type | Termination | Termination | Termination | Filter Type | Fuse Holder, Drawer | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Style | Switch Features | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 250 VAC | 10 A | Panel Mount Snap-In | 3 | 0.079 in | 2 mm | CSA ENEC UL | Receptacle Female Sockets Receptacle Male Blades | 6.3 mm | Quick Connect | 0.25 " | Unfiltered - Commercial | Fuse Holder | 90.6 mm | 27.6 mm | IEC 320-2-2/F IEC 320-C14 | Switch On-Off | UL94 V-0 | |
 SCHURTER Inc. | 250 VAC | 10 A | Panel Mount Snap-In | 3 | 0.118 " | 3 mm | CSA ENEC UL | Receptacle Female Sockets Receptacle Male Blades | 6.3 mm | Quick Connect | 0.25 " | Unfiltered - Commercial | Fuse Holder | 90.6 mm | 27.6 mm | IEC 320-2-2/F IEC 320-C14 | Switch On-Off | UL94 V-0 |
