SST1.5 Series

Catalog

CBL TIE 2PC LOCK BLACK 18LB 5.5"

Part	Features	Length - Actual [x]	Length - Actual	Length - Actual	Width	Width	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Material	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Mounting Type	Length - Approximate [x]	Color	Shelf Life Start	Shelf Life	Width [y]	Length - Actual	Length - Approximate	Width [x]	Width [x]
Panduit Corp SST1.5M-M30	2-Piece Design Heat Stabilized	0.458 ft	139.7 mm	5.5 in	2.41 mm	0.095 in	31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	18 lbs	8.16 kg	Locking Standard	Free Hanging (In-Line)	5.5 in	Black

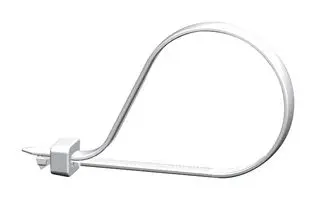

Panduit Corp SST1.5M-M	2-Piece Design	0.458 ft	139.7 mm	5.5 in	2.41 mm	0.095 in	31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	18 lbs	8.16 kg	Locking Standard	Free Hanging (In-Line)	5.5 in	Natural	Date of Manufacture	48 Months
Panduit Corp SST1.5I-M0	2-Piece Design Weather Resistant		134.62 mm	5.3 "	3.43 mm		31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	40 lbs	18.14 kg	Locking Standard	Free Hanging (In-Line)		Black	Date of Manufacture	48 Months	0.135 "	0.442 ft	5.25 in
Panduit Corp SST1.5I-M	2-Piece Design		134.62 mm	5.3 "	3.43 mm		31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	40 lbs	18.14 kg	Locking Standard	Free Hanging (In-Line)		Natural	Date of Manufacture	48 Months	0.135 "	0.442 ft	5.25 in

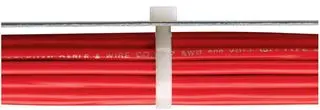

Panduit Corp SST1.5I-C	2-Piece Design		134.62 mm	5.3 "	3.43 mm		31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	40 lbs	18.14 kg	Locking Standard	Free Hanging (In-Line)		Natural	Date of Manufacture	48 Months	0.135 "	0.442 ft	5.25 in
Panduit Corp SST1.5S-M0	2-Piece Design Weather Resistant		146.05 mm	5.75 in			31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	50 lbs	22.68 kg	Locking Standard	Free Hanging (In-Line)		Black				0.479 ft	5.75 in	4.57 mm	0.18 in
Panduit Corp SST1.5M-C	2-Piece Design	0.458 ft	139.7 mm	5.5 in	2.41 mm	0.095 in	31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	18 lbs	8.16 kg	Locking Standard	Free Hanging (In-Line)	5.5 in	Natural
Panduit Corp SST1.5S-M	2-Piece Design		146.05 mm	5.75 in			31.75 mm	1.25 in	Polyamide (PA66) Nylon 6/6	50 lbs	22.68 kg	Locking Standard	Free Hanging (In-Line)		Natural				0.479 ft	5.75 in	4.57 mm	0.18 in
