OSTTF05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

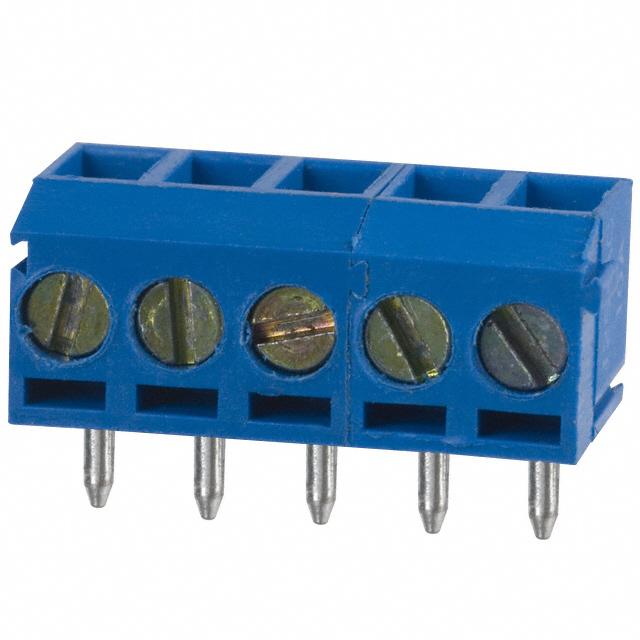

TERM BLK 5P TOP ENTRY 3.5MM PCB
| Part | Torque - Screw | Torque - Screw | Housing Material | Screw Thread | Clamp Material - Plating [custom] | Contact Material - Plating | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Features | Current | Mounting Type | Mating Orientation | Positions Per Level | Number of Levels | Wire Termination | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.7 Lb-In | 0.2 Nm | Thermoplastic | M2 | Stainless Steel | Brass - Tin Plated | Steel - Zinc Plated | -30 ░C | 105 ░C | 3.5 mm | 0.138 " | Interlocking (Side) | 10 A | Through Hole | Vertical with Board | 5 | 1 | Screw - Leaf Spring Wire Guard | 125 V | 26 AWG | 16 AWG | Blue |
