M2027TJ Series

Catalog

SWITCH ROCKER SP3T 6A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Actuator Marking	Actuator Type	Features	Switch Function	Voltage Rating - DC	Termination Style	Color - Actuator/Cap
NKK Switches M2027TJW02	50000 Cycles	25000 Steps	125 V	3 A 6 A	CSA UL	85 °C	-30 ░C	Panel Mount Snap-In	15.9 mm	13.1 mm	SP3T	Varies by Cap	Actuator Arm Cap Required	Jumper needed to achieve triple throw	On-On-Mom	30 V	Quick Connect - 0.062" (1.5mm)
NKK Switches M2027TJW02-FB-1B	50000 Cycles	25000 Steps	125 V	3 A 6 A	CSA UL	85 °C	-30 ░C	Panel Mount Snap-In	15.9 mm	13.1 mm	SP3T	No Marking	Concave	Jumper needed to achieve triple throw	On-On-Mom	30 V	Quick Connect - 0.062" (1.5mm)	White

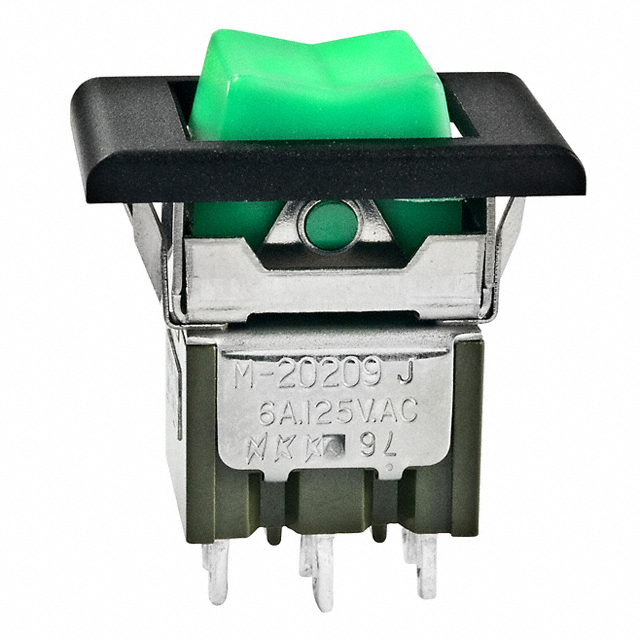

NKK Switches M2027TJW01-FF-1A	50000 Cycles	25000 Steps	125 V	3 A 6 A	CSA UL	85 °C	-30 ░C	Panel Mount Snap-In	15.9 mm	13.1 mm	SP3T	No Marking	Concave	Jumper needed to achieve triple throw	On-On-Mom	30 V	Solder Lug	Green
NKK Switches M2027TJW01-GA-1A	50000 Cycles	25000 Steps	125 V	3 A 6 A	CSA UL	85 °C	-30 ░C	Panel Mount Snap-In	15.9 mm	13.1 mm	SP3T	No Marking	Paddle	Jumper needed to achieve triple throw	On-On-Mom	30 V	Solder Lug	Black
NKK Switches M2027TJW01-FC-1A	50000 Cycles	25000 Steps	125 V	3 A 6 A	CSA UL	85 °C	-30 ░C	Panel Mount Snap-In	15.9 mm	13.1 mm	SP3T	No Marking	Concave	Jumper needed to achieve triple throw	On-On-Mom	30 V	Solder Lug	Red
NKK Switches M2027TJW01-FA-3A-CF
