316-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 66POS 0.156
| Part | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Card Type | Number of Positions | Gender | Number of Rows [custom] | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Positions/Bay/Row | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | |

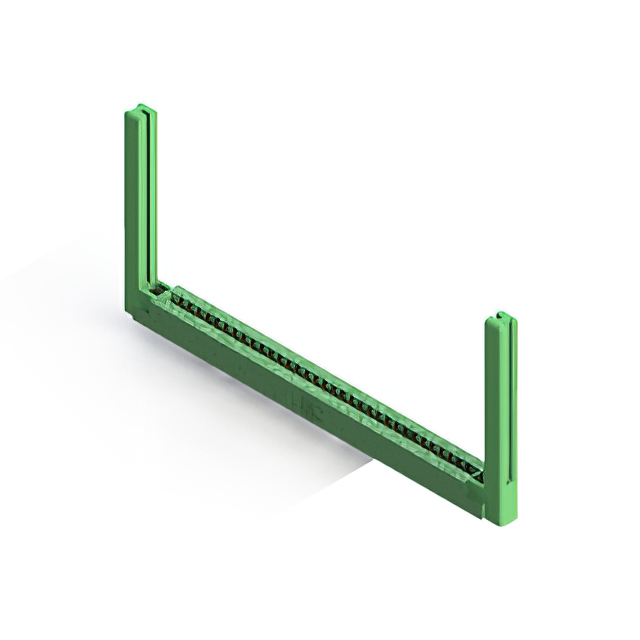

 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Panel Mount Through Hole | |||

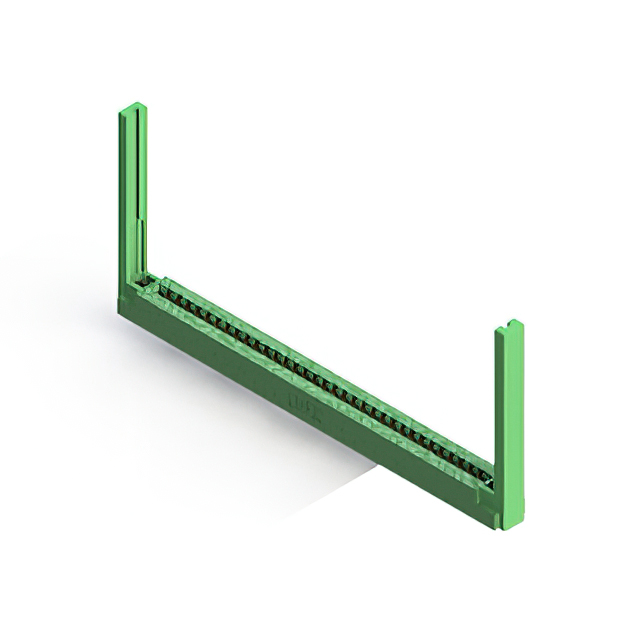

 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder Eyelet(s) | -40 C | 105 ░C | Green | Tin | Copper Alloy | Panel Mount | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Tin | Copper Alloy | Through Hole | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder Eyelet(s) | -40 C | 105 ░C | Green | Tin | Copper Alloy | Panel Mount | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Panel Mount Through Hole | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Non Specified - Dual Edge | 66 | Female | 2 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 33 | Solder | -40 C | 105 ░C | Green | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Through Hole |
