1986722 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PLUGGABLE TERMINAL BLOCKS 3.81MM L/HAND 15 POS STR SPRING PLG

Part	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Voltage - UL	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Current - UL	Contact Material	Number of Levels	Number of Positions	Termination Style	Positions Per Level	Housing Material	Type	Color	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

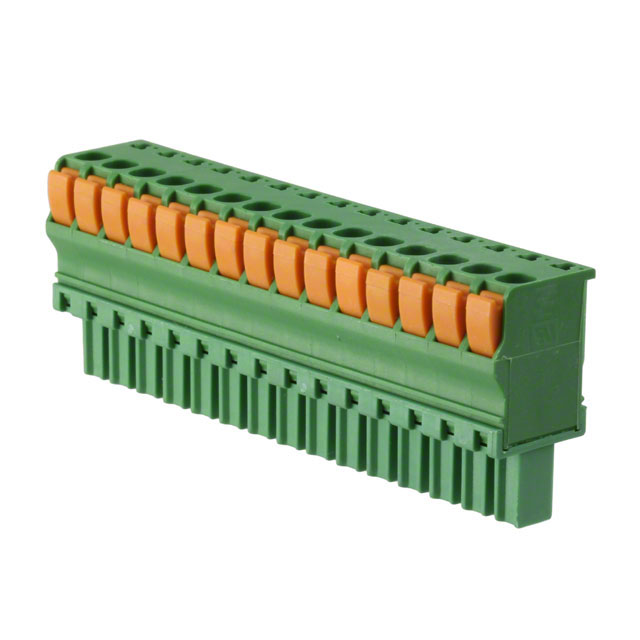

TE Connectivity Raychem Cable Protection 1-1986722-5	Side Stacking	2 mm˛	0.05 mm˛	14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	15	Push-In Spring Screwless - Leg Spring	15	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0

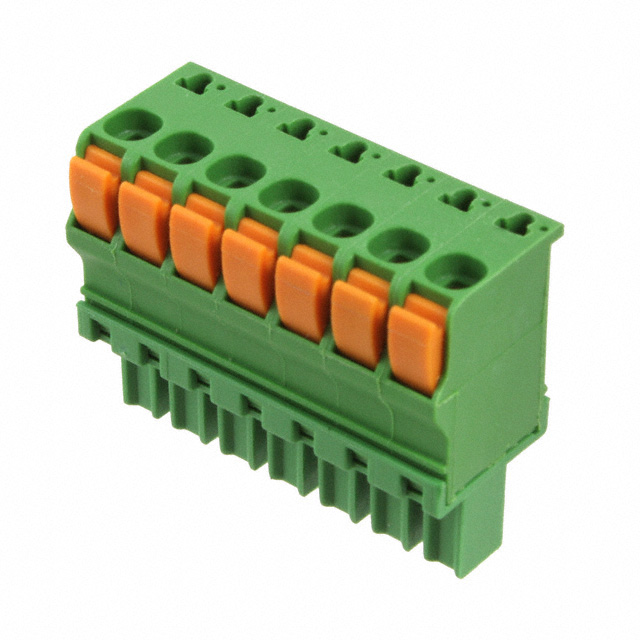

TE Connectivity Raychem Cable Protection 1986722-7	Side Stacking			14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	7	Push-In Spring Screwless - Leg Spring	7	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0	0.05 mm²	2 mm²

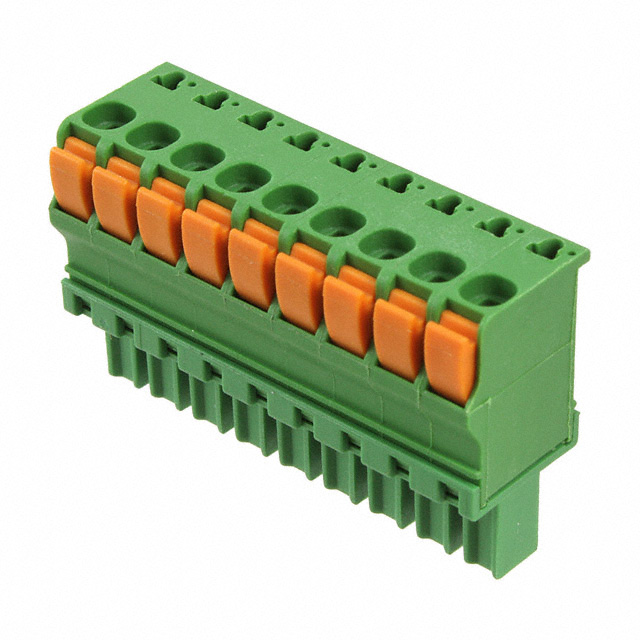

TE Connectivity Raychem Cable Protection 1986722-9	Side Stacking			14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	9	Push-In Spring Screwless - Leg Spring	9	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0	0.05 mm²	2 mm²

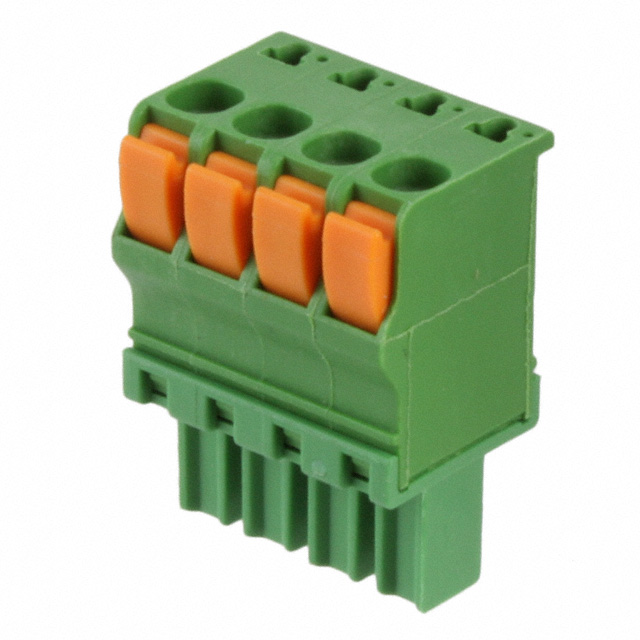

TE Connectivity Raychem Cable Protection 1986722-4	Side Stacking	2 mm˛	0.05 mm˛	14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	4	Push-In Spring Screwless - Leg Spring	4	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0

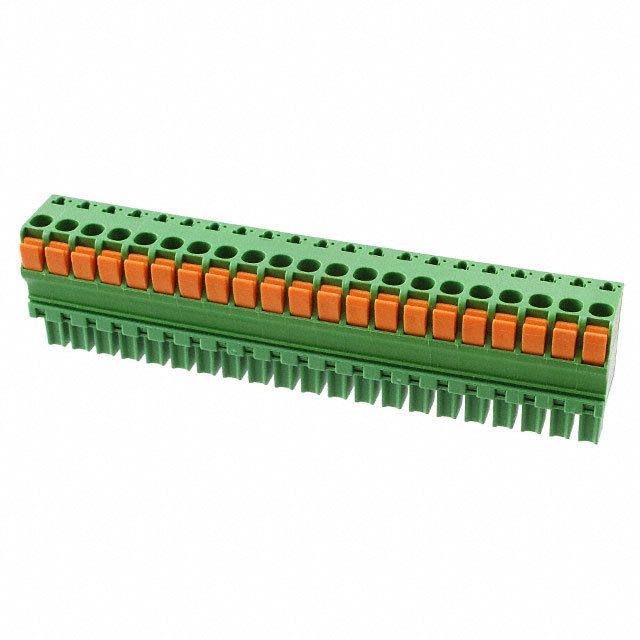

TE Connectivity Raychem Cable Protection 2-1986722-1	Side Stacking	2 mm˛	0.05 mm˛	14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	21	Push-In Spring Screwless - Leg Spring	21	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0
TE Connectivity Raychem Cable Protection 2-1986722-3	Side Stacking			14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	23	Push-In Spring Screwless - Leg Spring	23	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0	0.05 mm²	2 mm²
TE Connectivity Raychem Cable Protection 1-1986722-0	Side Stacking	2 mm˛	0.05 mm˛	14 AWG	30 AWG	Free Hanging (In-Line)	300 V	11.66 mm	0.459 in	0.15 in	3.81 mm	-40 °C	110 °C	Tin	9 A	Copper Alloy	1	10	Push-In Spring Screwless - Leg Spring	10	Polyamide (PA) Nylon	Plug Female Sockets	Green	UL94 V-0
