AFB0912 Series

Catalog

FAN AXIAL 92X15MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Static Pressure	Static Pressure	RPM	Width [y]	Voltage - Rated	Weight	Weight	Noise	Termination	Approval Agency	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection	Weight [custom]	Weight [custom]

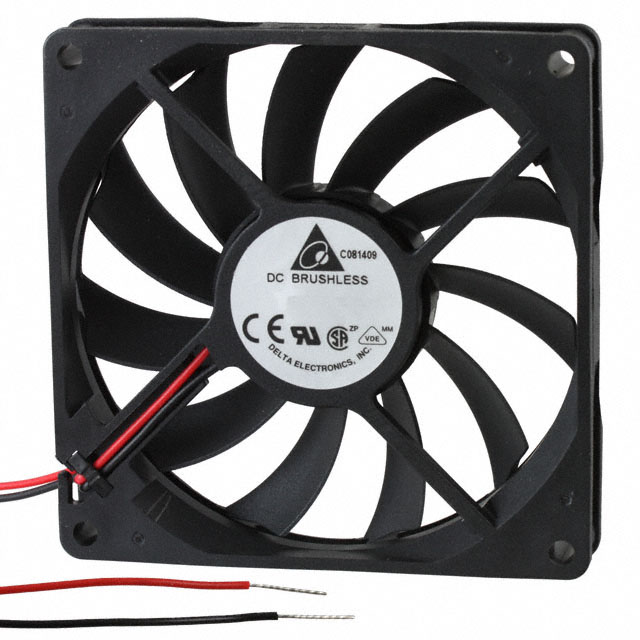

Delta Electronics AFB0912LB	70000 Hrs	Plastic	Plastic	100 mA	5 VDC	13.8 VDC	1.2 W	Ball	92 mm	92 mm	0.731 m³/min	26.1 CFM	11.2 Pa	0.045 in H2O	1800 RPM	15 mm	12 VDC	0.154 lb	69.85 g	25 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C
Delta Electronics AFB0912SH-AF00	70000 Hrs	Plastic	Plastic	750 mA	5 VDC	12.6 VDC	9 W	Ball	92 mm	92 mm	2.87 m³/min	102.6 CFM	131 Pa	0.526 in H2O	4800 RPM	25.4 mm	12 VDC	0.267 lb	121.11 g	53 dB	3 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0912L	70000 Hrs	Plastic	Plastic	70 mA	7 V	13.8 VDC	840 mW	Ball	92 mm	92 mm	1.04 mł/min	37.1 CFM	24.9 Pa	0.1 in H2O	2100 RPM	25.4 mm	12 VDC	0.219 lb	99.34 g	25 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C
Delta Electronics AFB0912H-TA50	70000 Hrs	Plastic	Plastic	0.21 A	5 VDC	13.8 VDC	2.52 W	Ball	92 mm	92 mm	1.68 m³/min	59.9 CFM	47.6 Pa	0.191 in H2O	2800 RPM	25.4 mm	12 VDC	0.267 lb	121.11 g	37 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C		IP55 - Dust Protected Water Resistant
Delta Electronics AFB0912MB	70000 Hrs	Plastic	Plastic		5 VDC	13.8 VDC	1.56 W	Ball	92 mm	92 mm	1.02 m³/min	36.5 CFM	19.7 Pa	0.079 in H2O	2300 RPM	15 mm	12 VDC	0.154 lb	69.85 g	32.5 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C
Delta Electronics AFB0912LD-F00	70000 Hrs	Plastic	Plastic		7 V	13.8 VDC	960 mW	Ball	92 mm	92 mm	1.15 m³/min	41 CFM	20.9 Pa	0.084 in H2O	2100 RPM	20 mm	12 VDC			28.5 dB	3 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)		0.203 lb	92.08 g
Delta Electronics AFB0912LD	70000 Hrs	Plastic	Plastic		7 V	13.8 VDC	960 mW	Ball	92 mm	92 mm	1.15 m³/min	41 CFM	20.9 Pa	0.084 in H2O	2100 RPM	20 mm	12 VDC			28.5 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C			0.203 lb	92.08 g

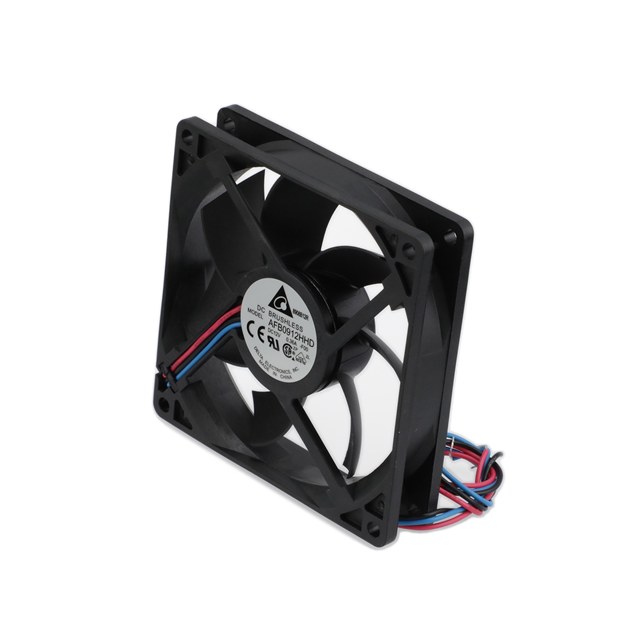

Delta Electronics AFB0912HHD-F00		Plastic	Plastic	0.24 A	7 V	13.8 VDC	2.88 W	Ball	92 mm	92 mm	1.67 m³/min	59.5 CFM	41.3 Pa	0.166 in H2O	3000 RPM	20 mm	12 VDC			38 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial			Locked Rotor Protection Speed Sensor (Tach)		0.203 lb	92.08 g

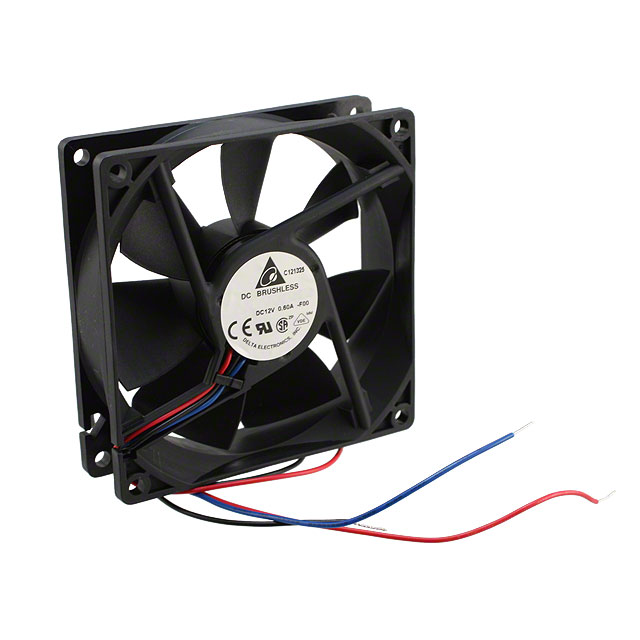

Delta Electronics AFB0912VH-F00	70000 Hrs	Plastic	Plastic	400 mA	7 V	13.8 VDC	4.8 W	Ball	92 mm	92 mm	1.9 m³/min	67.8 CFM	75.2 Pa	0.302 in H2O	3800 RPM	25.4 mm	12 VDC	0.218 lb	98.88 g	45 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0912M-AF00	70000 Hrs	Plastic	Plastic	120 mA	5 VDC	13.8 VDC	1.44 W	Ball	92 mm	92 mm	1.39 m³/min	49.5 CFM	33.1 Pa	0.133 in H2O	2300 RPM	25.4 mm	12 VDC	0.267 lb	121.11 g	31.5 dB	3 Wire Leads	CE CSA UL VDE	Tubeaxial	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
