BC-AG Series

Manufacturer: Boxco

Catalog

BOX ABS LGT GRY 6.3"L X 3.15"W

Part	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Material	Design	Material Flammability Rating	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Features	Color	Ratings	Thickness	Thickness	Height	Height	Thickness	Area (L x W) [custom]	Area (L x W) [custom]

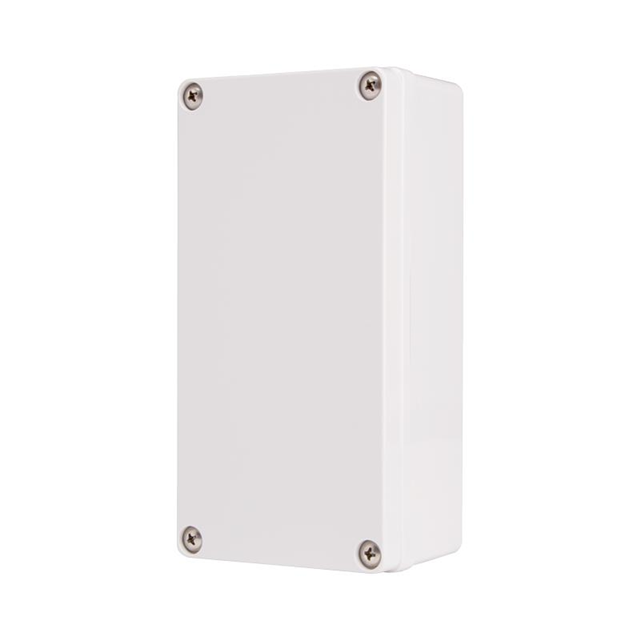

Boxco BC-AGS-081605	19.8 in˛	128 cm˛	Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB	55 mm	2.165 in	3.15 in	6.299 "	160 mm	80 mm	128 cm²	19.8 in²	Sealing Gasket Wall Mount	Light Gray	6 IP66 IP67 NEMA 4X UL 508A

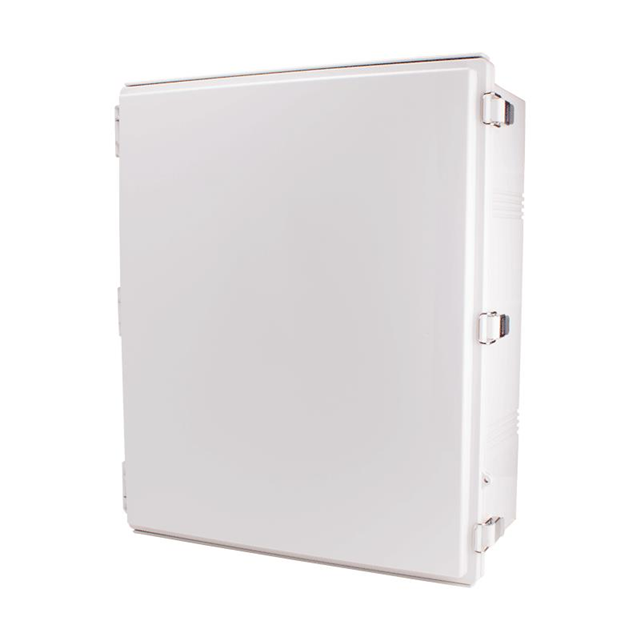

Boxco BC-AGP-506025			Box	ABS Plastic	Hinged Door Stainless Steel Latch	UL94 HB			20.866 in	24.803 "	630 mm	530 mm	3339 cm²	518 in²	Hinged Latches Lockable Mounting Brackets Sealing Gasket	Light Gray	6 IP66 IP67 NEMA 4X	0.177 in	4.5 mm	255 mm	10.039 in

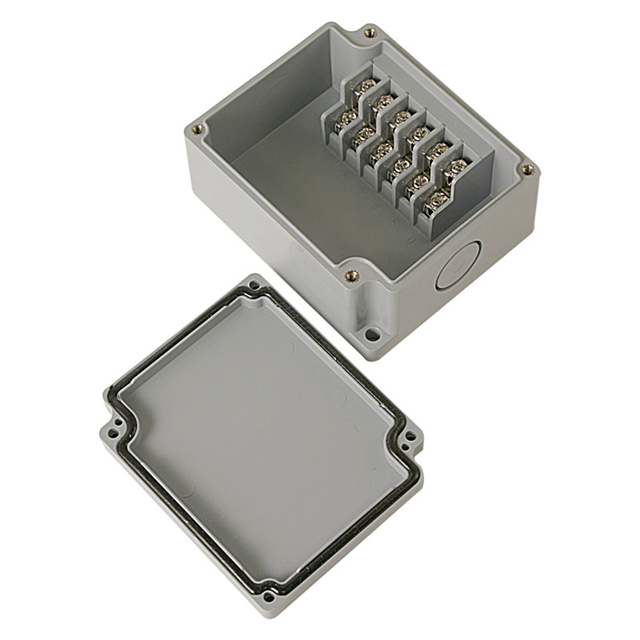

Boxco BC-ABB-6PT			Junction Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB			2.953 "	3.583 in	91 mm	75 mm	68 cm²	10.6 in²	Sealing Gasket	Grayish Blue	6 IP66 IP67 NEMA 4X			43 mm	1.693 in

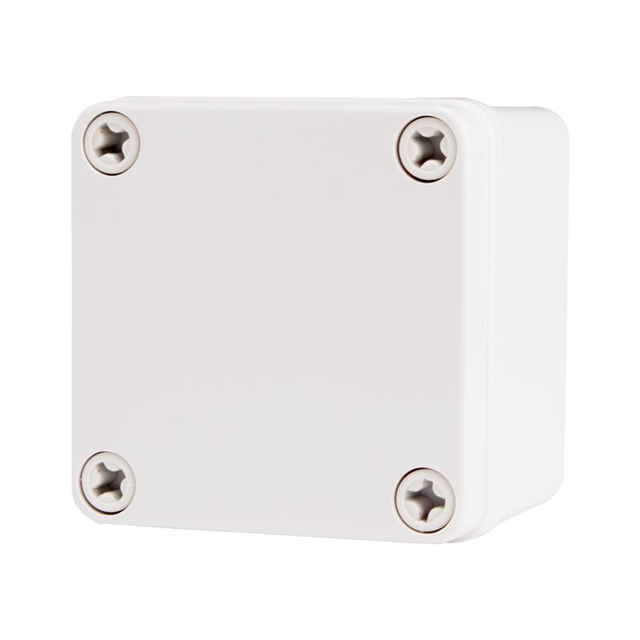

Boxco BC-AGS-080806	9.92 in²	64 cm²	Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB	60 mm	2.362 in	3.15 in	3.15 "	80 mm	80 mm			Sealing Gasket Wall Mount	Light Gray	6 IP66 IP67 NEMA 4X UL 508A

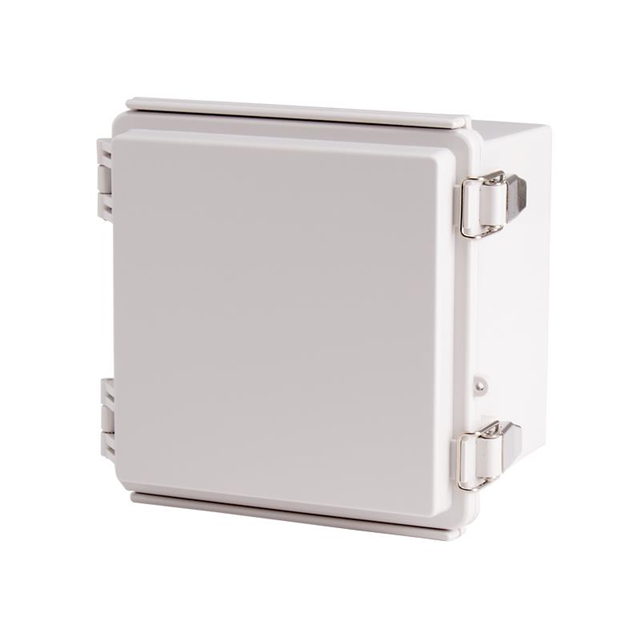

Boxco BC-AGP-151512	34.9 in˛	225 cm˛	Box	ABS Plastic	Hinged Door Stainless Steel Latch	UL94 HB			5.906 "	5.906 in	150 mm	150 mm	225 cm²	34.9 in²	Hinged Latches Lockable Sealing Gasket	Light Gray	6 IP66 IP67 NEMA 4X	3.2 mm				0.126 in

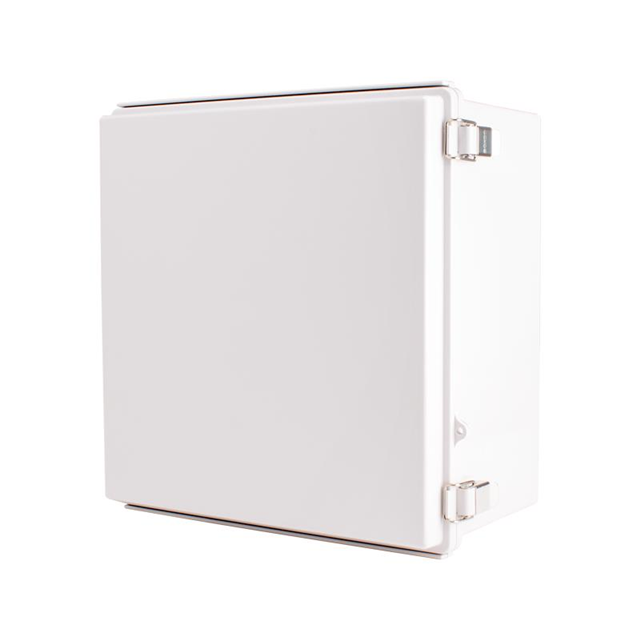

Boxco BC-AGP-353518			Box	ABS Plastic	Hinged Door Stainless Steel Latch	UL94 HB	180 mm	7.087 in	13.78 in	13.78 in	350 mm	350 mm	1225 cm²	190 in²	Hinged Latches Lockable Sealing Gasket	Light Gray	6 IP66 IP67 NEMA 4X	3.2 mm				0.126 in	1225 cm˛	190 in˛

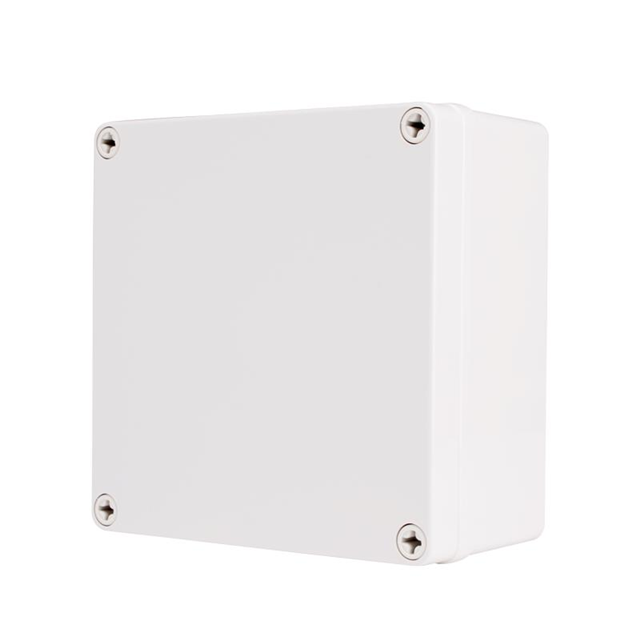

Boxco BC-AGS-151507	34.9 in˛	225 cm˛	Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB	75 mm	2.953 in	5.906 "	5.906 in	150 mm	150 mm	225 cm²	34.9 in²	Sealing Gasket Wall Mount	Light Gray	6 IP66 IP67 NEMA 4X UL 508A

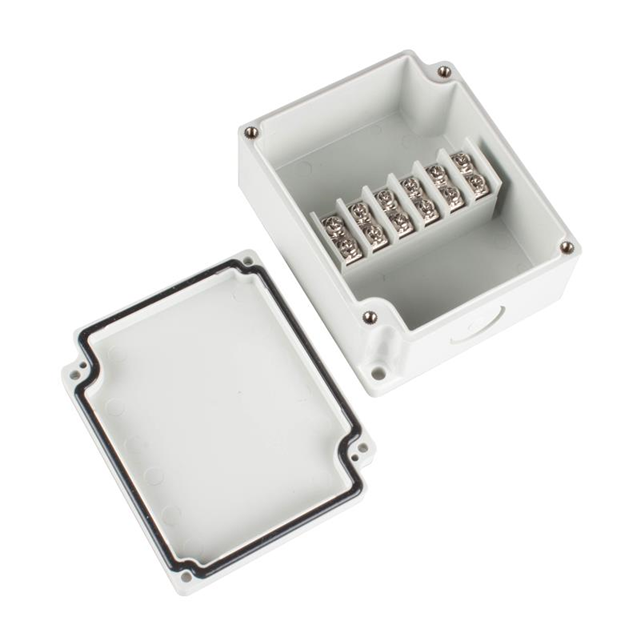

Boxco BC-AGG-6P			Junction Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB			2.953 "	3.583 in	91 mm	75 mm	68 cm²	10.6 in²	Sealing Gasket	Light Gray	6 IP66 IP67 NEMA 4X			43 mm	1.693 in

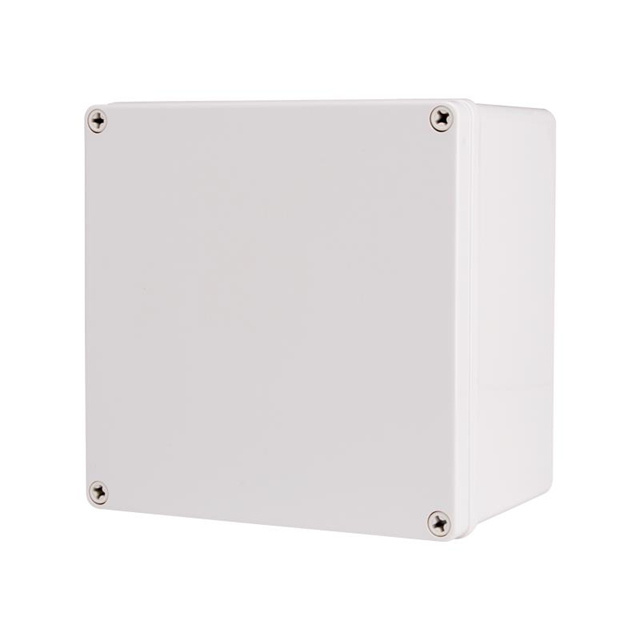

Boxco BC-AGS-202013			Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB		5.118 in	7.874 "	7.874 in	200 mm	200 mm	400 cm²	62 in²	Sealing Gasket Wall Mount	Light Gray	6 IP66 IP67 NEMA 4X UL 508A			130 mm

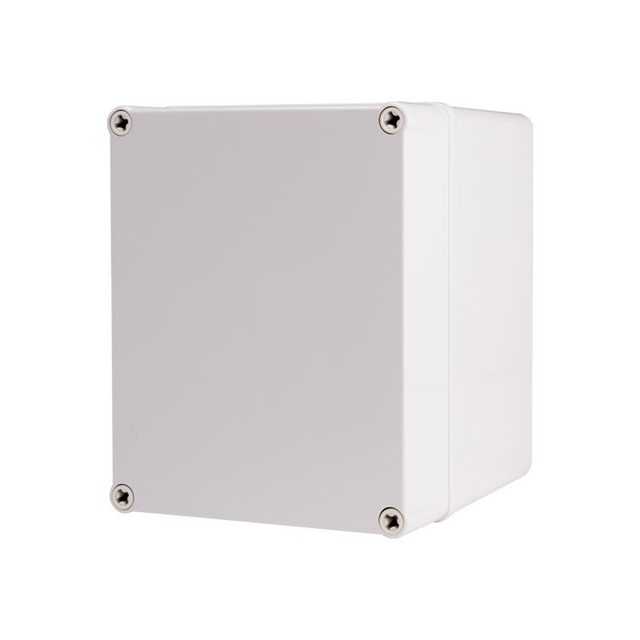

Boxco BC-AGS-141709			Box	ABS Plastic	Lift-Off Screw Cover	UL94 HB	95 mm	3.74 in					238 cm˛	36.9 in˛	Sealing Gasket Wall Mount	Light Gray	6 IP66 IP67 NEMA 4X UL 508A
