1838838 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

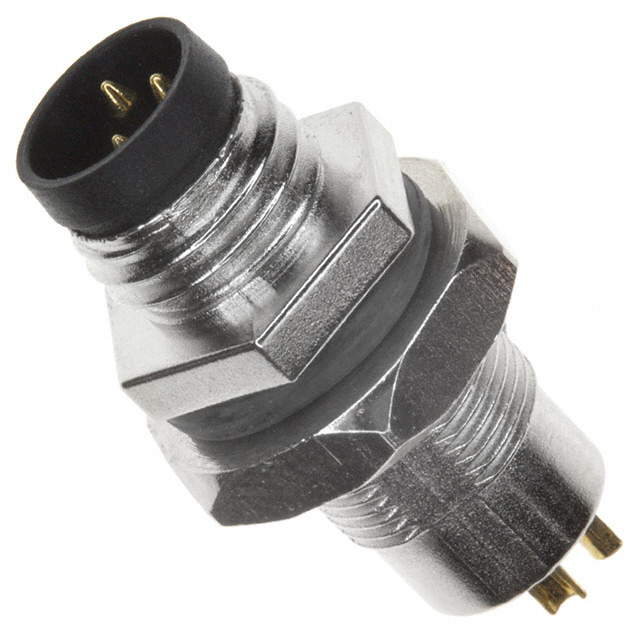

CONN PLUG MALE 3POS SOLDER CUP
| Part | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Voltage Rating | Applications | Contact Finish - Mating | Current Rating (Amps) | Shell Finish | Ingress Protection | Shell Material | Color | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Contact Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pins Plug | 0.15 µm | 5.9 µin | Bulkhead - Rear Side Nut | 60 VAC | Automation Control Industrial Telecommunications | Gold | 5 A | Nickel | IP67 - Dust Tight Waterproof | Zinc Die Cast | Silver | Polyamide (PA) Nylon Glass Filled | 90 °C | -25 °C | Metal | Brass | M8-3 |
