DRP048 Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 60W

Part	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Isolation	Applications	Efficiency	Number of Outputs	Input Type	Current - Output (Max) [Max]	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)
Delta Electronics DRP048V060W1BA	125	1.26 in	4.92 in	4.76 in	107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1	264 VAC	85 VAC	4000 V	ITE (Commercial)	92 %	1	AC	1.25 A	60 W	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	80 ¯C	48 V	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL

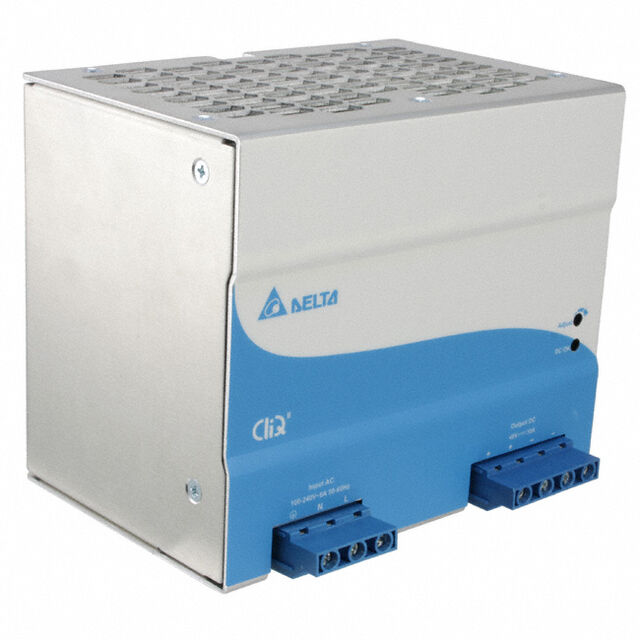

Delta Electronics DRP048V480W1BA		4.67 in	5.67 "	4.76 in	50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3	264 VAC	85 VAC	4000 V	ITE (Commercial)	93 %	1	AC	10 A	480 W	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	75 °C	48 V	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL	144 mm	121 mm	118.6 mm
Delta Electronics DRP048V060W1BN	125	1.26 in	4.92 in	4.76 in	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	264 VAC	85 VAC	4000 V	ITE (Commercial)	92 %	1	AC	1.25 A	60 W	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	80 ¯C	48 V	CB Scheme CE CSA EAC EN SIQ UL

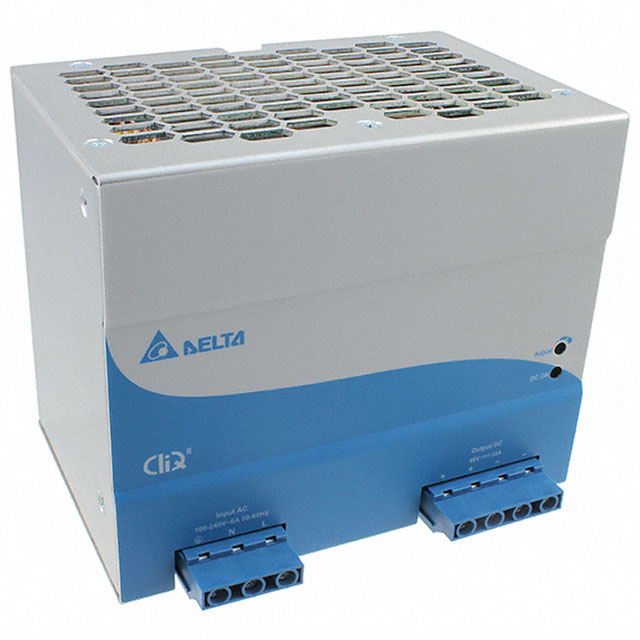

Delta Electronics DRP048V480W1BN		4.67 in	5.67 "	4.76 in	50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61000-6-3 61010-1 61204-3 61558-1 61558-2-16	264 VAC	85 VAC	4000 V	ITE (Commercial)	93 %	1	AC	10 A	480 W	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	75 °C	48 V	CB Scheme CE CSA EAC EN SIQ UL	144 mm	121 mm	118.6 mm
Delta Electronics DRP048V240W1BN		3.35 in	4.89 "	4.76 in	50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3	264 VAC	85 VAC	4000 V	ITE (Commercial)	92 %	1	AC		240 Watts	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	80 ¯C	48 V	CB Scheme CE CSA EAC EN SIQ UL	124.1 mm	121 mm	85 mm	5 A
Delta Electronics DRP048V120W1BN		1.97 in	4.85 in	4.76 in	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	264 VAC	85 VAC	4000 V	ITE (Commercial)	91 %	1	AC	2.5 A	120 W	Adjustable Output IP20 Load Sharing PFC Universal Input	-25 °C	80 ¯C	48 V	CB Scheme CE CSA EAC EN SIQ UL	123.1 mm	121 mm	50 mm
