MOVHE10 Series

Catalog

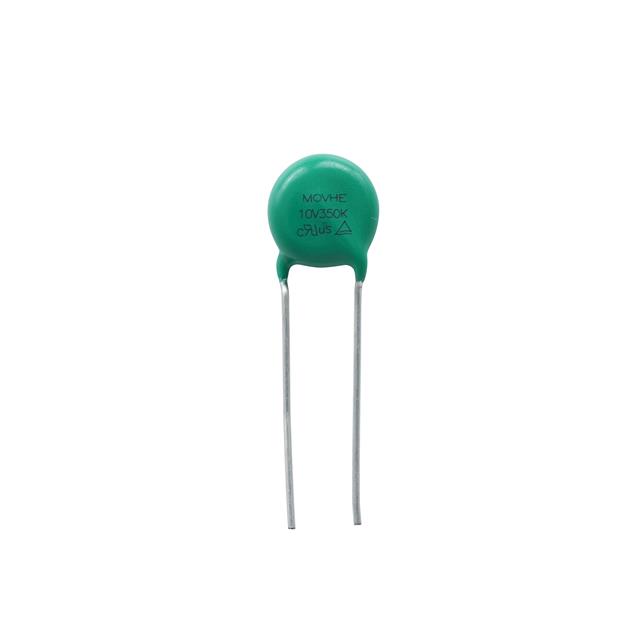

VARISTOR 140 VAC HE 10MM DISC

Part	Current - Surge	Mounting Type	Varistor Voltage (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Varistor Voltage (Typ)	Energy	Maximum AC Volts [Max]	Number of Circuits	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]
Eaton - Electronics Division MOVHE10V140Y	3.5 kA	Through Hole	242 V	125 °C	-40 °C	Disc 10mm	220 V	39 J	140 V	1	180 V	1 kHz 450 pF	198 V
Eaton - Electronics Division MOVHE10V175Y	3.5 kA	Through Hole		125 °C	-40 °C	Disc 10mm	270 V	49 J	175 V	1	225 V	1 kHz 370 pF	243 V	297 V
Eaton - Electronics Division MOVHE10V420Y-AP	3.5 kA	Through Hole		125 °C	-40 °C	Disc 10mm	680 V	98 J	420 V	1	560 V	150 pF	612 V	748 V
Eaton - Electronics Division MOVHE10V150Y-AP	3.5 kA	Through Hole		125 °C	-40 °C	Disc 10mm	240 V	42 J	150 V	1	200 V	1 kHz 420 pF	216 V	264 V
Eaton - Electronics Division MOVHE10V130Y	3.5 kA	Through Hole		125 °C	-40 °C	Disc 10mm	200 V	35 J	130 V	1	170 V	1 kHz 500 pF	180 V	220 V
